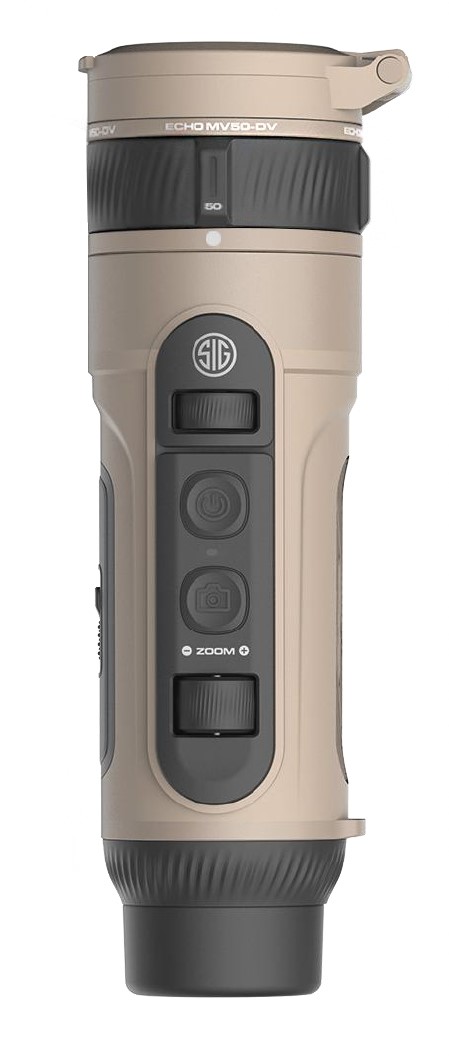

SIG ECHO MV50-DV Thermal Monocular 1.5-24x 50mm

Description

The SIG ECHO MV50-DV is a compact thermal monocular designed for versatile observation and situational awareness in low- and no-light conditions. It uses an LWIR thermal core to deliver a clear 640×512 image at 50 Hz and supports a wide digital zoom range for close inspection or broader scanning. The unit features Dual View operation, onboard recording of stills and video with audio, and wireless integration via SIG Sauer BDX 2.0. Power is provided by an internal reserve cell plus removable 18500 batteries for extended field use.

Key Specifications

• The thermal core is a LWIR 640×512 VGA, 12 µm, 50 Hz unit with <20mK sensitivity.
• Optical/digital magnification is 1.5-24x digital zoom for variable observation ranges.
• The objective lens is 50mm.
• The unit records still photos and video with audio for documentation and review.
• Wireless connectivity is BDX 2.0 enabled for app integration and data sharing.
• Power configuration includes an internal reserve cell and (2) 18500 rechargeable lithium-ion batteries included.
• Typical runtime is 10 hours under normal operating conditions.
• Finish and color are Flat Dark Earth.
• The unit weighs 21.2 oz as listed in the product attributes.
• Key user features include Dual View and 8 selectable color palettes for flexible observation modes.

Engineered for reliable performance in demanding conditions, the ECHO MV50-DV brings high-resolution thermal imaging, long runtime, and convenient recording features into a compact package. Its Dual View capability and app-enabled connectivity make it useful for extended fieldwork, wildlife observation, and professional documentation tasks where clear thermal imaging and data capture are priorities.
