Description

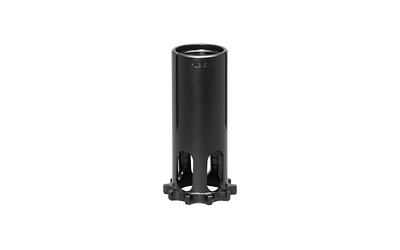

One of the best things about SilencerCo's piston-driven suppressors is how easy they are to move between guns, and this AC30 piston is the piece that makes it happen for 5/8×24 threaded barrels. It drops into the Osprey, Octane, Hybrid, and Omega 9K, giving you a female 5/8×24 interface that threads right onto your host muzzle. That thread pitch is the common standard for .30 caliber barrels, so this is the piston to grab if you want to run your pistol can on something like a 300 Blackout host.
Built Like Every SilencerCo Piston Should Be
SilencerCo machines these from 17-4 stainless steel and heat treats them for durability, which matters on a part that lives at the muzzle and takes heat, carbon, and blast every time you pull the trigger. The natural stainless finish cleans up easily, and at just over two inches long it tucks into the booster assembly without adding meaningful bulk to your setup.
Quick Tip on Running the 5/8×24 Piston
Since 5/8×24 is almost always a rifle thread, you'll typically be mounting on a fixed barrel rather than a tilting pistol barrel. In that case, pair this piston with a fixed barrel spacer inside the booster assembly. The spacer locks out the recoil spring so the can stays put instead of cycling, which is exactly what you want on a fixed-barrel host. Installation is simple either way: unscrew the piston housing, swap pistons, reassemble, and you're back on the range.
Why Keep an AC30 in Your Range Bag
A multi-caliber suppressor is only as versatile as the mounts you own for it. Picking up this piston is a cheap way to stretch one tax stamp across more of your safe, and it's the kind of part you buy once and use for years. Fit and machining are what you'd expect from SilencerCo, and swaps between hosts take less than a minute.
Key Specifications
- Manufacturer: SilencerCo
- Manufacturer Part Number: AC30
- UPC: 817272010206
- Product Type: Nielsen Device Piston
- Thread Pattern: 5/8×24 RH (female)
- Material: 17-4 Stainless Steel, Heat Treated
- Finish: Natural Stainless
- Caliber Compatibility: .30 Caliber (5/8×24 threaded barrels)
- Suppressor Compatibility: SilencerCo Osprey, Octane, Hybrid, Omega 9K
- Length: 2.1 in
- Weight: 0.08 lb
What’s Included
- SilencerCo AC30 5/8×24 piston
Frequently Asked Questions
Which suppressors does the SilencerCo 5/8×24 piston fit?
This AC30 piston works with SilencerCo's piston-driven cans, including the Osprey, Octane, Hybrid, and Omega 9K. It drops into the standard SilencerCo booster assembly, so if your suppressor already runs SilencerCo pistons, this one will swap right in. It is not made for direct-thread rifle cans like the Omega 300.
Do I need a fixed barrel spacer with the 5/8×24 piston?
In most cases, yes. The 5/8×24 thread pitch is found almost exclusively on fixed rifle barrels, and a fixed barrel spacer locks out the booster spring so the suppressor doesn't try to cycle. Without it, you can get inconsistent lockup on a fixed-barrel host. The spacer is sold separately, so plan on grabbing one if you don't already have it.
How do I install the AC30 piston in my suppressor?
Unscrew the piston housing from the rear of the suppressor, remove the existing piston, and drop this one in its place. Reassemble the housing, thread the can onto your barrel, and confirm everything is snug before shooting. The whole swap takes under a minute with no special tools, though a piston wrench makes it easier if things are carbon-locked.
What guns pair well with this SilencerCo Osprey/Octane piston?
The 5/8×24 pattern is the go-to thread for .30 caliber rifle barrels, so 300 Blackout hosts are the most common pairing with a pistol-caliber-rated can like the Hybrid. Just make sure your specific suppressor is rated for the cartridge you plan to shoot through it, since bore diameter and pressure ratings vary between models. Check your suppressor's caliber ratings before running rifle rounds.
