SilencerCo ASR Muzzle Brake 1/2×28 .223/5.56 3-Port QD Mount AC142

UPC: 817272010336

$79.90

Out of stock

Online inventory may differ from in-store availability.

Fast Shipping

Quick turnaround so you get your gear sooner.

Secure FFL-Friendly Checkout

Trusted checkout with industry-standard protection.

Family-Owned Business

Keeping Traditions Alive Since 1953

Secure Transactions provided with

Description

There are muzzle brakes, and then there are muzzle brakes that earn their spot on the barrel twice over. The SilencerCo ASR Muzzle Brake in 1/2×28 is the second kind. Run it bare and the three-port design vents gas to fight felt recoil and muzzle climb on your .223 or 5.56 rifle, keeping the sights settled for faster follow-ups. Slip a SilencerCo ASR-mount suppressor over the top and it becomes your quick-detach interface, with a one-hand-on, one-hand-off motion that takes seconds instead of a wrench and a prayer.

Why the ASR Brake Makes Sense on a 5.56 Build

If you own or plan to own a SilencerCo can, this is the smart way to set up a host rifle. The ASR system works with a wide range of the company's lineup, including the Omega 300, Omega 36M, Saker ASR series, Chimera 300, Hybrid 46M, and more through the Alpha, Bravo, and Charlie mounts. Buy a brake for each rifle in the safe and one suppressor can hop between all of them without retorquing anything. The lockup is repeatable too, so your point of impact stays consistent when the can comes on and off.

Built to Take the Heat

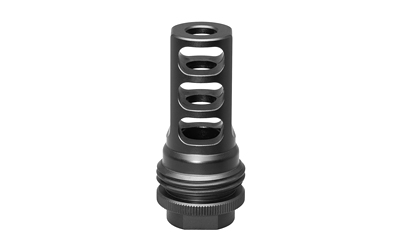

The brake is machined from steel with a black finish, measures about 2.4 inches long, and weighs next to nothing on the end of a barrel. Part number AC142 covers the .223/5.56 bore with 1/2×28 threads, which fits the vast majority of AR-15 barrels straight from the factory.

Installing the SilencerCo ASR Muzzle Brake

SilencerCo includes a shim set and Rocksett in the package, so timing the ports is straightforward. Stack shims until the brake indexes correctly, apply the Rocksett, torque it down, and you are set. No crush washers to fuss with and no gunsmith visit required for most builds. It is a simple upgrade that leaves your rifle ready for suppressed shooting whenever you are.

Key Specifications

  • Manufacturer: SilencerCo
  • Model: ASR Muzzle Brake
  • Manufacturer Part Number: AC142
  • UPC: 817272010336
  • Caliber: .223 Rem / 5.56 NATO
  • Thread Pattern: 1/2×28
  • Port Design: 3-Port
  • Material: Steel
  • Finish: Black
  • Length: 2.4 in
  • Weight: 0.25 lb
  • Mount Compatibility: SilencerCo ASR mounting system (Alpha, Bravo, Charlie)

What’s Included

  • SilencerCo ASR Muzzle Brake (1/2×28, .223/5.56)
  • Shim set
  • Rocksett thread adhesive

Frequently Asked Questions

Which SilencerCo suppressors work with the ASR Muzzle Brake?

It serves as the host-side mount for SilencerCo's ASR system, which covers cans like the Omega 300, Omega 36M, Saker ASR series, Chimera 300, Hybrid 46M, and Harvester Big Bore. Match your suppressor to the correct Alpha, Bravo, or Charlie ASR mount and it locks right over this brake. Several of those suppressors ship with an ASR mount already included.

Will the AC142 fit my AR-15 barrel?

If your barrel is threaded 1/2×28, which is the standard for most .223 and 5.56 AR-15 barrels, this brake threads right on. Just confirm your thread pitch before ordering. SilencerCo makes the ASR brake in other pitches and bores if your barrel runs something different.

Does the ASR Muzzle Brake work without a suppressor attached?

Yes, and it does its job well as a standalone brake. The three-port design redirects gas to cut felt recoil and keep the muzzle flatter during rapid strings. Running it bare between suppressed sessions is exactly how it was designed to be used.

How do I install the SilencerCo ASR brake?

The package includes a shim set and Rocksett, so you use the shims to time the ports correctly rather than a crush washer. Stack shims until the brake indexes at proper torque, apply the Rocksett, and tighten it down. Most folks with basic tools can handle it at the bench in one sitting.

Additional information

UPC

817272010336

Manufacturer

Manufacturer Part Number

AC142

Caliber/Gauge

.22 Caliber

Color

Black

Length

2.4

Model

Package Height

1.1

Package Width

6.6

Product Type

Muzzle Brake

Shipping Weight

0.25

Thread Pattern

1/2"x28
