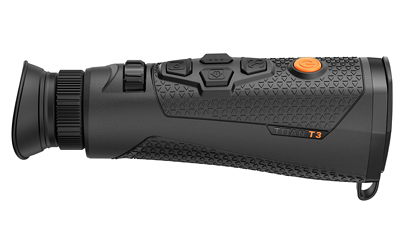

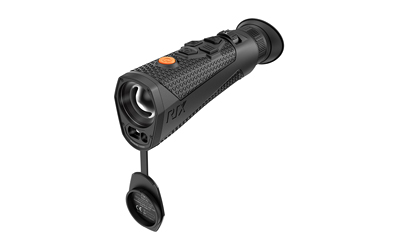

Rix Optics Titan T3 Thermal LRF Monocular 384×288 25mm

Description

The Rix Optics Titan T3 is a handheld thermal imaging monocular with an integrated laser rangefinder and digital recording. It employs a VOx uncooled sensor at a 384×288 resolution paired with a 25mm objective to deliver thermal observation and distance measurement for field use. The unit includes an OLED display and built-in Wi‑Fi for image transfer and app connectivity. The housing is rated to IP67 for resistance to water and dust.

Key Specifications

• The sensor type is VOx uncooled for thermal detection.
• The detector resolution is 384×288 pixels.
• The pixel pitch is 12 µm.
• The thermal sensitivity (NETD) is <20 mK.
• The frame rate is 50 Hz.
• The objective lens measures 25 mm.
• The horizontal field of view is 10.5° (equivalent 20.1 yd @100 yd).
• The maximum detection range is 1299 m / 1421 yd.
• The display is an OLED, 1920×1080 pixels, 0.49 inch.
• The integrated laser rangefinder measures to 1200 m / 1312 yd with an accuracy of ±1 m / ±1.1 yd.

Compact and feature-rich, the Titan T3 is built for practical field observation and measurement. Its thermal sensor and integrated rangefinder simplify target detection and distance assessment, while onboard recording and Wi‑Fi let you capture and share imagery. Robust environmental sealing and a rechargeable battery system make it suitable for mobile use in varied conditions, providing a capable tool for daytime and nighttime observation tasks.
