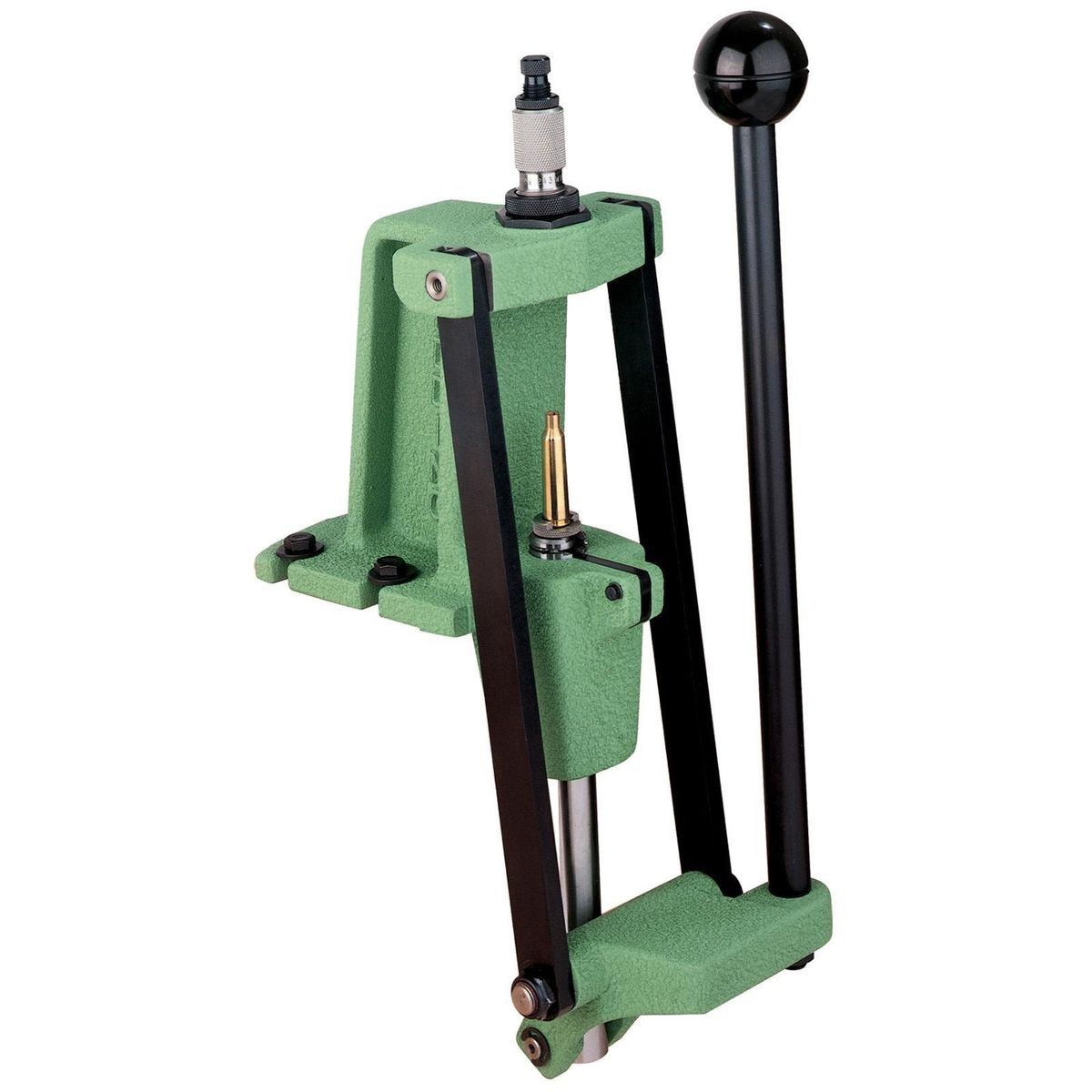

Redding UltraMag Single Stage Reloading Press – Model 700 (70000)

UPC: 611760700002

$427.99

1 in stock

Online inventory may differ from in-store availability.

Fast Shipping

Quick turnaround so you get your gear sooner.

Secure FFL-Friendly Checkout

Trusted checkout with industry-standard protection.

Family-Owned Business

Keeping Traditions Alive Since 1953

Secure Transactions provided with

Description

The Redding UltraMag earns its name. This is the largest and strongest single-stage press Redding builds, aimed squarely at handloaders who work with the big stuff. What sets it apart from everything else on the bench is where the compound leverage system lives: it connects to the top of the press frame instead of the bottom like most presses. That design lets you generate tons of pressure without the frame flex or case misalignment you get when a press is working against itself.

What Makes the UltraMag Press Different

The numbers tell the story. A 4-3/4 inch frame opening and 4-1/8 inches of usable ram stroke give you room to work with cartridges most presses simply can't accept. That means it handles the long magnums with ease, from the belted H&H family and Weatherby rounds all the way out to historic Sharps buffalo cartridges and British Nitro Express loads. If you shoot anything oversized, this is the press that doesn't blink.

Everything about the build is heavy-duty. The frame is high-grade cast iron for strength and long life, mounted down with four bolt holes for a rock-solid setup. All the linkage pins are heat treated, precision ground, and run in double shear, so the leverage system stays smooth and tight over years of use. The offset handle keeps your hand clear during every operation, which you'll appreciate when you're running a long session.

Dies and Priming on the Redding UltraMag

The press accepts all standard 7/8-14 threaded dies through a removable steel adapter bushing. Pull that bushing and the frame opens up to 1-1/4 x 12 threads for oversized dies, and there's an optional 1-14 bushing available if you run Redding Z-Series dies. The "Smart" primer arm swings into position automatically with the ram stroke and flips out of the way when you don't need it. Spent primers drop straight down through the hollow ram into a collection tube, so your bench stays clean through a whole run of brass.

Reloaders who pick one up tend to be surprised by the sheer heft and how smooth it runs once it's bolted down. It's the kind of tool you buy once and hand down.

Key Specifications

  • Manufacturer: Redding
  • Model: 700 UltraMag
  • Manufacturer Part Number: 70000
  • UPC: 611760700002
  • Press Type: Single Stage
  • Frame Material: High-Grade Cast Iron and Steel
  • Frame Design: C-Frame
  • Frame Opening Size: 4-3/4 inches
  • Usable Ram Stroke: 4-1/8 inches
  • Die Size Accepted: 7/8-14 with adapter; 1-1/4 x 12 with adapter removed; optional 1-14 bushing (sold separately)
  • Priming Feature: "Smart" primer arm with large and small primer arm assemblies included
  • Spent Primer Collection: Built-in, routes through hollow ram to catch tube
  • Handle Location: Bottom right, offset
  • Mounting Holes: 4
  • Country of Origin: United States
  • Shipping Weight: 26.2 lbs

What’s Included

  • Redding UltraMag single stage press
  • Steel 7/8-14 die adapter bushing (installed)
  • Large primer arm assembly
  • Small primer arm assembly
  • Spent primer catch tube

Frequently Asked Questions

What cartridges can the Redding UltraMag handle?

The UltraMag was built for oversized and long magnum cartridges thanks to its 4-3/4 inch frame opening and 4-1/8 inch usable ram stroke. It easily handles belted magnums like the H&H family, Weatherby rounds, and the Ultra Mags, plus historic Sharps buffalo cartridges and British Nitro Express loads. It also works just fine for standard rifle and handgun cartridges, so it isn't limited to only the big stuff.

Does the Redding UltraMag press use standard dies?

Yes. It comes with a removable steel adapter bushing that accepts all standard 7/8-14 threaded dies, so your existing dies will thread right in. Remove the bushing and the frame accepts 1-1/4 x 12 oversized dies, and an optional 1-14 bushing is available separately for Redding Z-Series dies.

What makes the UltraMag's leverage system different?

Most presses connect the linkage to the lower half of the frame, but the UltraMag's compound leverage system attaches to the top of the press frame. This lets you develop tons of pressure without the frame deflection or case misalignment you'd otherwise fight. It's the reason this press can full-length size large magnum brass with far less effort.

Does the Redding UltraMag come with primer arms?

It ships with both large and small primer arm assemblies, so you're set up for either primer size right out of the box. The "Smart" primer arm automatically swings into position during the ram stroke and flips out of the way when not in use. Spent primers drop through the hollow ram into the included catch tube to keep your bench clean.

Additional information

UPC

611760700002

Manufacturer

Manufacturer Part Number

70000

Shipping Weight

26.2188
