Description

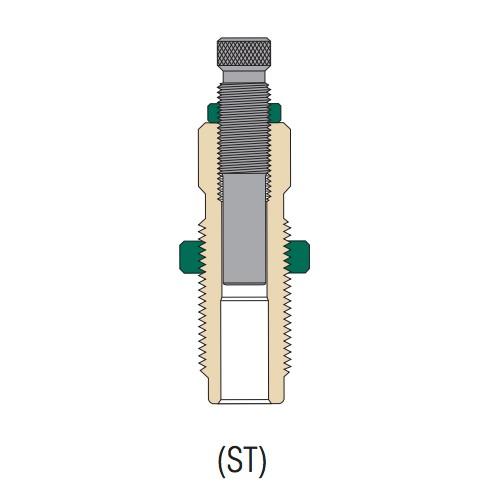

The Redding Series C Seating Die for .450 Bushmaster is built for folks running straight-wall brass through their AR platforms and bolt guns. It handles the seating step with the kind of precision Redding is known for, machined from quality alloy and hand polished so it cycles smooth and keeps your loaded rounds concentric. If you're feeding a .450 Bushmaster upper or a bolt gun, this is the die that gets the bullet set to the depth you want without chewing up your case necks.
What Sets the Series C Seating Die Apart
This is a molded seating die with a separate rear punch that supports the case body up to the shoulder during seating. That approach is the preferred method for setting military and target bullets, and it pays off with better long-term accuracy and less runout. Because both the pilot and the seating stem sit on the same side of the case neck, the die cycles cleanly and keeps everything aligned. There's also less friction at work, so the case seats to the limit of the neck rather than dragging through the full length.
Crimping With Your .450 Bushmaster Die
When a crimp is called for, the expander ball moves to the rear and the bullet backs out the rest of the way. The .450 Bushmaster headspaces off the case mouth, so many reloaders run a light taper crimp or a dedicated crimp die to keep neck tension honest, especially since most .452 bullets don't have a cannelure. Keep that in mind when you build your bench setup and you'll get consistent, dependable ammo.
Fitment and Setup
The die uses the industry-standard 7/8-14 thread, so it threads right into any standard single-stage or turret press. It's designed around the .452 diameter projectiles the .450 Bushmaster runs. This is a seating die sold on its own, which makes it a natural fit for reloaders who want to pair it with a Redding sizing and expander die to round out a full straight-wall setup. Made in the USA, like the rest of the Redding line.
Key Specifications
- Manufacturer: Redding
- Series: Series C Seating Die
- Caliber: .450 Bushmaster
- Bullet Diameter: .452 in
- Die Type: Bullet Seating Die (for straight-wall cases)
- Thread Size: 7/8-14
- Crimp: Built-in crimp option (expander ball moves to rear)
- Material: Alloy, hand polished
- Country of Origin: USA
- Manufacturer Part Number: 92781
- UPC: 611760927812
- Shipping Weight: 0.52 lb
What’s Included
- Redding Series C Seating Die (.450 Bushmaster)
- Seating stem / bullet guide
- Lock ring
Frequently Asked Questions
Does the Redding Series C seating die come as a full die set?
No, this is the seating die sold by itself. It's a common pick for reloaders who want to build out a complete .450 Bushmaster setup by pairing it with a Redding sizing die and expander die. Buying the seating die solo also lets you match it to the rest of your bench however you like.
What press does this .450 Bushmaster die fit?
It uses the industry-standard 7/8-14 thread, so it threads into virtually any standard single-stage or turret reloading press. You will want the correct shell holder for the .450 Bushmaster case head, which is sold separately. No special adapters are needed.
Can this die crimp as well as seat?
Yes, it has a built-in crimp function. When a crimp is needed, the expander ball is moved to the rear and the bullet is backed the rest of the way out. Many .450 Bushmaster handloaders prefer a light taper crimp since the cartridge headspaces off the case mouth, so some reloaders choose a dedicated crimp die for finer control over neck tension.
Why choose the Series C design for straight-wall cases?
The Series C uses a separate rear punch that supports the case body up to the shoulder during seating, which is the preferred method for seating military and target bullets. With the pilot and seating stem on the same side of the case neck, the die cycles smoothly and keeps rounds concentric. The result is consistent seating depth with less wear on the case neck.
