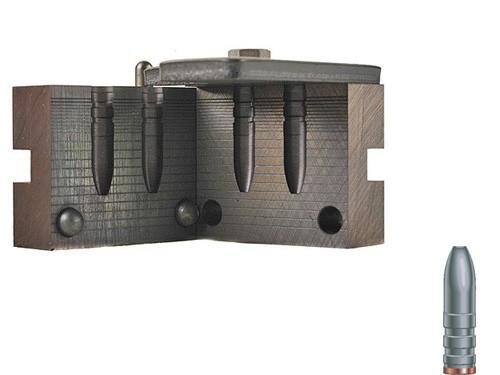

RCBS 257-120-SP .258″ 120 gr Soft Point Bullet Mould, 2-Cavity

UPC: 076683820167

$138.99

1 in stock

Online inventory may differ from in-store availability.

Fast Shipping

Quick turnaround so you get your gear sooner.

Secure FFL-Friendly Checkout

Trusted checkout with industry-standard protection.

Family-Owned Business

Keeping Traditions Alive Since 1953

Secure Transactions provided with

Description

If you shoot a .25-caliber rifle and want to take your reloading all the way back to the raw lead, the RCBS 257-120-SP mould is one of the few production moulds still making a semi-pointed .258" bullet. It drops a 120-grain gas-check design that's a longtime favorite with .257 Roberts, .25-06 and other quarter-bore owners who like casting their own practice and small-game loads. The two cavities let you pour a matched pair of bullets with every cast, which adds up fast when you're filling a loading block.

What Makes the 257-120-SP Mould Tick

RCBS machines these blocks from solid cast iron ground precision-square before any cavities are cut, so the halves mate cleanly and stay that way through years of use. Hardened steel alignment pins keep everything lined up pour after pour, and a 3/16-inch solid steel sprue plate held down by tempered spring washers gives you a clean, square cut off every bullet base. It's the kind of build that holds its tolerances long after a lot of other moulds have gone soft.

Casting With the .258" 120-Grain Soft Point

The bullet itself runs right around 1.02" long with a short nose, and it's designed to take a gas check at the base. Casters report it fills out nicely and runs easy at the pot, with .25-06 and Roberts shooters getting tight groups at modest cast-bullet velocities. Plan on sizing to fit your bore and adding a gas check before loading. This mould uses the #515 top punch in a Lube-A-Matic sizer, which is worth noting since the punch and sizer die are separate purchases.

A Few Things to Know Before You Order

Like all RCBS moulds, the handles are sold separately, so if you don't already have a set of RCBS mould handles you'll want to add those to run it. The mould ships as the block and sprue plate assembly with its hardware. Pair it with the right .258" sizer die and top punch and you've got a complete setup for turning wheel weights and lead into shootable .25-caliber bullets.

Key Specifications

  • Manufacturer: RCBS
  • Manufacturer Part Number: 82016
  • Designation: 257-120-SP
  • UPC: 076683820167
  • Caliber: .25 Caliber / .257
  • Nominal Bullet Diameter: .258"
  • Bullet Weight: 120 grain
  • Bullet Type: Soft Point / Semi-Point
  • Number of Cavities: 2 (Double Cavity)
  • Gas Check: Required
  • Top Punch: #515
  • Block Material: Solid Cast Iron
  • Sprue Plate: 3/16" Solid Steel
  • Approx. Bullet Length: 1.02"
  • Handles: Sold Separately
  • Shipping Weight: 0.9875 lb

What’s Included

  • RCBS 257-120-SP double-cavity bullet mould block
  • Steel sprue plate with mounting hardware and spring washers

Frequently Asked Questions

Do the handles come with the RCBS 257-120-SP mould?

No. Like all RCBS bullet moulds, the handles are sold separately. If you don't already own a set of RCBS mould handles, you'll need to add those to actually run the mould at the pot.

What caliber rifles is this .258" 120-grain bullet used for?

This mould drops a .258" nominal diameter bullet that's popular with .25-caliber rifle owners, including the .257 Roberts and .25-06. Shooters often use it for practice loads and small to medium game, sizing the bullet to fit their specific bore.

Does the 257-120-SP bullet require a gas check?

Yes, this design is made to take a gas check at the base, so plan on adding one before loading. You'll also want to size the cast bullets to fit your rifle's bore for best results.

Which top punch and sizer die do I need with this mould?

The 257-120-SP uses the #515 top punch in an RCBS Lube-A-Matic sizer. Both the top punch and the .258" sizer die are separate purchases, so make sure you have the matching pieces to complete your setup.
