RCBS Full Length Die Set – 416 Rigby (Group D) 2-Die, MPN 22801

UPC: 076683228017

$96.99

1 in stock

Online inventory may differ from in-store availability.

Fast Shipping

Quick turnaround so you get your gear sooner.

Secure FFL-Friendly Checkout

Trusted checkout with industry-standard protection.

Family-Owned Business

Keeping Traditions Alive Since 1953

Secure Transactions provided with

Description

Running a .416 Rigby means you are already feeding a serious dangerous-game rifle, and brass that pricey deserves dies that treat it right. This RCBS Group D set covers the two operations that matter most for that fat bottleneck case: full-length resizing and bullet seating. The sizer brings fired brass back to SAAMI minimum dimensions, deprimes it, and expands the neck in a single pull, while the seater sets your bullet to depth with a built-in roll crimp to lock it in place.

What the 416 Rigby Die Set Brings to the Bench

The full-length sizer is vented, so trapped air and excess case lube get a path to escape instead of denting or buckling your brass during the stroke. RCBS holds headspace to tight tolerances so the case body length stays consistent sizing after sizing, which keeps your rounds chambering smoothly in a rifle you really do not want to fumble with in the field. The inside surfaces are precision machined and finished to pull brass back out clean without scratching.

How the 416 Rigby Full Length Set Fits Your Press

Both dies use the standard 7/8"-14 thread, so they thread into pretty much any common single-stage or turret press without adapters. The set is made from RCBS proprietary die steel and ships in the familiar green die box ready to set up. One thing worth noting is that a shell holder is not included, so grab the correct holder for the .416 Rigby rim if you do not already have one on the bench.

A Set Built for Big-Bore Handloaders

The .416 Rigby is not a factory-ammo-on-every-shelf cartridge, which is exactly why handloading it makes so much sense. Rolling your own lets you dial in loads for buffalo, elephant, or plinking at the range without hunting down scarce boxes. This set gives you the sizing and seating backbone to do it, and pairs naturally with a quality powder measure, scale, and case prep gear you likely already run for your other calibers.

Key Specifications

  • Manufacturer: RCBS
  • Manufacturer Part Number: 22801
  • UPC: 076683228017
  • Caliber: 416 Rigby
  • Product Type: Full Length Die Set
  • Die Group: Group D
  • Dies in Set: 2
  • Thread Size: 7/8"-14
  • Carbide: No
  • Case Type: Bottleneck Rifle
  • Material: Proprietary Die Steel
  • Length: 5.95 in
  • Shipping Weight: 1.4 lbs

What’s Included

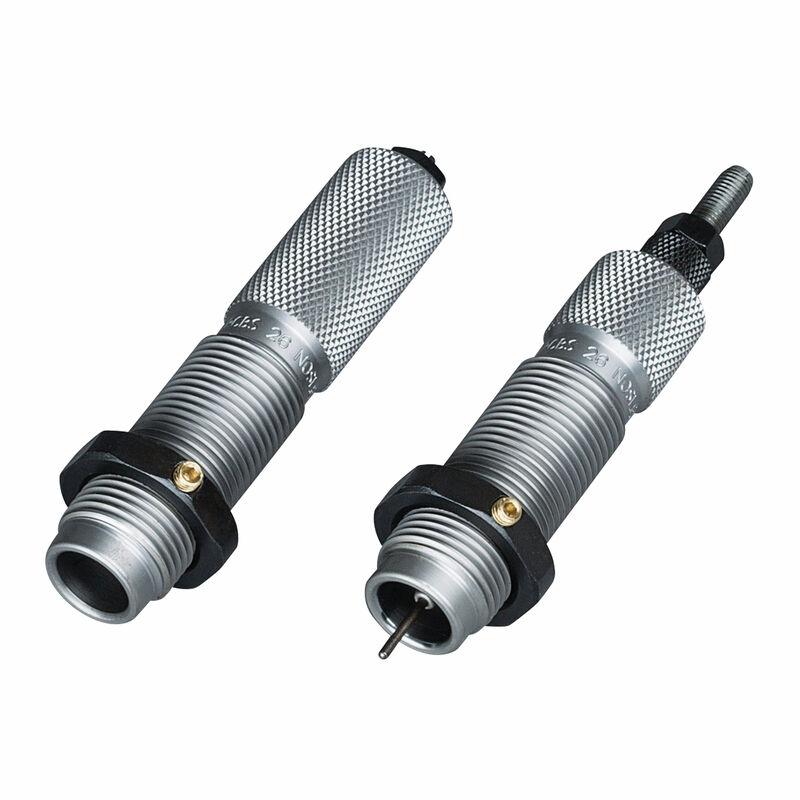

  • Full-Length Sizer Die with Expander-Decapping Unit
  • Seater Die with Bullet Seater Plug
  • Green die storage box

Frequently Asked Questions

Does this 416 Rigby die set include a shell holder?

No, the shell holder is sold separately. You will need the correct RCBS shell holder sized for the .416 Rigby rim to run these dies. If you reload other cartridges you may already have a compatible holder, but double-check the fit before your first session.

Will the RCBS 416 Rigby dies fit my press?

Both dies use the standard 7/8"-14 thread, so they fit most common single-stage and turret presses. Keep in mind the .416 Rigby is a long, large-diameter case, so make sure your press has enough frame opening and ram travel to handle it.

Can the seater die crimp while it seats?

Yes, the included seater die has a built-in roll crimper that secures the bullet at the same time it seats to your chosen depth. You can also back the die off to seat without crimping if you prefer to do it as a separate step. Roll crimping is handy for a heavy-recoiling cartridge like the .416 Rigby where you want to prevent bullet setback.

What does the full-length sizer do to my brass?

The full-length sizer brings fired cases back to SAAMI minimum dimensions, resizing the case body, depriming it, and expanding the neck to accept the next bullet. It is vented to prevent damage from trapped air or excess lube, and RCBS holds headspace to tight tolerances to keep case body length consistent. That consistency helps your reloads chamber reliably in your rifle.

Additional information

UPC

076683228017

Manufacturer

Manufacturer Part Number

22801

Caliber/Gauge

416 Rigby

Length

5.9500

Product Type

FULL LENGTH

Shipping Weight

1.4
