Radian Weapons Forward Assist – 7075 Aluminum, Black Anodized AR-15

UPC: 817093021733

$44.95

16 in stock

Online inventory may differ from in-store availability.

Fast Shipping

Quick turnaround so you get your gear sooner.

Secure FFL-Friendly Checkout

Trusted checkout with industry-standard protection.

Family-Owned Business

Keeping Traditions Alive Since 1953

Secure Transactions provided with

Description

The forward assist is one of those AR-15 parts most builders never think twice about, and that is exactly why the Radian Weapons Forward Assist is a fun little upgrade. Instead of the usual chunk of steel, Radian machines this one from 7075 aluminum and finishes it in a matte black hard anodize. The result is a part that weighs right around 10 grams, roughly half the weight of a standard Mil-Spec unit. On its own that sounds small, but ounce-shaving is how ultralight builds come together, and every bit up front adds up.

What the Radian Forward Assist Brings to Your Upper

The standout feature here is the enlarged, snag-free button. It gives your thumb more surface to press against, so when you do need to seat a bolt after a slow chamber or a bit of grit gets in the way, you get clean, positive contact. Radian also works the Radian logo right into the button face, which is a nice touch if you appreciate details on a clean build. The hard anodized coating handles wear and corrosion and blends in seamlessly with a black anodized receiver.

Fit and Installation on the Radian 7075 Forward Assist

This is a direct-fit part that drops into any Mil-Spec AR-15 upper, forged or billet, and it matches standard forward assist dimensions exactly. Builders have confirmed it works across AR-15 and AR-10 style receivers since the pocket is the same. The kit includes the forward assist, the main spring, and the retention roll pin, so you have what you need to complete a stripped upper or swap out a worn factory piece. You will want a 3/32 pin punch to drive out an existing roll pin, plus a punch or vice grips to press the new pin back in.

Radian has built a strong reputation on the AR platform, from Raptor charging handles to their ambi safeties, and this forward assist carries the same tight-tolerance machining. It is a straightforward way to lighten and dress up an upper receiver without overthinking it.

Key Specifications

  • Manufacturer: Radian Weapons
  • Manufacturer Part Number: R0231
  • UPC: 817093021733
  • Model: Forward Assist
  • Material: 7075 Aluminum (button/shell), Steel (pawl)
  • Finish: Black Hard Anodized
  • Weight: Approx. 10 grams
  • Fitment: Mil-Spec AR-15 / AR-10 upper receivers, forged or billet
  • Design: Snag-free, enlarged button
  • Product Type: AR Forward Assist Assembly
  • Country of Origin: USA

What’s Included

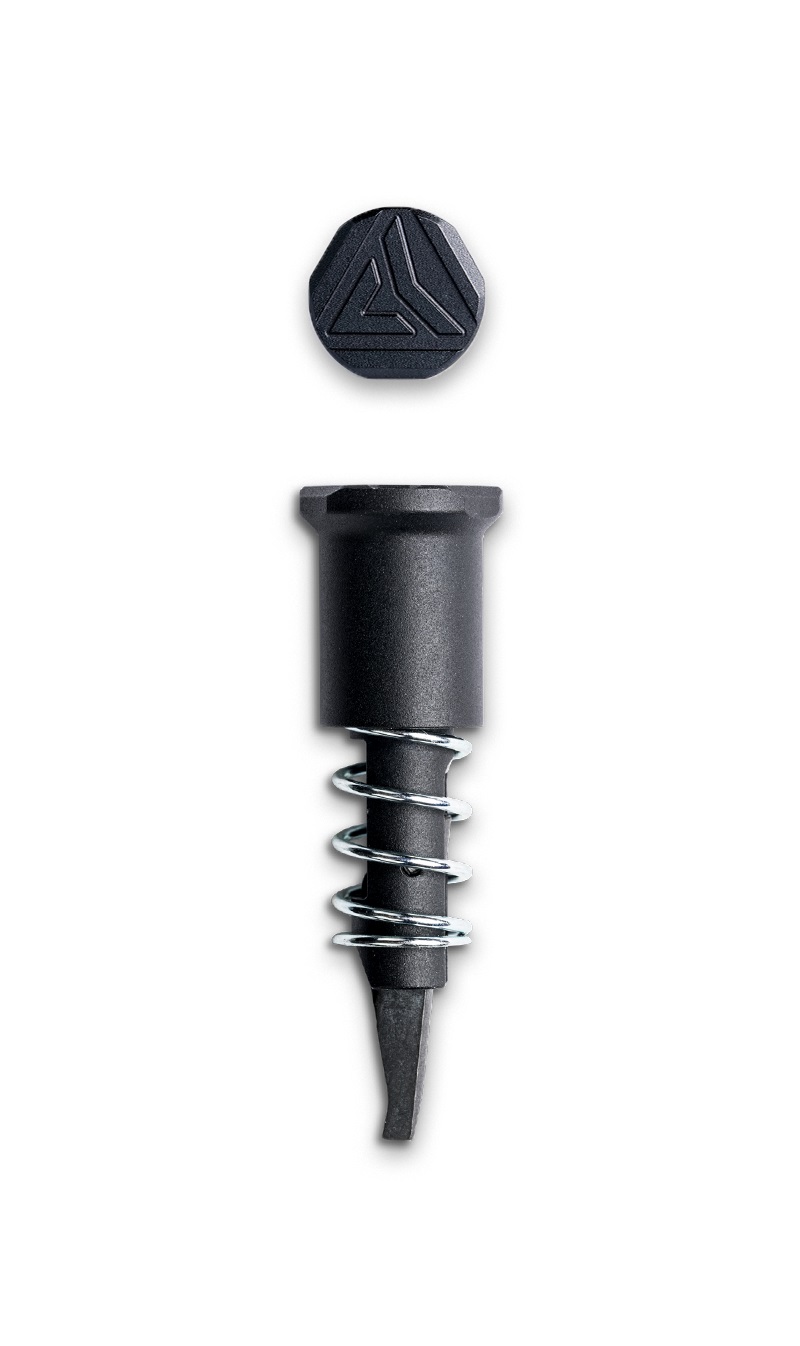

  • 1 Radian Weapons Forward Assist (aluminum, black anodized)
  • 1 Forward assist main spring
  • 1 Retention roll pin

Frequently Asked Questions

Will the Radian Weapons Forward Assist fit my AR-15 upper?

Yes, it is a direct-fit part built to standard Mil-Spec dimensions, so it drops into forged and billet AR-15 upper receivers. Because the pocket is the same, builders have also run it in AR-10 style uppers without issue. If your upper takes a standard forward assist, this one will seat right in.

What tools do I need to install the Radian forward assist?

You will want a 3/32 pin punch to drive out the existing roll pin if you are replacing an old forward assist. To seat the new one, you can use a pin punch or a set of vice grips to press the retention pin back into place. It is a quick job for anyone comfortable working on their own upper, though a gunsmith can handle it in minutes if you prefer.

How much lighter is this aluminum forward assist than a standard one?

It weighs right around 10 grams, which is roughly 50 percent lighter than a typical Mil-Spec steel forward assist. On a single part that difference is small, but it stacks up nicely on a dedicated lightweight build. If you are chasing every ounce, this is an easy spot to trim some weight.

Does the Radian Weapons Forward Assist come with the spring and pin?

Yes, it ships as a complete assembly. You get the forward assist itself, the main spring, and the retention roll pin, so there is nothing extra to source for a stripped upper. That makes it a clean drop-in for a new build or a straight swap on a worn factory piece.

Additional information

UPC

817093021733

Manufacturer

Manufacturer Part Number

R0231

Color

AR15 FORWARD ASSIST

Length

11.5

Model

Package Height

0.5

Package Width

3.3

Product Type

Accessory-Parts

Shipping Weight

0.03
