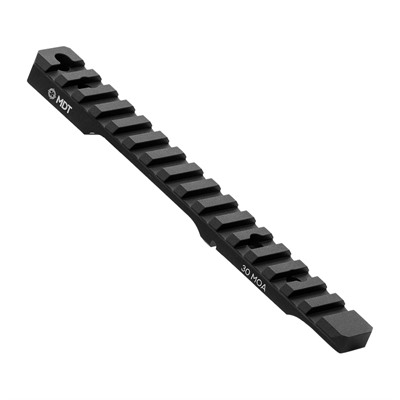

If you're running a Howa 1500 Mini action and want a rock-solid foundation for your optic, this MDT Picatinny base is a smart pickup. It's a one-piece rail that fits the Mini action specifically, and the 30 MOA built-in incline gives your scope a big head start on elevation so you've got more range left in the turret when you're dialing for distance. MDT machines these from 6061-T6 aircraft grade aluminum and finishes them in a durable hard-anodized black, so it holds up to real field use without looking worn after a season.
One of the standout touches is the integrated recoil lug machined into the underside of the base. That lug keys into the action to keep the rail from creeping under recoil and takes stress off the mounting screws, which is exactly what you want when a scope needs to hold zero shot after shot. The underside is also contoured to sit flush against the receiver and follow the geometry of the ejection port, so it mounts clean and stays out of the way.
These rails are built to MIL-STD-1913 and STANAG 4694 spec, so your rings and accessories drop right into the slots without any fuss. The base ships with #6-48 Torx screws, and it's drilled to accept #8-40 screws as well if you want to step up to a beefier screw for a heavy scope or hard-recoiling setup. A little removable thread locker and proper torque on install will keep everything locked down.
Worth noting on the Mini action: because the receiver is on the shorter side, the forward portion of the rail extends out over the barrel and ejection port, which is normal for this platform and actually gives you more room to get your scope positioned for proper eye relief. For folks shooting cartridges like the 6.5 Grendel, 7.62×39, or .223 out of a Mini, this base turns it into a capable long-range setup.
Yes, this rail is machined specifically for the Howa 1500 Mini action. The underside is contoured to sit flush on that receiver and match the geometry of the ejection port, so it's a direct fit for the Mini and not the standard short or long action receivers.
The 30 MOA built-in incline tilts your optic forward slightly, giving your scope more usable elevation in the turret. That translates to more range for dialing long shots without running out of adjustment, which is handy if you're stretching a Mini action cartridge out to distance.
It ships with #6-48 Torx screws, which is the standard hardware for mounting. The base is also drilled to accept #8-40 screws if you'd rather step up to a larger screw for a heavier scope or a harder-recoiling build.
Yes, because the Mini action receiver is shorter, the front of the rail reaches out over the barrel and ejection port. This is normal for the platform and gives you extra space to position your scope for proper eye relief.
| UPC | 682157406852 |
|---|---|
| Manufacturer | |
| Manufacturer Part Number | 106591-BLK |
| Action | |
| Color | Black |
| Model | |
| Style | Picatinny Rail |
