Odin Works Ragna 12.5in M-LOK Free-Float AR-15 Handguard

UPC: 857116007375

$146.30

10 in stock

Online inventory may differ from in-store availability.

Fast Shipping

Quick turnaround so you get your gear sooner.

Secure FFL-Friendly Checkout

Trusted checkout with industry-standard protection.

Family-Owned Business

Keeping Traditions Alive Since 1953

Secure Transactions provided with

Description

Odin Works built the Ragna to solve two things people gripe about with free-float handguards: fussy installs and dead weight up front. This 12.5-inch M-LOK forend rides on a one-piece steel barrel nut with a black nitride coating, so there's no shimming and no clocking to fight with. The handguard slides over the nut and tightens down with the included hardware, and you're done. All the mounting bits come in the box, so it's a complete package right out of the gate.

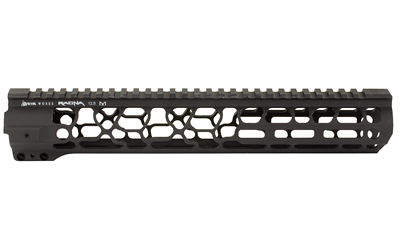

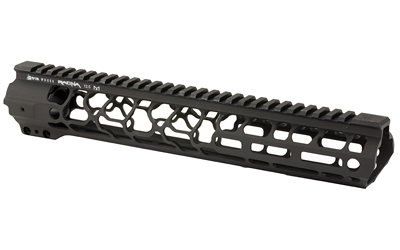

The skeletonized look is the first thing you notice, and it's not just for show. That open design sheds weight and lets air move across the barrel to help it cool between strings. At 9.28 ounces it's genuinely light, and folks who've swapped one onto a build tend to mention how much better the rifle balances and points once that front-end mass drops. One thing worth knowing: the cutouts are large enough that a fingertip can reach the barrel if you're not paying attention, so mind your grip after a hot string or run a hand stop.

What Sets the Ragna Apart

Construction is 6061-T6 aluminum with a Type 2 hard anodized finish, which handles corrosion and wear without adding bulk. The 1.35-inch inside diameter keeps the profile slim while still leaving room for a low-profile gas block. Any .750 diameter Odin Works gas block drops right in, and plenty of builders report clearance for adjustable blocks too. M-LOK slots sit at the 3, 6, and 9 o'clock positions for lights, grips, bipods, and QD sling points where you actually want them.

Fitting the Ragna to Your Build

The 12.5-inch length pairs nicely with mid and rifle-length gas systems and a wide range of barrels, making it a favorite on lightweight 5.56 and 300 Blackout builds alike. It plays well with standard AR-15 uppers, and the fast, repeatable install means less time at the bench and more time behind the rifle. If you want a forend that looks different from the sea of quad-slotted rails without giving up strength, the Ragna delivers.

Key Specifications

  • Model: Ragna
  • Manufacturer: Odin Works
  • MPN: F-12-ML-RA
  • UPC: 857116007375
  • Length: 12.5 in
  • Compatibility: AR-15
  • Attachment System: M-LOK at 3, 6, and 9 o'clock
  • Material: 6061-T6 Aluminum
  • Finish: Type 2 Hard Anodized, Black
  • Barrel Nut: One-piece steel, black nitride coated
  • Inside Diameter: 1.35 in
  • Outside Dimensions: 2.02 in tall x 1.52 in wide
  • Weight: 9.28 oz
  • Gas Block Fit: Accepts .750 diameter gas blocks
  • Design: Free-floating, skeletonized
  • Color: Black

What’s Included

  • Odin Works Ragna 12.5in M-LOK handguard
  • One-piece barrel nut
  • All mounting hardware

Frequently Asked Questions

Is the Ragna handguard hard to install?

Not at all, and that's kind of the whole point. The Ragna uses a one-piece barrel nut that needs no shims and no clocking, so you thread the nut on, slide the handguard over it, and tighten it down with the included hardware. Most builders have it mounted in a few minutes with basic tools.

Will an adjustable gas block fit inside the Ragna?

The 1.35-inch inside diameter is designed to clear .750 diameter gas blocks, and all Odin Works .750 blocks fit inside. Many owners have reported room for low-profile adjustable blocks as well, though clearance depends on the specific block. If you're running a taller unit, check its dimensions against the handguard's internal diameter first.

How much does the Ragna 12.5in handguard weigh?

It comes in at 9.28 ounces, which is impressively light for a 12.5-inch free-float forend. The skeletonized 6061-T6 aluminum design is what keeps the weight down without giving up strength. Dropping that front-end mass makes the rifle feel quicker to point and easier to hold on target.

What gas system lengths work with the 12.5-inch Ragna?

The 12.5-inch length pairs well with mid-length and rifle-length gas systems across a range of barrels. It's a common choice for lightweight 5.56 and 300 Blackout builds. As with any free-float rail, make sure your gas system and barrel setup fit within the handguard's length and internal clearance.

Additional information

UPC

857116007375

Manufacturer

Manufacturer Part Number

F12MLRA

Color

Black

Length

19.5500

Model

Product Type

Handguard
