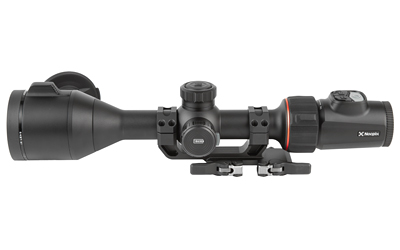

Nocpix ACE H50 Thermal Sight 640×512 50mm 3–24x

Description

The Nocpix ACE H50 is a thermal optic designed to provide high-resolution thermal imaging for field observation and low-light operation. It combines a high-sensitivity 12 µm thermal sensor with a large 50 mm objective and an internal AMOLED eyepiece to present detailed imagery in varied light conditions. The ACE platform is built to mount on standard 30 mm rings and offers USB-C charging and a removable battery for extended field use. Its ergonomic control layout and ocular magnifier make the ACE feel familiar to users accustomed to traditional day optics.

Key Specifications

• The thermal sensor resolution is 640×512.
• The pixel pitch is 12 µm.
• The frame rate is 60 Hz.
• The objective lens is 50 mm F/0.9.
• The stated magnification range is 3–24x.
• The ocular magnifier zoom is 1–3x.
• The NETD (sensitivity) is 15 mK.
• Power options include a built-in USB‑C rechargeable battery and a removable 18650-style battery (hot-swap).
• Onboard recording is supported with 64 GB memory capacity.
• The listed weight is 1090 g (38.5 oz) with battery.

The ACE H50 pairs a large-aperture objective and a high-sensitivity sensor to deliver a clear thermal image for observation, range assessment, and low-light field tasks. Its combination of an AMOLED eyepiece, onboard recording, and hot-swap battery capability makes it a versatile choice for professionals and enthusiasts who need dependable thermal performance and practical endurance in the field.
