Description

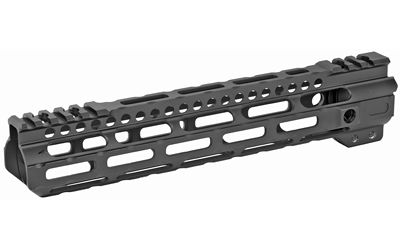

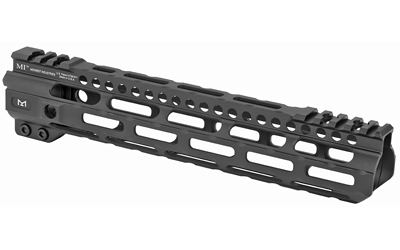

The Midwest Industries Combat Lightweight 10.5-inch M-LOK handguard is one of those upgrades that pays off the second you pick your rifle back up. At right around 7.6 ounces installed, it strips a surprising amount of weight off the front of an AR-15, and folks who have swapped one in from a heavier quad rail tend to notice the difference immediately in how the gun balances and points.
It is machined from 6061 aluminum with a type 3 hard coat anodized finish, so it shrugs off handling, mounting, and range abuse without looking beat up. A continuous MIL-STD 1913 Picatinny top rail runs the full length for red dots, backup irons, or a clip-on setup, and you get M-LOK slots around the sides and bottom for lights, grips, bipods, and pressure switches. Two integral anti-rotation QD sling sockets are built right in, which saves you from hanging extra hardware off the rail just to run a sling.
What Makes This Combat Rail Worth the Swap
The super slim 1.5-inch outside diameter and 1.3-inch inside diameter give it a lean, modern feel that works great for smaller hands but still leaves plenty of real estate for accessories. Everything is fully dehorned and deburred, so there are no sharp edges digging into your support hand during a long day of shooting.
Installing the 10.5" Lightweight Handguard
Midwest built this around a 4140 heat treated barrel nut and their patented 4140 heat treated torque plate, and the design keeps setup refreshingly simple. The barrel nut does not need to be timed, so you torque it to spec, slide the rail on, and clamp it down with the two cross screws. It fits standard forged AR-15 upper receivers and is not intended for gas piston guns. Note that it comes set up for direct impingement rifles, and if you are running a low profile gas block already installed, you may need to pull it to slide the barrel nut over.
This one ships with the barrel nut, mounting hardware, a barrel nut wrench, and a 5-slot polymer M-LOK rail. It is 100 percent made in the USA and backed by the Midwest Industries lifetime warranty.
Key Specifications
- Manufacturer: Midwest Industries
- MPN: MI-CRLW10.5
- UPC: 812102032205
- Model: Combat Rail Lightweight Series
- Fit: AR-15 (forged uppers)
- Length: 10.5 inches
- Installed Weight: Approx. 7.6 oz
- Material: 6061 Aluminum
- Finish: Type 3 Hard Coat Anodized, Black
- Top Rail: Continuous MIL-STD 1913 Picatinny
- Attachment System: M-LOK
- Outside Diameter: 1.5 inches
- Inside Diameter: 1.3 inches
- Sling Mounts: Two integral anti-rotation QD sling sockets
- Mount Type: Free Float
- Origin: Made in USA
What’s Included
- Combat Lightweight M-LOK handguard
- 4140 heat treated barrel nut
- 4140 heat treated torque plate
- Mounting hardware/screws
- Barrel nut wrench
- 5-slot polymer M-LOK rail
Frequently Asked Questions
Will the Combat Lightweight 10.5" handguard fit my AR-15 upper?
It is designed to fit standard forged AR-15 upper receivers using the included barrel nut. It is not intended for gas piston AR platforms, and because billet uppers vary in dimension, it is worth confirming fit with your billet upper maker if you have one. For most common forged builds, it drops right in.
What comes in the box and do I need any extra tools to install it?
You get the handguard, the 4140 barrel nut and torque plate, mounting screws, a barrel nut wrench, and a 5-slot polymer M-LOK rail. You will still want a 1/2-inch drive torque wrench and an upper receiver vise block to do the job right. The Midwest barrel nut does not need timing, so you torque it to spec, slide the rail on, and tighten the two cross screws.
How much weight does this Combat Lightweight rail actually save?
Installed weight lands around 7.6 ounces, which is very light for an aluminum rail of this length. Builders coming from heavier quad rails or older two-piece designs usually feel the balance improvement right away. It runs close to some carbon fiber options while keeping the durability and mounting versatility of machined aluminum.
How does the M-LOK layout and top rail work for accessories?
The full-length continuous Picatinny top rail handles optics, backup irons, or a clip-on, and M-LOK slots wrap the sides and bottom for lights, grips, bipods, and pressure switches. Two built-in anti-rotation QD sling sockets mean you can run a sling without eating up rail space. The slim 1.5-inch profile still leaves room to mount everything you need.






Reviews
There are no reviews yet.
