Description

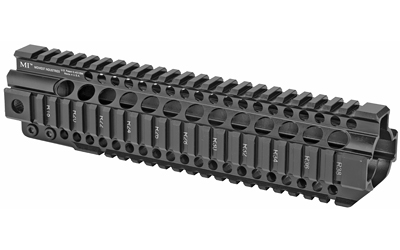

The Midwest Industries Combat T-Series is a one-piece free-float quad rail built for AR-15 platforms that want mounting real estate on every side. You get 10 inches of full-length Mil-Spec M1913 Picatinny running the top, bottom, and both sides, with the top rail T-marked so you can pull an optic or backup sight and drop it right back on the same slot every time. It carries the classic quad rail look while keeping the barrel free-floated for better consistency downrange.
What Sets the Combat T-Series 10" Apart
The backbone here is the hardware. This handguard uses a 4140 heat-treated barrel nut paired with a patented 4140 heat-treated torque plate, so once it's torqued down it stays put with zero shift, even under hard use. The rail itself is machined from 6061 aluminum and finished in Type III hard coat anodizing, which is the durable finish you want on something that lives on the front of a rifle. Installed, the 10-inch version comes in right around 12.3 ounces, so it stays sturdy without loading down the front end.
Comfortable in the Hand, Easy to Sling Up
Every edge on the Combat T-Series has been fully dehorned and deburred, so aggressive Picatinny teeth aren't chewing up your support hand during a long day of shooting. Two integral anti-rotation QD sling sockets are built into the sides, giving you push-button sling points on either side without adding a separate mount. Between the four rails and the QD sockets, there's plenty of room for a light, a foregrip, a bipod, an IR laser, or fixed front sights all at once.
Installs Clean on a Standard AR-15
Installation is straightforward on standard forged upper receivers, and the barrel nut design skips a lot of the fuss found on older GI-style setups. Everything ships ready to mount, and it's proudly made in the USA. If you're running a billet upper, it's worth confirming fit with your receiver maker since billet dimensions vary.
Key Specifications
- Manufacturer: Midwest Industries
- Manufacturer Part Number: MI-CRT10
- UPC: 812102031093
- Platform Fit: AR-15 (standard forged upper)
- Length: 10"
- Rail Type: Mil-Spec M1913 Picatinny Quad Rail (T-marked)
- Material: 6061 Aluminum
- Finish: Type III Hard Coat Anodized
- Color: Black
- Barrel Nut: 4140 Heat-Treated
- Installed Weight: 12.3 oz
- Height: 2.43"
- Width: 2.15"
- Inside Diameter: 1.3"
- Sling Attachment: Two Integral Anti-Rotation QD Sockets
- Origin: Made in USA
What’s Included
- Combat T-Series 10" free-float handguard
- 4140 heat-treated barrel nut
- Patented 4140 heat-treated torque plate
- Barrel nut wrench
- Mounting hardware
Frequently Asked Questions
Will the Combat T-Series 10" fit my AR-15?
It's designed to mount on standard forged AR-15 upper receivers and installs like any other free-float handguard. If you're running a billet upper, dimensions can vary between manufacturers, so it's smart to confirm fit with your receiver maker before ordering. It ships with the barrel nut, torque plate, and wrench you need to get it on.
What gas system lengths work with this handguard?
The 10-inch length leaves plenty of clearance for a low-profile gas block, including a pistol-length gas system. Just make sure your gas block sits low enough to slide under the rail's inside diameter of 1.3 inches. Carbine and mid-length setups clear fine as well within that 10-inch footprint.
Do I need any special tools to install the Combat T-Series?
The barrel nut wrench is included, but you'll want a 1/2-inch drive torque wrench to torque things down properly. The MI barrel nut is simpler than the older GI-style nut since it doesn't have to be clocked out of the way for the gas tube. Overall it's one of the more painless free-float rails to set up at home.
Can I mount a light, laser, and grip at the same time?
Yes. With four full sides of Picatinny plus two QD sling sockets, there's room for a weapon light, IR or visible laser, foregrip, bipod, and backup sights together. The rigid one-piece construction also makes it a solid choice for aiming lasers that need to hold zero.
