Description

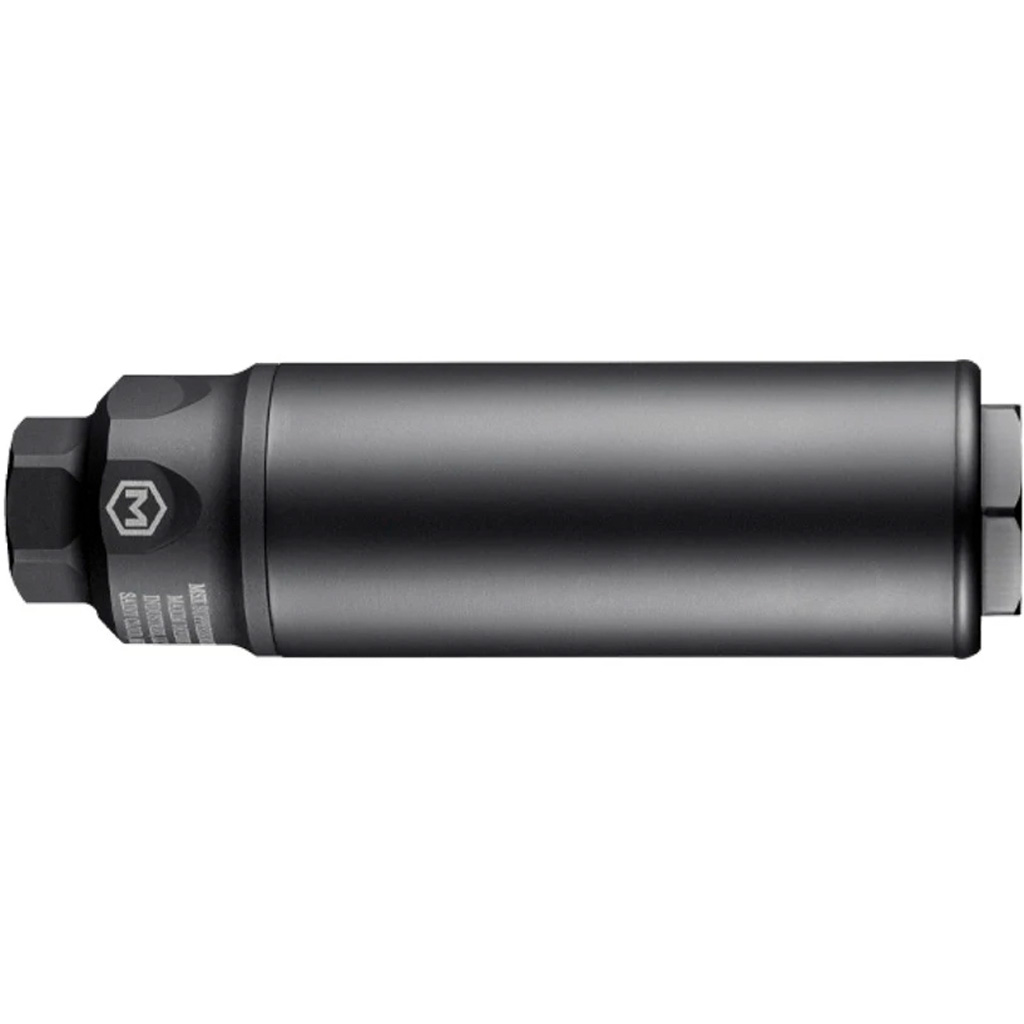

Short suppressors usually ask you to give something up, either sound performance or durability. The Maxim DS-K splits the difference better than most. At just 6 inches long with a 1.75 inch diameter, it keeps your rifle handy and balanced while still bringing muzzle report down to comfortable levels. Maxim has measured an average of 134 dB at the shooter's ear on a 10.3 inch 5.56 AR, which is solid work for a can this compact, and results only get better as barrel length goes up.
What Makes the DS-K Different
The heart of this suppressor is Maxim's M-Kore design, a precision monocore machined from 17-4 stainless steel and wrapped in a titanium tube. The core geometry is built to keep gas blowback and cyclic rate gain low, which matters more than people think. Less gas in your face means more comfortable shooting sessions, and less added bolt speed means your rifle stays reliable over the long haul. The core also has integrated carbon cutters that scrape fouling as you shoot, so cleaning the tube is far less of a chore. It carries a full-auto rating too, so heavy range days and rapid strings will not faze it. Maxim recommends running it on barrels 10.3 inches and longer.
Mounting the Maxim DS-K Your Way
The rear of the can uses the industry standard 1.375-24 HUB pattern, and this version ships with a direct thread insert installed. Direct thread keeps things simple and repeatable with no extra muzzle device to buy, and since the HUB pattern is so widely supported, you can swap to a QD mount, flash hider adapter, or another interface down the road as your setup changes. That flexibility means the DS-K can move between hosts without locking you into one system.
Finished in black with durable protective coatings and made in the USA, the DS-K is a working suppressor for people who put real rounds through their gear. It is compact enough for a truck gun, tough enough for training classes, and quiet enough that you will not want to shoot without it.
Key Specifications
- Caliber: 5.56mm
- Overall Length: 6 inches
- Outer Diameter: 1.75 inches
- Mount: HUB compatible, 1.375-24
- Included Mount Type: Direct thread insert
- Tube Material: Titanium
- Core Material: 17-4 stainless steel monocore
- Core Design: M-Kore Technology with integrated carbon cutters
- Full-Auto Rated: Yes
- Minimum Barrel Length: 10.3 inches
- Sound Performance: Approx. 134 dB avg on a 10.3 inch 5.56 AR (MIL-STD-1474D)
- Finish: Black
- Manufacturer: Maxim Defense Industries
- Manufacturer Part Number: MXM-48091
- UPC: 680017480912
- Country of Origin: USA
What’s Included
- Maxim DS-K 5.56 suppressor
- Direct thread insert (HUB 1.375-24)
Frequently Asked Questions
What barrel lengths can I run the Maxim DS-K on?
Maxim recommends the DS-K for 5.56 barrels 10.3 inches and longer. That covers most SBR and carbine builds all the way up to full length rifles. Staying at or above that minimum keeps pressures where the can is designed to handle them, and it carries a full-auto rating within those guidelines.
Is the DS-K compatible with other HUB mounts?
Yes. The DS-K uses the industry standard 1.375-24 HUB thread pattern, so it accepts a wide range of aftermarket mounts and adapters. It ships from the factory with a direct thread insert, but you can swap to a QD system or other HUB compatible interface whenever you want.
How quiet is the Maxim DS-K on a 5.56 rifle?
Maxim's testing per MIL-STD-1474D shows an average of around 134 dB at the shooter's ear on a 10.3 inch 5.56 AR. Results vary with barrel length, ammo, and conditions, and longer barrels will typically measure quieter. Just as important, the M-Kore design keeps gas blowback low, so the shooting experience is noticeably more pleasant than with many traditional baffle designs.
Does the DS-K add a lot of gas blowback to my AR?
This is one of the DS-K's strong suits. The M-Kore monocore is specifically engineered to minimize gas blowback and keep the gain in your rifle's cyclic rate low compared to traditional suppressor designs. That means less gas to the face, a cleaner running gun, and better long term reliability from your host rifle.
