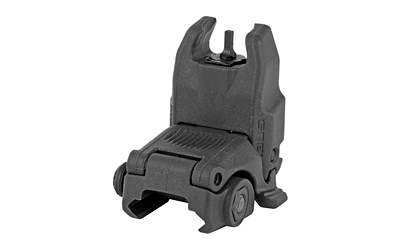

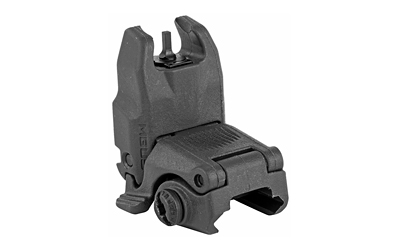

The Magpul MBUS Front Sight is one of the most trusted backup sights ever made, and for good reason. It's a low-cost, injection-molded polymer flip-up that stays folded and out of your way until you need it, then pops up with a quick push. Whether your red dot battery dies mid-drill or your glass takes a hit, this little sight is your insurance policy that never asks for a maintenance schedule.
What Makes the MBUS Front Sight Tick
The whole design is built around fast, reliable deployment. Spring pressure and a detent keep the sight standing at attention once it's up, but it'll fold cleanly under impact instead of snapping off. You can flip it into action from either side or by pressing the top, which makes it genuinely ambidextrous. The impact-resistant polymer keeps the weight down to right around an ounce with hardware, so you'll barely notice it's riding on your rail.
Dialing In Your MAG247-BLK
Elevation adjustment is handled with the included tool, though any standard A2 front sight adjustment tool will do the job just as well. You're looking at roughly 1.6 MOA per click on a 14.5 inch sight radius and about 1.2 MOA per click on a 20 inch radius, giving you fine enough control to get a tight zero. Since it delivers the same height over bore as standard A2 irons, it co-witnesses cleanly with most red dots, and plenty of owners run it in a lower third setup with sights like the Aimpoint PRO or Sig Romeo 5.
Fit and Setup Notes for the MBUS
This sight clamps to MIL-STD-1913 Picatinny and STANAG 4694 rails and is tailored specifically to the AR-15 and M16 platform. It needs to mount to a railed forend that sits on the same plane as your receiver rail, so it won't play nice with a railed gas block or MOE handguards. Protective wings shield the A2-style front post from knocks. Made in the USA, it's the kind of no-drama backup that earns its spot on countless builds.
Key Specifications
- Manufacturer: Magpul Industries
- Model: MBUS (Gen 2)
- Manufacturer Part Number: MAG247-BLK
- UPC: 873750004310
- Sight Position: Front
- Style: Flip-Up / Folding
- Color: Black
- Material: Impact-Resistant Polymer
- Finish: Matte
- Platform Fit: AR-15 / M16
- Mount Type: MIL-STD-1913 Picatinny / STANAG 4694
- Elevation Adjustment: 1.6 MOA/click (14.5" radius); 1.2 MOA/click (20" radius)
- Height Above Rail (Stowed): 0.51 in
- Length (Stowed): 2.6 in
- Length (Deployed): 1.5 in
- Weight w/ Hardware: 1.2 oz
- Country of Origin: Made in USA
What’s Included
- Magpul MBUS Front Sight (MAG247-BLK)
- Elevation adjustment tool
- Mounting hardware
Frequently Asked Questions
Does the Magpul MBUS front sight hold zero?
Yes, once it's tightened down and zeroed, the MBUS holds its point of impact reliably through repeated flip-down and flip-up cycles. Longtime users consistently report solid, repeatable zeros even after hard use in training. The detent and spring keep the sight locked in the deployed position so it returns to the same spot every time.
Will the MBUS front sight co-witness with a red dot?
It does, since it provides the same height over bore as standard A2 iron sights. That makes it compatible with common co-witness setups, and many owners run it in a lower third arrangement with optics like the Aimpoint PRO, Sig Romeo 5, or an EOTech. Set your optic height first, then adjust the sight to line up in your optic window.
Can I mount the MBUS front sight on a gas block or MOE handguard?
No. The front MBUS needs to mount on a railed forend that sits on the same plane as your receiver rail, so it isn't meant for a railed gas block or MOE handguards. It clamps to standard MIL-STD-1913 Picatinny and STANAG 4694 rails, so as long as your handguard has that, you're good to go.
How do you adjust elevation on the MAG247-BLK?
The sight ships with an elevation adjustment tool, and you can also use most standard A2 front sight adjustment tools. Each click gives you roughly 1.6 MOA on a 14.5 inch sight radius or about 1.2 MOA on a 20 inch radius. The positive clicks make it easy to dial in a precise zero.
