Magpul M-LOK Cantilever Rail/Light Mount – Aluminum, Black (MAG588)

UPC: 873750001791

$35.10

66 in stock

Online inventory may differ from in-store availability.

Fast Shipping

Quick turnaround so you get your gear sooner.

Secure FFL-Friendly Checkout

Trusted checkout with industry-standard protection.

Family-Owned Business

Keeping Traditions Alive Since 1953

Secure Transactions provided with

Description

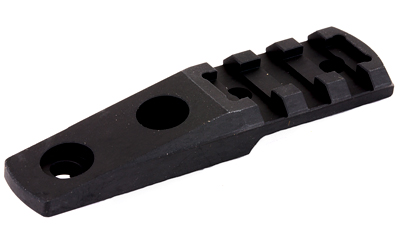

The Magpul M-LOK Cantilever Rail/Light Mount is one of those small parts that solves a big problem on M-LOK handguards. Instead of bolting a light straight to the rail and living with barrel shadow, this piece cantilevers a short Picatinny section forward of your mounting slot, so your beam clears the muzzle and lines up closer to the bore. It gives you three MIL-STD-1913 slots to work with, and the whole thing measures about 3.15 inches, so it takes up very little handguard real estate.

What the Cantilever Rail/Light Mount Is Built For

This mount installs at the 11 or 1 o'clock M-LOK positions and interfaces directly with SureFire M300 and M600 Scout Lights, and it accepts Streamlight ProTac rail lights once you pull the pic clamp off. It also plays nice with the Magpul Light Mount V-Block and Rings if you want to run something round. The Scout Light body sinks down into the mount rather than sitting up high on a separate rail section, which is exactly what keeps the profile so low and the ergonomics tight for support-hand switch access.

Machined Aluminum That Holds Up

Magpul cut this from milspec hardcoat anodized aluminum, so it stays put under recoil and won't flex like some polymer options. The ends and corners are beveled to cut down on snagging on slings, gear, and brush, and it's made in the USA. It bolts to either aluminum or polymer M-LOK handguards and forends, and it's a popular pick on everything from AR-15 builds to Zhukov-equipped AKs and shotgun forends.

Getting the Fit Right

One thing worth knowing up front: the standard SureFire dual-switch tail cap won't clear this mount, but the shrouded Scout tail cap and UE tail cap work fine. If you run a Scout Light or a ProTac and want it low, forward, and out of the way, this is a proven, budget-friendly way to get there. All the hardware you need to bolt it down comes in the package.

Key Specifications

  • Manufacturer: Magpul Industries
  • Manufacturer Part Number: MAG588-BLK
  • Model: M-LOK Cantilever Rail/Light Mount, Aluminum
  • UPC: 873750001791
  • Material: Milspec Hardcoat Anodized Aluminum
  • Finish: Black Anodized
  • Color: Black
  • Mounting Interface: M-LOK Slots
  • Rail Provided: Three MIL-STD-1913 Picatinny Slots
  • Forward Rail Extension: 0.75 in to 1.5 in past M-LOK slot
  • Overall Length: 3.15 in
  • Light Compatibility: SureFire M300/M600 Scout, Streamlight ProTac, Magpul V-Block and Rings
  • Country of Origin: USA

What’s Included

  • Magpul M-LOK Cantilever Rail/Light Mount (Aluminum, Black)
  • Mounting hardware for M-LOK installation
  • Hardware to attach SureFire Scout or Streamlight ProTac lights

Frequently Asked Questions

What lights does the Magpul M-LOK Cantilever Rail/Light Mount work with?

It interfaces directly with SureFire M300 and M600 Scout Lights and works with Streamlight ProTac rail lights once you remove the light's Picatinny clamp. It also accepts the Magpul Light Mount V-Block and Rings for round-body lights. Beyond that, the three MIL-STD-1913 slots will take any standard Picatinny accessory.

Does this mount help with barrel shadow?

Yes, that's a big part of the point. The cantilever design pushes the rail section forward of the M-LOK slot and aligns the beam closer to the bore axis, which clears the muzzle and cuts down on barrel shadow. It also makes the activation switch easier to reach with your support hand.

Will a SureFire dual-switch tail cap fit on the Cantilever Rail/Light Mount?

No, the standard SureFire dual-switch tail cap won't clear this mount. The shrouded Scout Light tail cap and the UE tail cap both work fine. If you're running a dual-activation setup, plan around that before you order.

Can I install this on a polymer handguard or does it need aluminum?

It works on both. The included hardware is designed to attach to M-LOK slots on either aluminum or polymer handguards and forends. The mount itself is machined from milspec anodized aluminum, so it holds up well regardless of what it's bolted to.
