Description

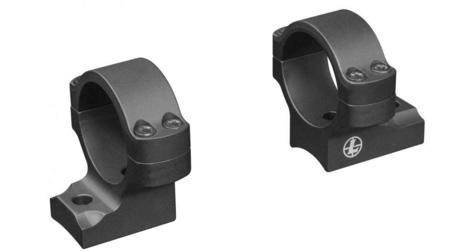

The Leupold BackCountry 2-piece ringmount is built for the hunter who counts every ounce in the pack but refuses to compromise on a mount that holds zero. Instead of a separate base and ring setup, this design integrates the base and 30mm medium rings into a single machined piece that fastens directly to your Weatherby Mark V (9 Lug) receiver. Fewer parts means less weight, fewer points of failure, and a cleaner install on the bench.
Why the BackCountry Ringmount Earns Its Spot
Leupold machines these from 7075-T6 aircraft-grade aluminum, which is the same alloy used in applications where strength-to-weight really matters. The whole set tips the scale at roughly 3.1 ounces, so you get rugged, lifetime-grade construction without adding bulk to a mountain rifle. A milled-in recoil lug and low-profile keeper screw keep your optic locked in through hard recoil and rough handling, and the matte black finish stays low on reflection when you're glassing or sitting still in the open.
Fit and 30mm Medium Ring Height
This specific model is cut for the Weatherby Mark V 9-lug action and accepts any riflescope with a 30mm main tube. The medium ring height sits at 1.08 inches, which clears most common hunting objective bells while keeping the scope low and your cheek weld natural. If you're running a mid-size variable in the 40mm to 44mm objective range, medium is usually the sweet spot for this rifle.
Getting Your Mark V Set Up
Installation is about as simple as it gets. The ringmounts attach with Torx screws to the receiver, and Leupold calls for torquing the base screws to 22 in-lbs and the ring top screws to 28 in-lbs. Clean the contact surfaces and threaded holes of any oil before you start, and the front and rear ringmounts can be swapped to fine-tune ring spacing for your scope. It's a clean, no-fuss setup that gets you to the range faster. Made in the USA and backed by Leupold's lifetime guarantee.
Key Specifications
- Manufacturer: Leupold
- Model: BackCountry
- Manufacturer Part Number: 171124
- UPC: 030317011604
- Firearm Fit: Weatherby Mark V (9 Lug)
- Configuration: 2-Piece Integral Base/Rings
- Ring Diameter: 30mm
- Ring Height Style: Medium
- Ring Height: 1.08 in
- Material: 7075-T6 Aluminum
- Finish: Matte Black
- Base Cant: None
- Weight: 3.1 oz
- Base/Receiver Screw Torque: 22 in-lbs
- Ring Top Screw Torque: 28 in-lbs
- Country of Origin: USA
What’s Included
- Leupold BackCountry 2-piece ringmount set (front and rear)
- Torx mounting screws
- Mounting instructions
Frequently Asked Questions
Does the Leupold BackCountry ringmount need a separate base?
No. This is an integrated design where the base and rings are machined into one unit, so it mounts directly to your Weatherby Mark V receiver. That means you don't buy or install a separate base, which cuts weight and removes the ring-to-base connection point.
Will this fit any Weatherby Mark V?
This specific model is cut for the Weatherby Mark V 9-lug action. If you have a 6-lug Mark V, double check your receiver pattern before ordering, since the lug count determines the correct mount.
What size scope tube does this accept, and is medium the right height?
It accepts any riflescope with a 30mm main tube. The medium height sits at 1.08 inches, which clears most 40mm to 44mm objective bells on the Mark V while keeping the scope low for a comfortable cheek weld. Larger objectives may call for the high ring version instead.
How do I torque the BackCountry ringmount screws?
Leupold specifies 22 in-lbs on the base-to-receiver screws and 28 in-lbs on the ring top screws. Clean all oil and grease off the contact surfaces and threads before installing, and don't apply gun oil to the screw threads. A quality torque driver with Torx bits makes the job quick and accurate.
