Description

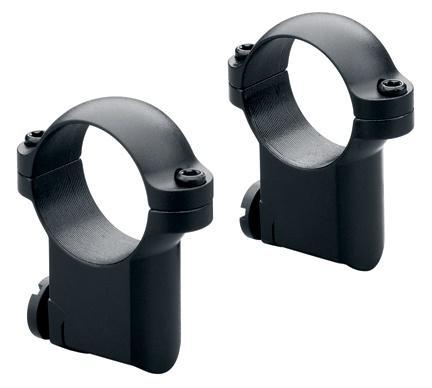

One of the nicest things about owning a Ruger M77 is that it already has those integral machined dovetails cut right into the receiver, so you don't need a separate base to get a scope on board. The Leupold 51043 takes full advantage of that. These two-piece rings clamp directly to the factory dovetails and give you a strong, no-nonsense platform for a 30mm riflescope, finished in a low-sheen matte black that keeps light from bouncing around in the field.
Built to Fit the Ruger M77 Dovetail
Leupold machines these ringmounts from solid steel stock, which is the main reason they hold tolerances so tightly and shrug off recoil without shifting. Rather than adapting a generic ring to a rail, the 51043 is purpose-made for the Ruger M77 integral mount system, so the fit is clean and the scope stays put shot after shot. Steel also means you're not worried about flex under a heavy magnum optic.
Why Super High Matters on the 51043
This set is the Super High configuration, with a ring height of roughly 1.15 inches measured from the top of the base to the center of the ring. That extra clearance is what you want when you're running a scope with a large objective bell, a 50mm or 56mm front end that needs room to sit above the barrel without the glass kissing the metal. If you've been fighting objective clearance with shorter rings, this height solves it.
Matte Black and 30mm Ready
The 30mm ring size pairs up perfectly with the heavier-duty tubes found on a lot of today's hunting and long-range scopes. The matte finish matches well with most Leupold optics and other matte-finished scopes, giving your rig a consistent, understated look while cutting glare out in the sun. Built in the USA and backed by the Leupold name, these are a straightforward, dependable way to get glass on your rifle and keep it there.
Key Specifications
- Manufacturer: Leupold
- Manufacturer Part Number: 51043
- UPC: 030317510435
- Model: Ringmounts (RM Ruger M77)
- Tube Diameter: 30mm
- Ring Height: Super High (approx. 1.15 in)
- Fits: Ruger M77 integral dovetail
- Mount Type: 3/8" / 11mm / 13mm Dovetail
- Material: Machined steel
- Finish: Matte Black
- Style: 2-Piece Set
- Weight: Approx. 5.2 oz
- Origin: Made in USA
What’s Included
- 2-piece Leupold ringmount set
- Mounting hardware
Frequently Asked Questions
Do the Leupold 51043 ringmounts need a separate base for the Ruger M77?
No. The 51043 clamps directly onto the integral dovetails machined into the Ruger M77 receiver, so there's no separate base to buy or install. That's the whole advantage of Ruger's integral mounting system, and these rings are built specifically to take advantage of it.
What size scope tube do these rings fit?
These are made for 30mm main tube riflescopes. If your scope has a 1-inch tube, you'll want a different Leupold Ruger ringmount set sized for that diameter.
How tall are the Super High rings and why would I need that height?
The Super High version measures roughly 1.15 inches from the top of the base to the center of the ring. That added height is ideal for scopes with large objective bells, like 50mm or 56mm front lenses, giving the glass room to clear the barrel without contact.
What are the 51043 ringmounts made of?
They're machined from solid steel stock, which is why they hold tight tolerances and stand up well to recoil. The matte black finish helps cut glare and pairs cleanly with most matte-finished optics.
