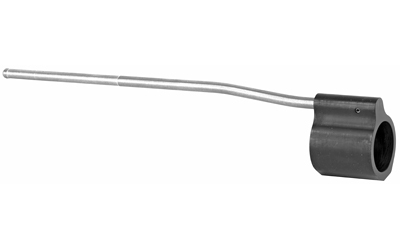

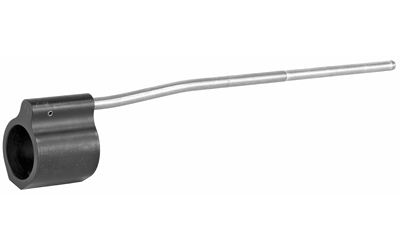

LBE Unlimited ARLGB-P .750 Low Profile Gas Block, Pistol-Length Tube

UPC: 784682014646

$41.99

25 in stock

Online inventory may differ from in-store availability.

Fast Shipping

Quick turnaround so you get your gear sooner.

Secure FFL-Friendly Checkout

Trusted checkout with industry-standard protection.

Family-Owned Business

Keeping Traditions Alive Since 1953

Secure Transactions provided with

Description

Building an AR pistol or a short-barreled setup means matching your gas system to a shorter barrel, and this LBE Unlimited ARLGB-P takes some of the guesswork out of it. It's a .750 low-profile gas block with the pistol-length gas tube already installed, so you're not hunting down a separate tube and hoping the lengths line up. The block is machined from steel with a nitride finish that shrugs off water, dirt, and the kind of grime that builds up around the gas port. The gas tube itself is made from 304 stainless seamless tubing, which holds up well to heat and pressure cycling over long strings of fire.

Where the ARLGB-P Pistol-Length Setup Fits

Pistol-length gas systems are built for the shortest barrels, typically in the 7 to 10 inch range, where there just isn't room for a carbine or mid-length setup. Because the low profile block sits tight against the barrel, it tucks neatly under free-float handguards and rails without any interference. Just keep in mind this fits .750 diameter barrels only, so measure your gas seat before ordering if you're not sure what you've got.

Getting the ARLGB-P Installed Right

This is a set-screw block, which is the most common attachment style out there. For the most secure hold, a lot of builders dimple the barrel under the set screws so the screws have a positive seat and the block can't creep under heat or recoil. A quality thread locker on the screws keeps everything from vibrating loose over time. If you'd rather make it permanent, the block can also be pinned, though that's a job best left to someone with the right tooling.

LBE Unlimited sells these as a complete block-and-tube package across pistol, carbine, mid, and rifle lengths, which makes life easier when you're sourcing a gas system from scratch. It's made in the USA and priced as a workhorse component, the kind of part you bolt on and stop thinking about.

Key Specifications

  • Manufacturer: LBE Unlimited
  • Model: Low Profile Gas Block
  • Manufacturer Part Number: ARLGBP
  • UPC: 784682014646
  • Product Type: Gas Block
  • Gas Block Diameter: .750 inch
  • Gas System Length: Pistol
  • Profile: Low Profile
  • Block Material: Steel
  • Finish: Nitride
  • Gas Tube Material: 304 Stainless Steel Seamless Tubing
  • Attachment Style: Set Screw
  • Barrel Compatibility: .750 diameter barrels
  • Country of Origin: Made in USA

What’s Included

  • LBE Unlimited .750 low profile gas block
  • Pistol-length gas tube (factory installed)
  • Gas block set screws

Frequently Asked Questions

What barrels does the ARLGB-P pistol-length gas block fit?

It's sized for .750 diameter barrels with a pistol-length gas port, which is the norm for short barrels roughly in the 7 to 10 inch range. It fits .750 barrels only, so measure your gas seat before ordering if you aren't certain. The low profile design lets it sit under free-float handguards and rails without clearance issues.

Does this gas block come with the gas tube already installed?

Yes, LBE Unlimited ships the ARLGB-P as a complete package with the pistol-length gas tube already installed in the block. That saves you from sourcing a separate tube and matching lengths. The tube is 304 stainless seamless tubing, which handles heat and pressure well over long strings.

How does the ARLGB-P attach to the barrel?

This is a set-screw block, the most common attachment method for low profile gas blocks. For the most secure hold, many builders dimple the barrel under the set screws so they have a positive seat and the block won't shift under heat or recoil. A dab of thread locker on the screws helps keep them from backing out from vibration.

Can this pistol-length gas block be pinned instead of using set screws?

It can be pinned for a permanent, ultra-secure install, which is how mil-spec guns are typically built. That said, pinning requires drilling through the block and barrel and is best handled by a gunsmith with the proper tooling. For most builds, properly installed set screws with a dimpled barrel and thread locker are plenty secure.

Additional information

UPC

784682014646

Manufacturer

Manufacturer Part Number

ARLGBP

Model

Product Type

Gas Block
