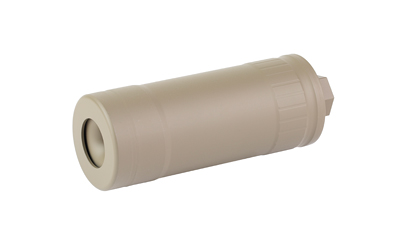

KGM took what they learned building suppressors to SOCOM-grade standards and boiled it down into something a lot of AR owners have been asking for: a short, tough, no-nonsense 5.56 can that just works. The CORE-556 measures 4.75 inches long, 1.75 inches in diameter, and weighs in around 13 ounces, so it adds very little bulk to a carbine or AR pistol. Construction is hardened stainless steel, fully laser welded into a sealed unit, with a gas nitride treatment inside and heat-resistant C-Series Cerakote in Flat Dark Earth on the outside.
Short suppressors usually mean big compromises, but the internals here are derived from KGM's Rogue-Alpha family, so the baffle and gas flow design punches above its size. The routing of gases inside the can cuts down on over-gassing and reduces the blowback that makes suppressed ARs run dirty and dump gas in your face. The shrouded end cap integrates a flash hider function for solid flash reduction, and the bore is cut with a wire EDM process for dead-on concentricity, which helps keep point of impact shift to a minimum. KGM built this one for training and duty-level round counts on standard 5.56 and .223 platforms, so range days won't wear it out.
This is a direct thread can with a 1/2×28 rear mount, which means no proprietary muzzle devices to buy and no QD collar to work loose over time. It threads straight onto your muzzle with no crush washers or shims needed, and KGM specifically says not to use them. If you own several AR-style rifles, carbines, or pistols in 5.56, one CORE-556 can bounce between all of them with nothing more than a set of clean muzzle threads. It can also be pinned and welded to a 12.5 inch barrel to bring the whole setup out to 16 inches overall, which is a popular route for building a handy carbine that keeps its can on full time.
No, and KGM specifically tells you not to use them. The CORE-556 threads directly onto a clean 1/2×28 muzzle and shoulders up square on its own. Just make sure your barrel threads are concentric and torque it hand tight against the shoulder.
That is exactly what it was built for. The fully welded, hardened stainless steel construction with a gas nitride treatment is designed around training and duty-level firing schedules on standard 5.56 and .223 platforms. The C-Series Cerakote finish is also made to handle serious heat without breaking down.
KGM designed this can to keep shift minimal. The bore is wire EDM cut for precise alignment and concentricity, and the internal gas flow design redirects gases away from the bullet path. Most direct thread cans this size will show some small, repeatable shift when mounted, so confirm your zero with the can on and it should stay consistent.
Yes. KGM notes the CORE-556 can be pinned and welded to a 12.5 inch barrel, bringing the total length to 16 inches overall. It is a popular setup for a dedicated suppressed carbine that keeps the can attached permanently.
| UPC | 784668807392 |
|---|---|
| Manufacturer | |
| Manufacturer Part Number | CORE-556-DT-FDE |
| Caliber/Gauge | .223 REM/5.56 NATO |
| Color | Flat Dark Earth |
| Model | |
| Product Type | Suppressor |
| Thread Pattern | 1/2"x28 |
