Description
Loading the .500 S&W Magnum is a serious job, and this Hornady Custom Grade set gives you the full lineup of tools to do it right. You get four dies built to handle that oversized straight-wall case, all machined and finished to the standard Hornady has built its reputation on. The internals are hand-inspected and hand-polished to a mirror shine, which means your brass slides in and out without picking up scratches or drag.
What Comes in the Hornady .500 S&W 4-Die Set

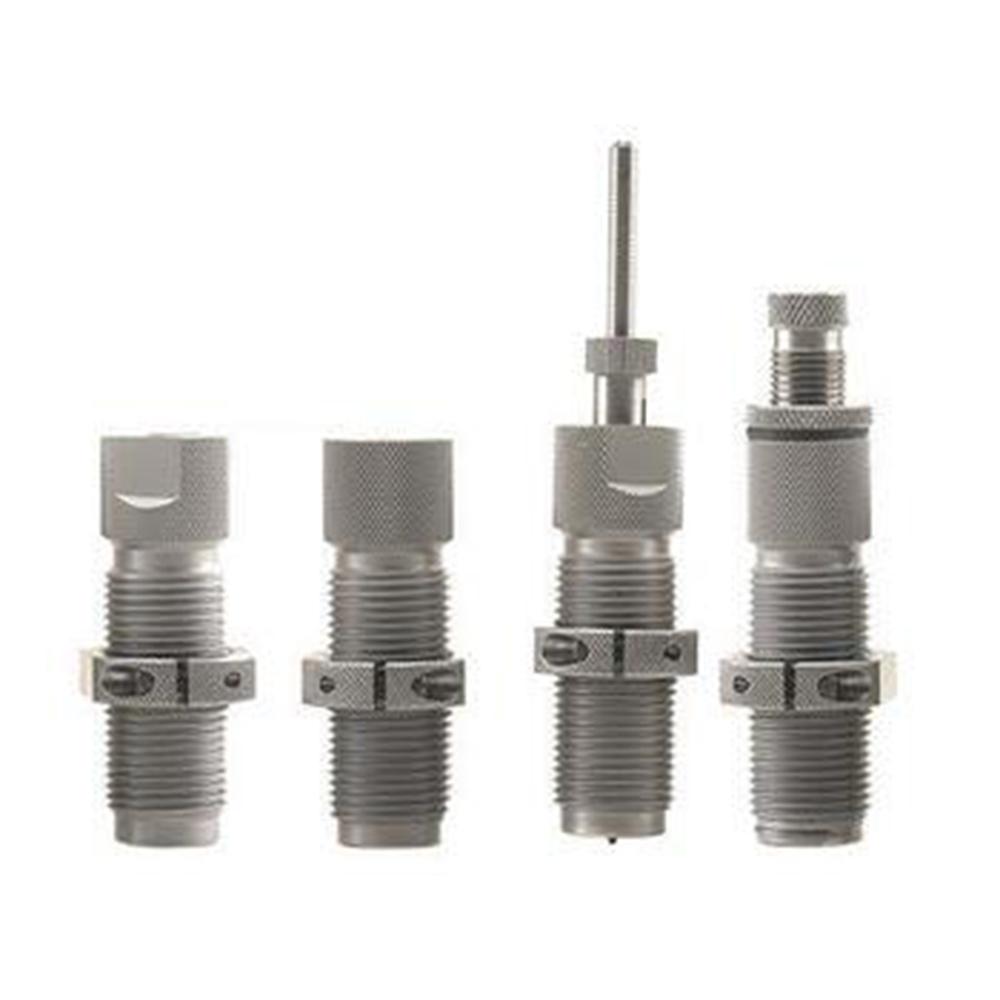

The set includes a full-length sizing die, a case mouth expander die, a bullet seating die, and a dedicated crimp die. That separate crimp die is a real plus when you're working with the heavy loads the .500 S&W is known for, since it lets you dial in your seating depth and your crimp independently for better consistency round to round. The seating die uses a floating alignment sleeve that guides the bullet and case together before seating, which helps keep everything straight and improves your finished accuracy.
No Case Lube Thanks to the Titanium Nitride Ring
The sizing die carries Hornady's titanium nitride gold ring, a coating that's harder than carbide and smooth enough that you can skip the lube step entirely on this straight-wall cartridge. That cuts a messy, time-consuming part out of your process and means no lube contaminating your powder. The coating also reduces friction and wear, so your brass lasts longer through repeated loadings.
Zip-Spindle and Sure-Loc Rings
The full-length sizer features the Zip-Spindle design, with light threads cut into the spindle and collet that lock it down tight and put an end to the slippage and knuckle-busting that older dies were notorious for. Sure-Loc lock rings clamp around the whole die body and hold your adjustments in place with constant pressure, and the locking retainer spring pops out in seconds when it's time to clean things up. Everything ships in a stackable storage box that keeps your adjusted dies organized on the bench. These dies use the standard 7/8"-14 threads, so they'll thread right into any common single-stage or progressive press.
Key Specifications
- Caliber: .500 S&W Magnum
- Bullet Diameter: .500"
- Number of Dies: 4
- Die Types: Full-Length Sizer, Case Mouth Expander, Seater, Crimp
- Die Thread: 7/8"-14
- Sizing Ring: Titanium Nitride (no case lube required)
- Spindle Design: Zip-Spindle
- Lock Rings: Sure-Loc
- Shell Holder Included: No
- Storage Box Included: Yes
- Manufacturer: Hornady
- Manufacturer Part Number: 546585
- UPC: 090255565850
- Shipping Weight: 1.9 lbs
What’s Included
- Full-Length Sizing Die with Sure-Loc Lock Ring
- Case Mouth Expander Die
- Bullet Seating Die
- Crimp Die
- Spindle Lock, Decap Pin Retainer, and Decap Pins
- Stackable Die Storage Box
Frequently Asked Questions
Do I need case lube with the Hornady .500 S&W die set?
No, you don't. The sizing die uses a titanium nitride gold ring that's harder than carbide and lets you size this straight-wall case without any lubrication. Skipping the lube keeps your process cleaner and prevents any lube from sneaking into the case and contaminating your powder.
Does this set come with a shell holder?
No, a shell holder is not included with this set. You'll want to pick up the correct shell holder for the .500 S&W Magnum separately. The set does come in a stackable storage box that has a spot for a shell holder once you add one.
Will these dies fit my press?
Yes, these use the standard 7/8"-14 thread, so they thread into just about any common single-stage or progressive reloading press. If your press takes standard dies, you're good to go with this set.
Why does this .500 S&W set have four dies instead of three?
The four-die layout separates the crimp into its own dedicated die rather than combining it with the seater. That's a real advantage with a hard-recoiling cartridge like the .500 S&W, since it lets you set your bullet seating depth and your crimp independently for more consistent, secure loads.
