Hornady Custom Grade Series III 2-Die Set, 338 ARC

UPC: 090255564440

$63.99

6 in stock

Online inventory may differ from in-store availability.

Fast Shipping

Quick turnaround so you get your gear sooner.

Secure FFL-Friendly Checkout

Trusted checkout with industry-standard protection.

Family-Owned Business

Keeping Traditions Alive Since 1953

Secure Transactions provided with

Description

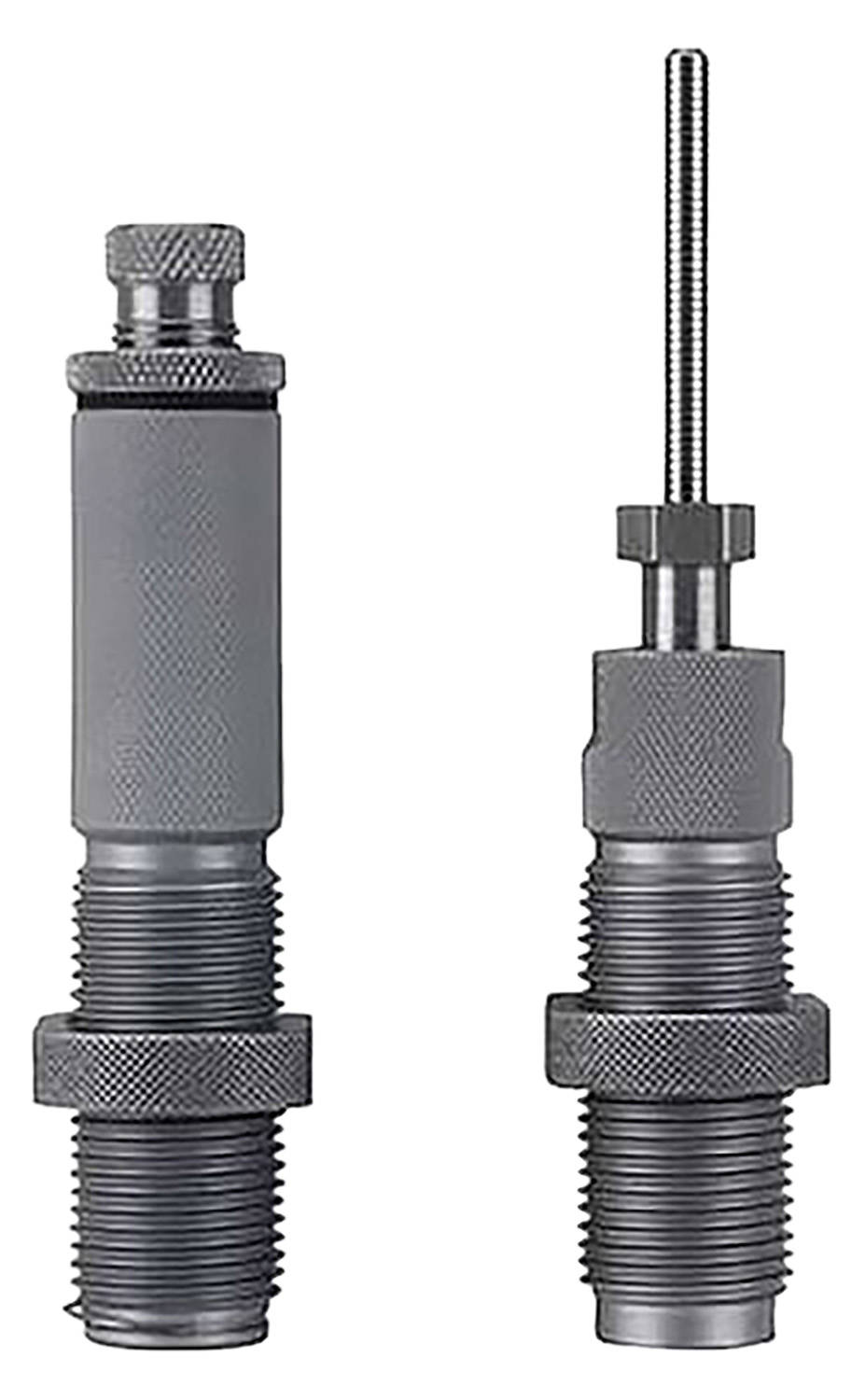

Loading your own 338 ARC means you want dies that deliver repeatable results without fighting your press every step. This Hornady Custom Grade Series III set handles the two core jobs for the cartridge: a full-length sizer die to bring your fired brass back to spec, and a seating die to place the bullet exactly where you want it. It's a caliber-specific pairing built for the 338 ARC, the big-bore AR-15 and micro-bolt round Hornady designed to hit hard with both supersonic and subsonic loads.

What Sets the Custom Grade Series III Sizer Apart

The full-length sizer is a standard, non-bushing design with Hornady's Zip Spindle. The spindle has a series of light threads cut into it and the collet, so it positively locks and won't slip during a run. That also means you can make small decapping stem adjustments by turning the spindle, or zip it up and down quickly for bigger moves without busting your knuckles on a lock nut. A polished elliptical expander rides inside to smooth out neck sizing and cut down on case neck stretch, which keeps your brass living longer.

Seating That Keeps Your 338 ARC Rounds True

The seating die uses a floating bullet alignment sleeve and stem that pre-aligns the bullet to the case mouth before it ever seats. That extra bit of self-centering is what keeps runout low and your loaded rounds consistent from one to the next. The die also has a built-in crimp feature, so you can crimp to lock the bullet in place without buying a separate crimp die, handy for the 338 ARC when you're building loads for an autoloader.

Packaging and the Hornady Custom Grade Warranty

Everything ships in a plastic storage box with two Hornady Sure-Loc lock rings that clamp around the full die body for a solid, consistent hold. The dies use the standard 7/8"-36 thread and will thread into any common single-stage or progressive press. Keep in mind a shellholder is sold separately. Like the rest of the Custom Grade line, these are backed by Hornady's lifetime warranty.

Key Specifications

  • Cartridge: 338 ARC
  • Series: Custom Grade New Dimension Series III
  • Die Type: Full Length Sizer (non-bushing) and Bullet Seater
  • Number of Dies: 2
  • Thread Size: 7/8"-36
  • Sizer Feature: Zip Spindle with elliptical expander
  • Seater Feature: Floating bullet alignment sleeve with built-in crimp
  • Shellholder Included: No (sold separately)
  • Warranty: Hornady No-Risk Lifetime Warranty
  • Country of Origin: USA
  • Manufacturer: Hornady
  • Manufacturer Part Number: 546444
  • UPC: 090255564440

What’s Included

  • Custom Grade New Dimension Full Length Sizer Die (338 ARC)
  • Custom Grade New Dimension Seating Die (338 ARC)
  • Two Sure-Loc lock rings
  • Plastic storage box

Frequently Asked Questions

Does this 338 ARC die set include a shellholder?

No, a shellholder is not included and is sold separately. The set comes with the full length sizer die, the seating die, two Sure-Loc lock rings, and a plastic storage box. You'll want to match a shellholder to the 338 ARC case head before your first session.

Is the sizing die a bushing die?

No, the full length sizer in this Custom Grade Series III set is a standard, non-bushing design. It sizes the neck with a polished elliptical expander and uses the Zip Spindle to lock the decapping stem in place. If you specifically need bushing-style neck control, you'd be looking at Hornady's Match Grade line instead.

Can this set crimp the bullet without a separate crimp die?

Yes. The seating die has a built-in crimp feature, so you can seat and crimp in the same step. That's a nice touch for the 338 ARC when you're loading for an AR platform and want the bullet held securely in the case.

Will these dies fit a standard reloading press?

They use the common 7/8"-36 thread, so they'll thread into any standard single-stage or progressive press that accepts that size. That covers the large majority of reloading presses on the market. Just add the correct shellholder for 338 ARC and you're set.

Additional information

UPC

090255564440

Manufacturer

Manufacturer Part Number

546444

Shipping Weight

1.329
