Description

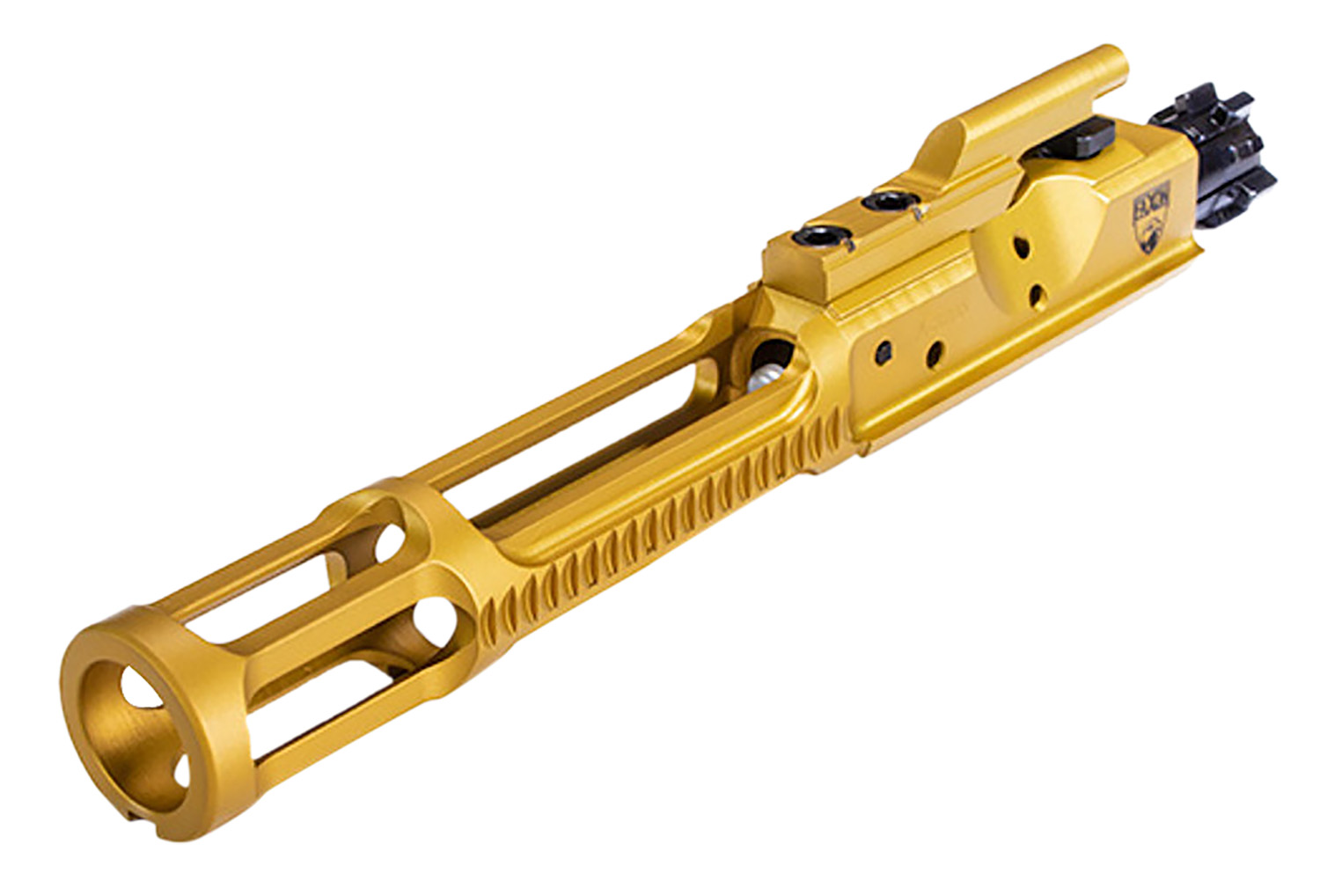

The Faxon Gunner is what happens when a company treats "mil-spec" as the floor instead of the ceiling. This is a full complete bolt carrier group built to shave reciprocating mass off your AR-15, landing right around 8.5 ounces assembled. Less mass moving back and forth means a lighter recoil impulse, quicker cycling, and faster follow-up shots, which is exactly why folks building lightweight uppers and competition guns keep reaching for this one. The gold TiN PVD carrier and gas key give it a look that turns heads at the range, but the real story is what the finish does under the hood.
What Makes the Gunner Lightweight BCG Tick
The bolt is machined from 9310 tool steel, which runs stronger than the Carpenter 158 you'll find on a lot of standard bolts. It's fully heat treated, shot peened, and Magnetic Particle Inspected so you know the material is sound before it ever leaves the shop. The back of the lugs are chamfered to help feeding and lockup stay smooth, and the extractor is cut from S7 tool steel with the spring, insert, and Crane O-ring already installed. Both the bolt and carrier get a salt bath nitride treatment for hardness and corrosion resistance, while the TiN PVD coating on the carrier and gas key adds another layer of slickness and wear resistance.
Running the Faxon Gunner in Your Build
This is an M16-pattern carrier that keeps the full-auto trip sear, so it plays nice with full-auto fire control groups and the newer multi-stage trigger systems. Forward assist serrations and dust cover clearance are both there, so nothing about the mil-spec footprint gets sacrificed to save weight. One thing worth knowing going in: because the carrier is lighter than a standard BCG, Faxon recommends pairing it with an adjustable gas block so you can dial the gas down and tune the rifle properly. This is especially true on short-barreled or suppressed setups where over-gassing is easy to run into. A heavier buffer and enhanced spring can also help you find that sweet spot. Get the gas tuned right and this carrier rewards you with buttery cycling and easy cleanup. It's backed by Faxon's Lifetime Guarantee and wears the laser-engraved Faxon Shield that gets applied after it clears quality inspection.
Key Specifications
- Manufacturer: Faxon Firearms
- Model: Gunner
- Manufacturer Part Number: FF556BCGCNITRIDE-LW-TiN
- UPC: 816341024656
- Caliber: 5.56x45mm NATO / .223 Rem
- Platform: AR-15 / M16 Pattern
- Complete Weight: Approx. 8.5 oz
- Bolt Material: 9310 Tool Steel
- Carrier Material: Mil-Spec 8620 Steel
- Gas Key Material: 4140 Steel, Grade 8 Fasteners, Staked
- Extractor: S7 Tool Steel
- Bolt Finish: Salt Bath Nitride (QPQ)
- Carrier & Gas Key Finish: TiN PVD (Gold)
- Bolt Testing: MPI, Heat Treated, Shot Peened
- Fire Control: Full Auto / M16 Trip Sear Compatible
- Warranty: Faxon Lifetime Guarantee
What’s Included
- Complete Faxon Gunner lightweight bolt carrier group
- 9310 tool steel bolt with spring, insert, and Crane O-ring installed
- Cam pin
- Firing pin
- Firing pin retaining pin
- Staked gas key installed on carrier
Frequently Asked Questions
Do I need an adjustable gas block to run the Faxon Gunner lightweight BCG?
Faxon recommends it, and for good reason. Because this carrier is lighter than a standard BCG, it changes how much gas your rifle needs to cycle reliably. An adjustable gas block lets you tune the system down for smoother cycling, less recoil, and longer component life, which really matters on suppressed or short-barreled builds where over-gassing is common.
Is the Faxon Gunner BCG full-auto compatible?
Yes. It's an M16-pattern carrier that keeps the full-auto trip sear, so it works with full-auto fire control groups as well as modern multi-stage and enhanced trigger systems. It also retains forward assist serrations and dust cover clearance, so nothing about the mil-spec footprint was cut to save weight.
Will this Gunner BCG work in a .300 Blackout build?
It will. The bolt is a standard 5.56 bolt, which is the correct bolt for .300 Blackout, and the carrier fits any standard AR-15 receiver. Because the carrier is lighter than usual, plan on tuning your buffer weight or gas system to get everything cycling right, especially with subsonic loads.
What makes the TiN PVD version different from the plain nitride Gunner?
Both versions share the same 9310 bolt, salt bath nitride treatment, and lightweight carrier design. The TiN PVD model adds a Titanium Nitride coating to the carrier and gas key, which gives you extra hardness, added wear resistance, and that distinctive gold finish. It's a nice combination of function and looks if you want your build to stand out.
