Description
The .22 ARC is one of the flattest-shooting cartridges you can run in an AR-15, and this Faxon Match Series barrel is built to get the most out of it. It starts with 416-R stainless steel that's fully stress relieved, then gets a heavy fluted contour that trims weight while adding rigidity where it counts. The 24-inch length gives the powder plenty of room to burn, which is exactly what the .22 ARC wants when you're reaching out past 600 yards.
What Makes the Faxon Match Series Barrel Shoot
The combination of a 1:7 twist and 5R button rifling is the real story here. That fast twist locks in the long, high-BC bullets the .22 ARC was designed around, from 62-grain match projectiles up to the heavier 88-grain loads. 5R rifling uses a hybrid land geometry that reduces bullet deformation and cuts down on fouling, which usually means easier cleaning and more consistent groups shot after shot. Faxon runs a salt bath nitride treatment inside and out, so the bore is sealed and hardened for the long haul.
Getting the Faxon .22 ARC Barrel Running Right
A couple of build notes worth knowing. The .22 ARC shares a bolt face with the 6.5 Grendel and 6mm ARC, so you'll need a 6.5 Grendel-type bolt or BCG and Grendel/ARC-pattern magazines. A standard 5.56 bolt won't headspace correctly. The barrel runs a rifle-length gas system for a smooth, soft cycling impulse, and it's cut with 1/2×28 muzzle threads so most of your existing .22-caliber brakes and cans will thread right on. Faxon also caps the extension with a nickel Teflon coating for a tight, slick receiver fit.
This is a purpose-built barrel for precision rifle builds, varmint work, and long-range steel. If you're chasing accuracy without stepping up to a bigger, harder-recoiling caliber, the .22 ARC in a quality 24-inch tube is a sweet spot, and Faxon backs the whole thing with their lifetime guarantee.
Key Specifications
- Caliber: .22 ARC
- Barrel Length: 24"
- Contour: Heavy Fluted
- Twist Rate: 1:7
- Rifling: 5R Button Rifling
- Material: 416-R Stainless Steel, Stress Relieved
- Finish: Black Nitride (inside and out)
- Gas System: Rifle-Length
- Muzzle Threads: 1/2×28
- Barrel Extension: M4 with Nickel Teflon Coating
- Barrel Weight: 2.95 lbs
- Bolt Compatibility: 6.5 Grendel / 6mm ARC-type bolt
- Testing: Individually MPI Inspected, PTG Headspaced
- Manufacturer: Faxon Firearms
- Model: Match Series
- Manufacturer Part Number: 15B22A7R24FHQ-5R-NP3
- UPC: 816341028067
What’s Included

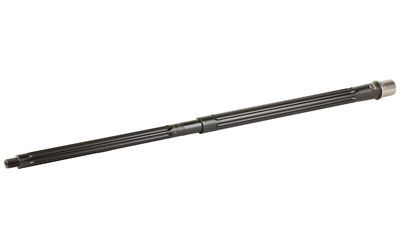

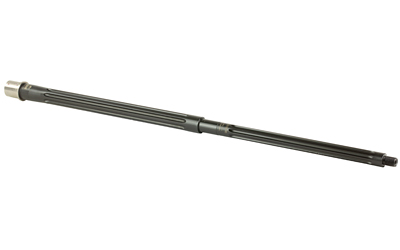

- Faxon Match Series .22 ARC 24" Heavy Fluted Nitride Barrel
Frequently Asked Questions
What bolt do I need to run the Faxon .22 ARC barrel?
The .22 ARC uses a 6.5 Grendel-type bolt or bolt carrier group for proper headspacing, which it shares with the 6mm ARC. A standard 5.56 BCG will not work without swapping the bolt. Magazines built for 6.5 Grendel or 6mm ARC will feed the cartridge reliably.
Why choose a 24-inch barrel for the .22 ARC?
The longer 24-inch tube lets the powder burn more completely, squeezing extra velocity out of the cartridge for flatter trajectories and better downrange energy. That's a big part of what makes the .22 ARC such a strong long-range option in an AR-15. For precision, varmint, and long-range steel work, it's the length most shooters gravitate toward.
Will my muzzle devices and suppressors fit this Faxon Match Series barrel?
Yes, the barrel comes with 1/2×28 muzzle threads, which is the common thread pitch for .22-caliber brakes, flash hiders, and suppressors. Most .22-cal devices you already own should thread right on. Faxon suggests pairing an adjustable gas block for the best cycling, especially if you plan to run it suppressed.
How accurate is the 5R rifling and 1:7 twist on this barrel?
The 1:7 twist is fast enough to stabilize the heavy, high-BC bullets the .22 ARC was designed around, and 5R rifling reduces bullet deformation and fouling for more consistent groups. Combined with the 416-R stainless build and match chambering, it's set up to deliver the kind of accuracy precision shooters expect. Every barrel is individually MPI inspected and headspaced with PTG gauges before it ships.
