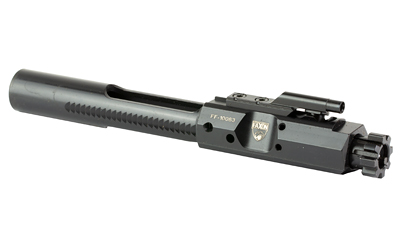

The bolt carrier group is the beating heart of any AR build, and Faxon treats it that way. This Gen 2 unit takes MIL-SPEC as a floor rather than a finish line, pairing a 9310 tool steel bolt with a full salt bath nitride treatment across the whole assembly. The result is a carrier that cycles cleaner, extracts reliably, and holds up under the higher pressures that come with large-frame calibers. It works across .308 Winchester, 7.62 NATO, 6.5 Creedmoor, and 8.6 Blackout, so one BCG covers a lot of ground for builders who like to swap barrels.
The 9310 tool steel bolt is stronger than the more common C158, and it is fully heat treated, shot peened, and magnetic particle inspected (MPI) so you know the material is sound before it ever leaves the shop. The back of the bolt lugs gets a 45-degree chamfer, which helps the action lock up dependably even with hot handloads or fast, lightweight setups. Nested .308-spec springs and a pre-installed O-ring round out the extractor side for consistent extraction.
The entire assembly wears a QPQ salt bath nitride finish. Instead of relying on oil retention the way phosphate does, nitride hardens the surface of the steel itself, which means better corrosion resistance and a slicker running surface. On top of that, Faxon adds their proprietary Superfinish to knock down friction even further, so the carrier runs smoother, fouls less, and wipes clean with a lot less effort. The gas key is machined with grade 8 fasteners and fully staked for a lifetime of hard use.
This is a DPMS Gen 1 compatible carrier, which is the most common large-frame pattern out there, so it fits the vast majority of AR-10 style rifles. As with any BCG paired to a barrel it was not headspaced against, have the headspace checked before firing. Do that up front and you have got a durable, smooth-running core for your next big-bore build.
It is built to the DPMS Gen 1 pattern, which is by far the most common large-frame standard, so it fits the majority of AR-10 and LR-308 style rifles. It will not work in Armalite-pattern rifles, since those use different dimensions. If you are unsure, confirm whether your upper and barrel are DPMS-pattern before ordering.
Yes, if you are pairing it with a barrel that Faxon did not headspace against, you should have the headspace verified before firing. Any large-frame BCG matched to a new barrel deserves this step for safe, reliable function. A gunsmith or a set of quality headspace gauges will get it done quickly.
Nitride hardens the surface of the steel itself rather than relying on oil retention the way phosphate does, so you get better corrosion resistance and a slicker running surface. That translates to smoother cycling, less fouling, and easier cleanup. It is one of the reasons this BCG holds up so well in high-round-count and suppressed builds.
Yes. Those calibers share a bolt face and work with properly configured DPMS-pattern large-frame rifles, so this single Faxon Gen 2 BCG covers all three. That flexibility is handy if you plan to swap barrels down the road. Always verify barrel and bolt compatibility to keep headspace safe when you make a change.
| UPC | 816341026544 |
|---|---|
| Manufacturer | |
| Manufacturer Part Number | FF308BCGCNITRIDE-02 |
| Model | |
| Product Type | Bolt Carrier Group |
| Color | Black |
