Description

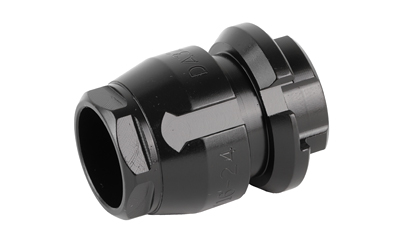

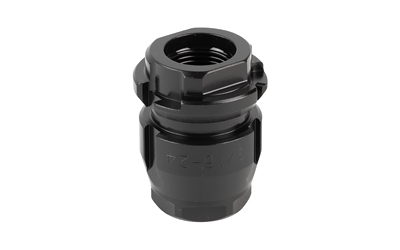

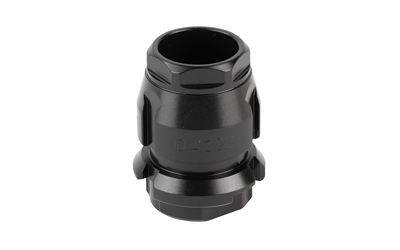

Dead Air took the KeyMo mounting system and stripped it down to the essentials with the KeyMo Zero. At just 1.385 inches long and 2.2 ounces, this 9/16-24 mount sits shorter than a standard KeyMo brake, which means less of the mount pokes into your suppressor's blast chamber. That matters more than you might think. Less intrusion means more usable volume inside the can, and more volume means better sound performance. If you run a shorter suppressor where every bit of internal space counts, this little mount earns its keep quickly.
Why the KeyMo Zero Beats Threading Straight On
The big draw here is repeatability. Thread the KeyMo Zero onto your barrel once, and from then on your KeyMo or KeyMicro equipped suppressor spins on and locks up in seconds, returning to the same position every time. When it's time to come off, the design resists carbon-locking, so you won't find yourself wrestling a seized can off the mount after a long range day. Anyone who has fought a carbon-welded direct thread suppressor knows exactly why that feature is worth having.
Built Like Every Dead Air Mount
Dead Air machines the KeyMo Zero from 4140HT chromium-molybdenum heat-treated steel and coats it in black nitride for wear and corrosion resistance. The body includes 3/4 inch wrench and socket flats, so installation is straightforward with tools you already own. With a 1.08 inch outside diameter, it keeps a slim profile on the muzzle whether the suppressor is mounted or not.
Fitment Notes for the DA323
This version, model DA323, carries a right-hand 9/16-24 thread pattern with a through bore sized for 9mm and .357 caliber bores, and it works with any Dead Air silencer running a KeyMo or KeyMicro adapter. Just match the mount's bore and your suppressor's caliber rating to the host barrel and you're set. For a small part, it makes a real difference in how convenient and quiet your suppressed setup runs.
Key Specifications
- Manufacturer: Dead Air Silencers
- Manufacturer Part Number: DA323
- UPC: 810128161619
- Model: KeyMo Zero
- Thread Pattern: 9/16-24 RH
- Through Bore: 9mm/.357
- Material: 4140HT Chromium-Molybdenum Heat-Treated Steel
- Finish: Black Nitride
- Length: 1.385 in
- Outside Diameter: 1.08 in
- Weight: 2.2 oz
- Tool Interface: 3/4 in wrench and socket flats
- Compatibility: Dead Air KeyMo and KeyMicro adapter-equipped silencers
What’s Included
- Dead Air KeyMo Zero mount, 9/16-24
Frequently Asked Questions
Which suppressors work with the Dead Air KeyMo Zero?
The KeyMo Zero works with any Dead Air suppressor equipped with a KeyMo or KeyMicro adapter. That covers a wide range of the Dead Air lineup, including cans like the Nomad and Sandman series when set up with the KeyMo interface. Just make sure your suppressor's caliber rating matches your host barrel.
What caliber is the DA323 KeyMo Zero sized for?
The DA323 has a 9/16-24 right-hand thread with a through bore sized for 9mm and .357 caliber projectiles per Dead Air's specs. That makes it a natural fit for hosts like .350 Legend and other barrels cut with 9/16-24 threads. Always pair it with a suppressor rated for the cartridge you're shooting.
How is the KeyMo Zero different from a standard KeyMo muzzle brake?
The Zero is a minimalist mount rather than a brake, so it skips the braking ports in favor of a shorter, lighter profile. At 1.385 inches and 2.2 ounces, it extends less into the suppressor's blast chamber, which preserves internal volume and helps the can run quieter. It's a great pick if you don't want brake blast when shooting unsuppressed.
Will my suppressor carbon-lock onto the KeyMo Zero mount?
No, resisting carbon-lock is one of the main perks of the KeyMo system. The suppressor comes off the mount cleanly even after heavy use, unlike direct thread setups that can seize from carbon buildup. That keeps swapping your can between hosts quick and painless.
