Dead Air DA001 Shim Kit 1/2-28 Muzzle Device Timing Shims

UPC: 810128160605

$10.99

Out of stock

Online inventory may differ from in-store availability.

Fast Shipping

Quick turnaround so you get your gear sooner.

Secure FFL-Friendly Checkout

Trusted checkout with industry-standard protection.

Family-Owned Business

Keeping Traditions Alive Since 1953

Secure Transactions provided with

Description

There is nothing more annoying than torquing down a muzzle brake only to watch it stop a quarter turn shy of level. Crush washers get you close, but shims get you exact, and that matters a lot more once a suppressor is hanging off the end of that device. The Dead Air DA001 Shim Kit gives you ten precision shims for 1/2-28 threaded barrels, the standard pitch for 5.56, .223, and most 9mm hosts, so you can index your brake, flash hider, or KeyMo and Xeno mount dead level with a solid shoulder behind it.

How the DA001 Shim Kit Sorts Itself Out

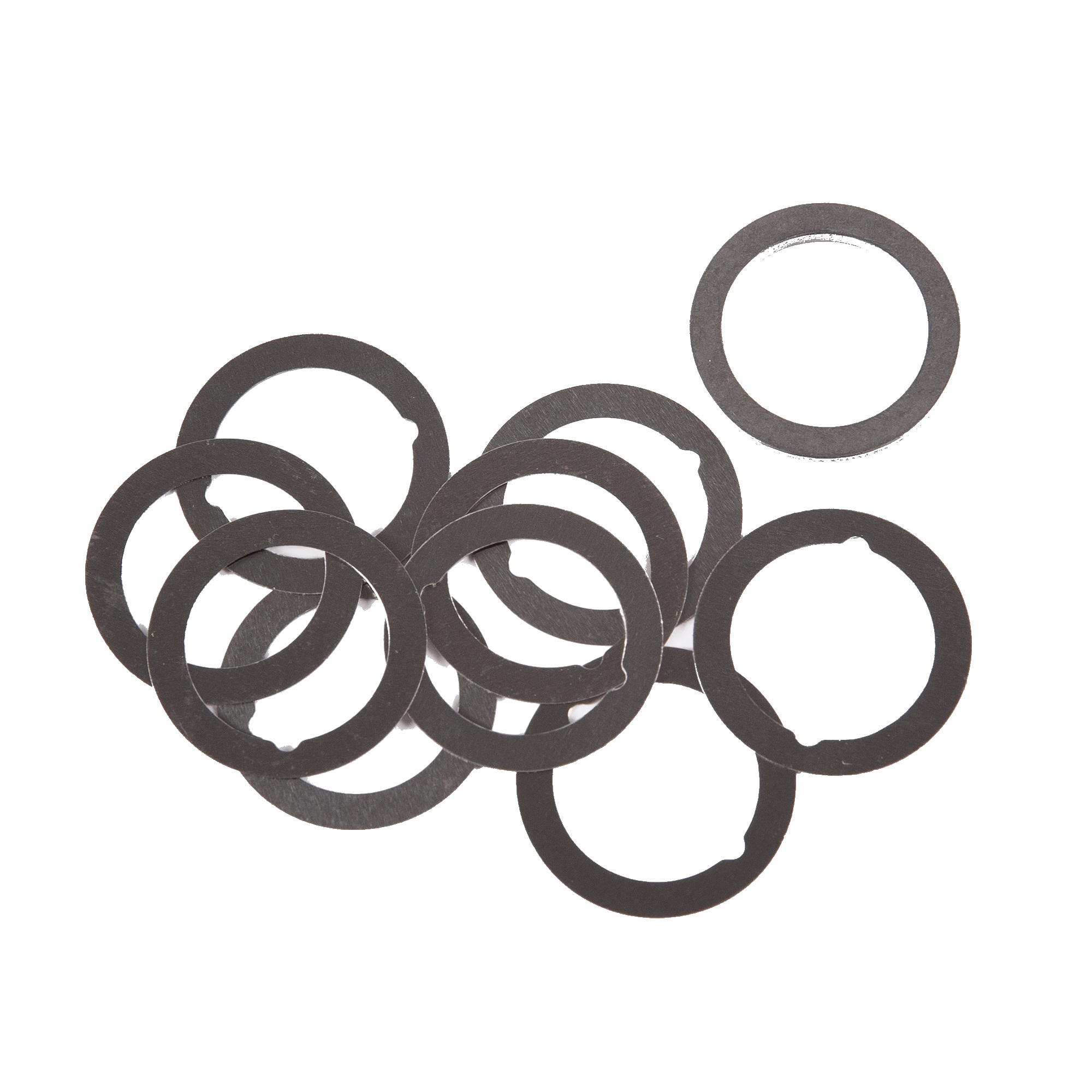

Dead Air made this kit easy to work with by notching the shims so you can tell them apart at a glance. The single-notch shims measure .004 inch and rotate the device roughly 40 degrees, about a ninth of a turn. The two-notch shims run .006 inch for around 60 degrees, or a sixth of a turn. The one plain shim with no notches is the thick .060 inch piece, good for about 1.7 turns when you need a big jump or a spacer to start from. You get four of the thin ones, five of the mediums, and one of the thick, and the packaging includes a graphic that spells out which is which.

Installing With the Dead Air 1/2-28 Shim Kit

The process is simple. Thread your device on hand tight, note how far past level it lands, then stack shims to make up the difference. Always put the thickest shim on the barrel first and work down from there, mixing thins and mediums until the device torques up exactly where you want it. Unlike a crush washer, a shim stack gives you a flat, repeatable surface, which is exactly what you want under a suppressor mount where alignment counts.

If you run 5/8-24 barrels too, Dead Air offers the same setup as the DA002. For anything wearing 1/2-28 threads, this little kit earns a permanent spot in the range bag.

Key Specifications

  • Manufacturer: Dead Air Silencers
  • Manufacturer Part Number: DA001
  • UPC: 810128160605
  • Model: Shim Kit
  • Thread Pattern: 1/2"-28 tpi
  • Shim Thicknesses: .004", .006", .060"
  • One Notch Shim: .004" thick, ~40 degree rotation, qty 4
  • Two Notch Shim: .006" thick, ~60 degree rotation, qty 5
  • No Notch Shim: .060" thick, ~1.7 turns, qty 1
  • Total Shim Count: 10
  • Material: Alloy Steel
  • Compatible Calibers: 5.56 NATO / .223 Rem / 9mm (1/2-28 barrels)
  • Package Length: 4.40"
  • Shipping Weight: 0.01 lb

What’s Included

  • 4 shims, .004" thick (one notch)
  • 5 shims, .006" thick (two notches)
  • 1 shim, .060" thick (no notch)
  • Packaging card with shim identification graphic

Frequently Asked Questions

How do I tell the shims in the Dead Air DA001 kit apart?

Each thickness carries its own marking. One notch means .004 inch, two notches means .006 inch, and the shim with no notches is the thick .060 inch piece. The packaging card also has a graphic laying it all out, so keep it around for reference.

What order should I stack the shims in?

Dead Air says to always put the thickest shim on the barrel first, then add thinner ones until your device times up level. Thread the device on hand tight first to see how much rotation you need to make up, then build the stack from there.

Will the DA001 shim kit work with muzzle devices from other brands?

Yes. While it pairs naturally with Dead Air KeyMo and Xeno mounts, these are standard 1/2-28 shims that will time any brake, flash hider, or suppressor mount on a barrel with that thread pitch. That covers most 5.56, .223, and 9mm threaded barrels.

Is this better than using a crush washer?

For anything holding a suppressor, most folks would say yes. Shims give the device a flat, solid shoulder to torque against, which keeps everything square to the bore and makes the install repeatable. Crush washers deform unevenly and can cock a mount slightly off axis, which is a risk you do not want with a can attached.

Additional information

UPC

810128160605

Manufacturer

Manufacturer Part Number

DA001

Length

4.40"

Model

Package Height

1.0

Package Width

4.5

Product Type

Accessory-Silencer Accessories

Shipping Weight

0.005

Thread Pattern

1/2"-28
