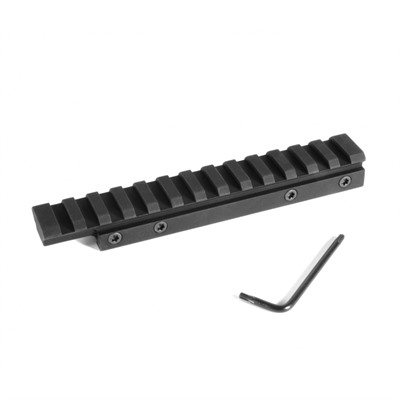

EGW HD CZ 452 453 455 511 512 11mm Dovetail Picatinny Rail 20 MOA

UPC: 841370109333

$81.00

3 in stock

Online inventory may differ from in-store availability.

Fast Shipping

Quick turnaround so you get your gear sooner.

Secure FFL-Friendly Checkout

Trusted checkout with industry-standard protection.

Family-Owned Business

Keeping Traditions Alive Since 1953

Secure Transactions provided with

Description

If you own a CZ rimfire with an 11mm dovetail, this EGW Heavy Duty rail is one of the easiest upgrades you can make to it. It converts that narrow factory dovetail into a full Picatinny interface, so you can run modern rings and optics instead of being stuck with specialty rimfire mounts. The whole thing is machined from solid 7075 T6 aircraft-grade aluminum, which is noticeably stronger and stiffer than the 6061 you find on a lot of budget rails, and it gets a Type III matte black hardcoat anodized finish that holds up to real use.

The big reason to reach for this particular version is the 20 MOA of built-in elevation. That forward cant gives your scope more usable travel for reaching out to longer distances, which matters a lot with .22 LR, .17 HMR, and .22 WMR since those rounds drop fast. EGW suggests the 20 MOA rail for shooting roughly in the 150 to 300 yard window, while the flat 0 MOA version is the pick if you mostly stay inside 150 yards. Picatinny cross slots run the full length of the rail, so you've got plenty of room to slide rings fore and aft and get your eye relief dialed in right.

Fitment on Your CZ 11mm Dovetail

This base is built for the 11mm dovetail, not the 3/8 inch version, and the two are not interchangeable. The easy way to check is to measure across the top of your receiver's dovetail cuts. If it comes out to about 0.437 inches, you've got the 11mm and this rail is the right one. It fits the CZ 452, 453, 455, 511, and 512, along with the Sako Finnfire M94 S, and it works on the CZ 457 as well, though it sits about an inch shorter than the full receiver on that model. One thing worth noting is that this is a right-handed base only.

Getting Your EGW Rail Mounted Right

Installation is straightforward and needs no drilling or tapping. It comes with the mounting screws and a T-15 bit, so you have what you need to get it on. EGW calls for torquing the screws to spec and a drop of blue thread locker is a smart touch to keep everything put under recoil and handling. The rail accepts any standard Picatinny or Weaver rings, so pairing it with an optic is simple.

Key Specifications

  • Manufacturer: EGW (Evolution Gun Works)
  • Manufacturer Part Number: 80912
  • UPC: 841370109333
  • Rail Type: One Piece Picatinny
  • MOA: 20 MOA
  • Dovetail Width: 11mm (measures approx. 0.437 in)
  • Material: 7075 T6 Aircraft Grade Aluminum
  • Finish: Matte Black Type III Hardcoat Anodized
  • Overall Length: 5.575 in
  • Height: 0.540 in (top of receiver to top of Picatinny)
  • Center Spread: 4.169 in
  • Weight: 2.5 oz
  • Torque Spec: 25 in/lbs
  • Handedness: Right-Handed only
  • Ring Compatibility: Picatinny or Weaver rings
  • Fits: CZ 452, 453, 455, 511, 512, Sako Finnfire M94 S

What’s Included

  • One-piece 20 MOA Picatinny rail
  • #6-32 x 3/4 mounting screws
  • T-15 bit

Frequently Asked Questions

How do I know if my CZ has an 11mm dovetail for this rail?

Measure straight across the top of the dovetail cuts on your receiver. If you get roughly 0.437 inches, you have the 11mm dovetail and this rail is the correct one. If you measure about 0.5 inches, you have the 3/8 inch dovetail and will need the 3/8 version instead.

What does the 20 MOA on this CZ Picatinny rail actually do for me?

The 20 MOA is a built-in forward cant that gives your scope more usable elevation travel for longer shots. EGW recommends it for shooting in roughly the 150 to 300 yard range. If you mostly shoot inside 150 yards, the flat 0 MOA version is the better match.

Which rifles does the EGW 80912 rail fit?

It fits the CZ 452, 453, 455, 511, and 512 with 11mm dovetails, plus the Sako Finnfire M94 S. It also works on the CZ 457, though it sits about an inch shorter than the full receiver on that model. Keep in mind this base is right-handed only.

Do I need to drill or tap my rifle to install this rail?

No drilling or tapping is required. The rail mounts directly to the factory 11mm dovetail using the included screws and T-15 bit. Torque the screws to spec and a drop of blue thread locker is a good idea to keep everything secure.

Additional information

UPC

841370109333

Manufacturer

Manufacturer Part Number

80912

Action

Color

Black

Length

8.2000

Model

Style

Picatinny Rail
