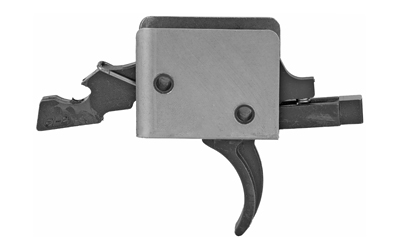

CMC pretty much invented the drop-in AR trigger, and this curved single-stage unit is the one that put them on the map. Everything lives inside a self-contained cassette, so instead of fiddling with loose hammers, disconnectors, and springs that all have to be fitted just right, you push two pins, drop in a finished assembly, and you are done. The pull weight is set at the factory between 3 and 3.5 pounds and is not user adjustable, which means the crisp, repeatable break is dialed in before it ever leaves Texas.
This is the classic curved bow shape, and it earns its reputation. There is almost no take-up before the break, no gritty creep leading into the hammer release, and a positive reset that snaps back fast for quick follow-up shots. The curve keeps your trigger finger indexed the same way every time, so your placement stays consistent shot after shot. It is a real upgrade for anyone coming off a heavy factory trigger in the 7 to 8 pound range.
The hammer is lightened and driven by a high-power Rocket Wire spring, which does two things: it keeps lock time short for better accuracy, and it maintains reliable ignition with both commercial and surplus ammo. The internals are encased in 8620 alloy steel with S7 tool steel components, so the working parts stay protected from carbon, grit, and whatever else finds its way into a lower receiver. Sear engagement surfaces get a proprietary machining process for a superior finish and tight dimensional control.
This is the small pin version, built for the .154 diameter trigger and hammer pin holes found on most MIL-SPEC AR-15, AR-10, and LR-308 lowers. If your rifle is not a Colt, or your Colt was made before 1991 or after 2009, it takes a small pin. The included CMC anti-walk pin set locks the assembly in place and keeps everything from wandering under recoil.
This is the small pin version, so it fits most standard MIL-SPEC lowers with .154 diameter trigger and hammer pin holes, including AR-15, AR-10, and LR-308 rifles. If your rifle is not a Colt, or it is a Colt made before 1991 or after 2009, you need the small pin, which is this one. If you are unsure, push an existing pin out far enough to measure it: .154 is small and .172 is large.
Not at all, and that is the whole point of the drop-in cassette design. You clear the rifle, remove the old fire control parts, drop the self-contained unit into the lower, and secure it with the included anti-walk pins. Most people knock it out in around 15 minutes, though CMC recommends a gunsmith if you are not comfortable working on your rifle.
No, the 3 to 3.5 pound pull is set and tested at the factory and is not user adjustable. That fixed setup is actually a benefit, since every unit ships with a consistent, proven break rather than something you have to tune yourself. Keep in mind pull weight can read slightly different from rifle to rifle depending on your scale and setup.
Yes. The lightened hammer runs on a high-power Rocket Wire spring designed to deliver dependable ignition with both commercial and military surplus ammunition. The short lock time it produces also helps with accuracy by getting the primer struck faster after the break.
| UPC | 850544004008 |
|---|---|
| Manufacturer | |
| Manufacturer Part Number | 91501 |
| Color | TRIGGER |
| Length | 7.4000 |
| Model | |
| Product Type | Trigger |
| Shipping Weight | 0.2313 |
| Style | Curved |
| Units per Box | 1 |
