Description
The Bergara B-14 20 MOA two-piece rail base is the factory answer for anyone building a long-range setup on a Bergara or Remington 700 long action. That 20 MOA of built-in downward cant is the whole point here. It shifts your scope's elevation adjustment so you can dial for distance without running out of internal travel, which keeps the reticle closer to the center of the erector tube where glass performs its best. If you've ever topped out your turret trying to stretch past 500 yards, this is the fix.
Why the 20 MOA Cant Earns Its Keep
A flat zero-MOA base is fine for closer work, but once you start reaching out, you want every bit of usable elevation your scope can give. The angled geometry on this Bergara rail base buys you that extra range, which is why it's a favorite for hunters chasing long shots and target folks running big dials. Pair it with proper rings and you've got a mounting system that stays true through recoil and repeated zeroing.
Fitment and Hardware on the B-14 Rail Base
This one is cut for Remington 700-style long actions and fits Bergara B-14 and Premier rifles built on that footprint. Because Bergara and Remington actions can use different screw sizes depending on the model, the kit ships with both #6-48 and #8-40 screws so you've got the right hardware in the box. It's a two-piece design, so it keeps things light and lets you work around the ejection port and loading. A matte black anodized finish rounds it out and matches most factory bluing and Cerakote nicely.
Installation is straightforward with a Torx bit and a dab of removable thread locker. Clean the receiver holes, snug the screws evenly, and torque to spec. From there you're ready to drop in rings and get your optic squared away for the range or the backcountry.
Key Specifications
- Manufacturer: Bergara
- Manufacturer Part Number: BA0018
- Model: B-14
- UPC: 043125000661
- Type: Two-Piece Scope Rail Base
- Elevation Cant: 20 MOA
- Material: Aluminum
- Finish: Matte Black Anodized
- Fitment: Bergara B-14 / Premier and Remington 700-Style Long Actions
- Included Hardware: #6-48 and #8-40 Screws
- Shipping Weight: 0.129 lbs
What’s Included

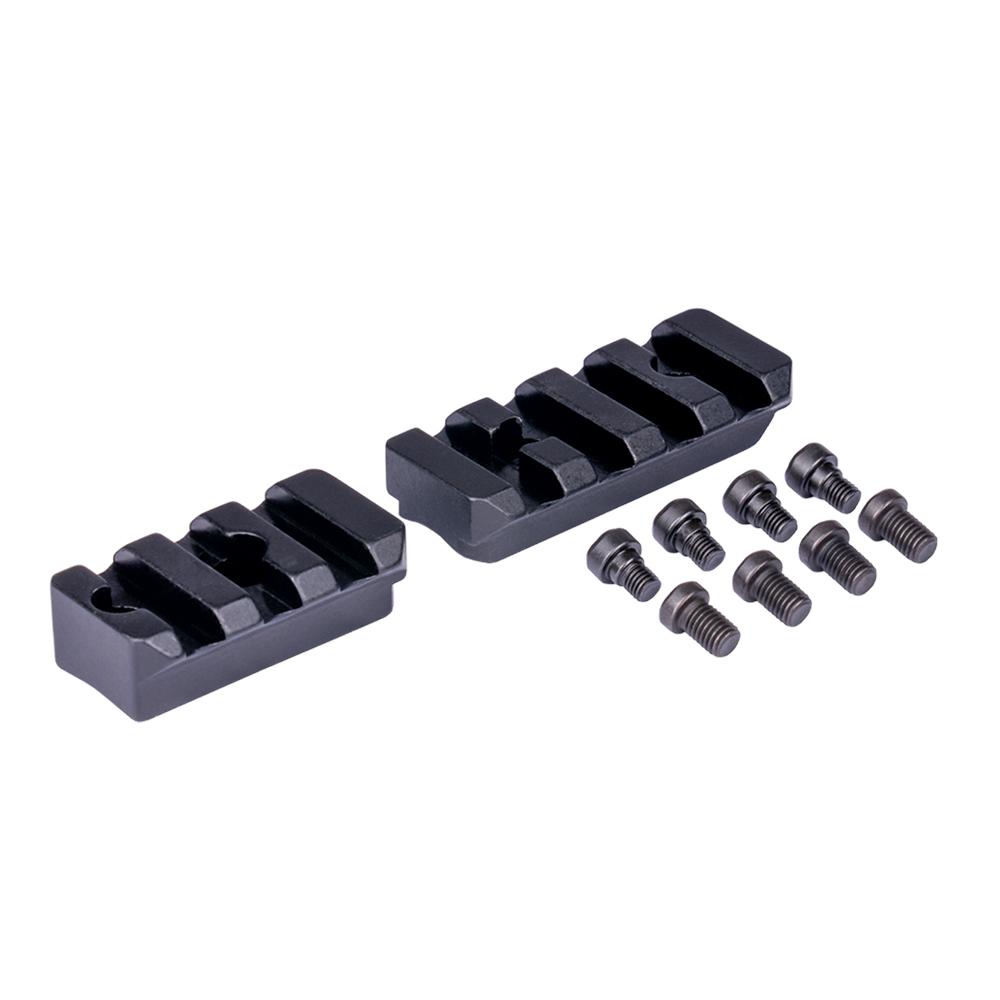

- Two-piece 20 MOA rail base set
- #6-48 mounting screws
- #8-40 mounting screws
Frequently Asked Questions
What rifles does the Bergara B-14 20 MOA rail base fit?
It's designed for Remington 700-style long actions and fits Bergara B-14 and Premier rifles built on that long action footprint. If your rifle uses a Remington 700 long action pattern, this base is made to mount up. Double-check that you have a long action and not a short action before ordering, since the hole spacing differs.
Why would I want a 20 MOA base instead of a flat zero-MOA one?
The 20 MOA cant adds downward angle so your scope has more usable elevation travel for long-range shooting. That lets you dial out to distance without maxing out your turret, and it keeps the reticle nearer the optical center where your glass is sharpest. For most folks, 20 MOA is the sweet spot for work out past 500 yards.
Does the Bergara 20 MOA rail base come with mounting screws?
Yes, it ships with both #6-48 and #8-40 screws. Bergara and Remington actions can use different screw sizes depending on the model, so having both sets in the box means you'll have the correct hardware on hand for your receiver.
Is this a one-piece or two-piece design?
This is a two-piece rail base, meaning it mounts as a front and rear section rather than one continuous bar. The two-piece layout keeps weight down and gives you clean access around the action. You'll still want a matched set of rings to attach your optic.
