Barnes LRX 7mm (.284) 168gr Boat Tail Reloading Bullets, 50/Box

UPC: 716876284078

$53.99

4 in stock

Online inventory may differ from in-store availability.

Fast Shipping

Quick turnaround so you get your gear sooner.

Secure FFL-Friendly Checkout

Trusted checkout with industry-standard protection.

Family-Owned Business

Keeping Traditions Alive Since 1953

Secure Transactions provided with

Description

The Barnes LRX 7mm (.284) 168gr is a monolithic copper, polymer-tipped hunting bullet built for reloaders who want to stretch their 7mm out to distance without giving up terminal punch. Barnes took the proven design philosophy behind the TTSX and lengthened the profile and boat tail to push the ballistic coefficient up to around .550 (G1), which keeps the bullet bucking wind and holding velocity way downrange. With a sectional density of .298 and an overall length right around 1.59 inches, this is a long, sleek projectile that earns its spot in cartridges like the 7mm Rem Mag, 7mm PRC, 280 Ackley Improved, and 7 SAUM.

What Sets the LRX 7mm 168gr Apart

Being all copper means there's no lead core to separate, so weight retention stays high and penetration stays deep even on tough, thick-skinned animals. The polymer tip resists deformation in the magazine and kicks off reliable expansion on impact, where the scored nose cavity peels back into four razor-sharp petals that open a wide wound channel and dump energy through the whole cavity. For elk, big mule deer, and other heavy game, that combination of expansion and retained mass is exactly what you want.

Loading and Twist Notes for the 168gr LRX

Barnes designed these around modern optics and modern barrels, so plan on a 1:8 twist or faster to stabilize the long 168-grain profile properly. The Accu-Groove rings machined into the shank cut down on copper fouling and help relieve pressure, which tends to make these friendly to tune. Because copper monolithics are longer than lead-core bullets of the same weight, seating depth matters, so start low and work up using published Barnes data for your specific cartridge. There is a lot of load data out there for this bullet across dozens of calibers, which makes it easy to find a recipe that shoots well in your rifle.

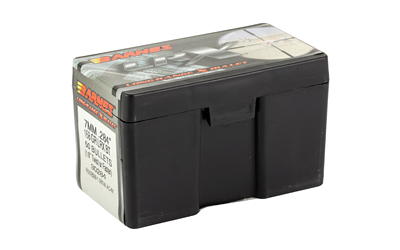

Every box holds 50 projectiles, giving you plenty to work through load development and still have hunting ammo ready for the season.

Key Specifications

  • Manufacturer: Barnes
  • Model: LRX (Long-Range X)
  • MPN: 30284
  • UPC: 716876284078
  • Caliber: 7mm
  • Bullet Diameter: .284"
  • Bullet Weight: 168 Grain
  • Bullet Type: LRX Boat Tail
  • Tip Material: Polymer
  • Core/Jacket Material: Copper Solid (monolithic, lead free)
  • Ballistic Coefficient (G1): .550
  • Sectional Density: .298
  • Overall Length: 1.592"
  • Recommended Twist Rate: 1:8" or faster
  • Recommended Use: Long-Range Big Game Hunting
  • Quantity: 50 Per Box

What’s Included

  • 50 Barnes LRX 7mm (.284) 168gr boat tail reloading bullets

Frequently Asked Questions

What twist rate do I need to stabilize the 7mm 168gr LRX?

Barnes recommends a 1:8 twist or faster for this bullet. The 168-grain LRX runs a long profile for its weight because it's all copper, so a faster twist keeps it stable and accurate. If your barrel is slower than 1:8, you may see better results with a lighter LRX in the same caliber.

Is the Barnes LRX 7mm a loaded cartridge or a component bullet?

This is a component bullet for handloading only, not finished ammunition. You'll need to seat it in your own cases with the appropriate powder and primer. Barnes publishes load data for the 168gr LRX across a wide range of 7mm cartridges to get you started.

What game is the 168gr LRX best suited for?

It shines on medium and large big game, including whitetail, mule deer, and elk, especially at longer ranges. The monolithic copper build retains nearly all its weight and penetrates deep, while the polymer tip and scored nose drive reliable four-petal expansion. That mix of penetration and energy transfer is why hunters trust it on tougher animals.

Why does Barnes use Accu-Groove rings on the LRX shank?

The machined grooves reduce the bearing surface that contacts the bore, which cuts down on copper fouling and helps relieve chamber pressure. The practical upside is easier barrel maintenance and a bullet that tends to tune nicely during load development. It's a feature carried over from the proven TSX and TTSX family.

Additional information

UPC

716876284078

Manufacturer

Manufacturer Part Number

30284

Bullet Caliber

7mm

Caliber/Gauge

284 Caliber

Grains

168

Model

Product Type

Boat Tail

Quantity

50 Per Box

Shipping Weight

1.3125

Units per Box

50
