Description

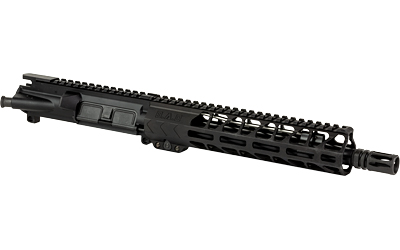

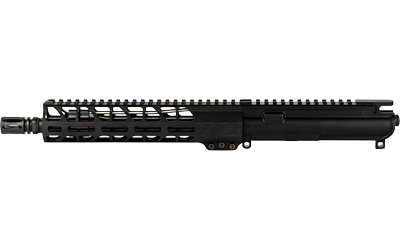

The Battle Arms Development Workhorse 10.5in 5.56 NATO upper is one of those parts that lives up to its name. It's a complete gas-impingement upper aimed at folks building a short, handy carbine or braced pistol who want reliable components without chasing down every piece separately. You get a forged 7075-T6 aluminum receiver with a hard coat anodized black finish, M4 feed ramp cuts, and a forward assist and dust cover already installed, so it's ready to run once you add a bolt carrier group and charging handle.
What Makes the Workhorse 10.5" Upper Tick
At the heart of it sits a Rosco Manufacturing 10.5-inch barrel made from 4150 chrome-moly vanadium steel with a nitride finish for corrosion and wear resistance. The 1:7 twist handles the full range of 5.56 NATO and .223 loads, from lightweight varmint bullets to heavier match rounds, and the carbine-length gas system is the right call for a barrel this short since it gives you the dwell time needed for dependable cycling. A .750 low-profile gas block, M4 barrel extension, and a 1/2×28 threaded muzzle wearing an A2 flash hider round out the barreled section.
Handguard and Real-World Fit
Wrapping the barrel is the Workhorse 9.5-inch M-LOK free-float rail. You get M-LOK slots at the 3, 6, and 9 o'clock positions for lights, lasers, hand stops, and sling mounts, plus a full-length Picatinny top rail for optics and backup irons. Being free-float, the handguard doesn't touch the barrel, which helps consistency downrange, and it keeps the whole package trim and easy to maneuver in tight spaces.
This upper is set up as a foundation piece, so it does not ship with a BCG or charging handle. That's on purpose, letting you run the bolt and handle you already trust. Bolt it to a stripped or complete lower, add your internals, and you've got a compact 5.56 that punches well above its size for home defense, truck-gun duty, or plain fun at the range.
Key Specifications
- Manufacturer: Battle Arms Development
- Model: Workhorse
- Manufacturer Part Number: WH-UR-10.5-556
- UPC: 810033783784
- Caliber: .223 Rem / 5.56 NATO
- Barrel Length: 10.5 in
- Barrel Material: 4150 Chrome-Moly Vanadium (Rosco Mfg)
- Barrel Finish: Nitride
- Twist Rate: 1:7
- Gas System: Carbine Length
- Gas Block: .750 Low-Profile
- Muzzle Thread: 1/2×28
- Muzzle Device: A2 Flash Hider
- Handguard: Workhorse 9.5 in M-LOK Free-Float Rail
- Receiver Material: Forged 7075-T6 Aluminum
- Finish: Black Hard Coat Anodized
What’s Included
- Complete Workhorse 10.5in 5.56 NATO upper receiver assembly
- 10.5in Rosco 4150 CMV nitride barrel (installed)
- .750 low-profile gas block and gas tube (installed)
- Workhorse 9.5in M-LOK free-float handguard (installed)
- A2 flash hider (installed)
- Forward assist and dust cover (installed)
Frequently Asked Questions
Does the Workhorse 10.5in upper come with a bolt carrier group and charging handle?
No, this upper ships without a BCG or charging handle. That lets you run the bolt carrier group and charging handle you prefer or already own. You'll need to add both before the upper is ready to fire.
What gas system length does this 10.5-inch Workhorse upper use?
It uses a carbine-length gas system, which is the standard and reliable choice for a 10.5-inch barrel. The shorter dwell time on a barrel this length needs the carbine gas port location to cycle consistently. It runs well with a variety of 5.56 and .223 loads.
Will this Battle Arms Development Workhorse upper fit my existing AR-15 lower?
Yes, it's built on a forged 7075-T6 receiver with standard M4 dimensions and feed ramp cuts, so it mates up with any mil-spec AR-15 lower. Just line up the takedown and pivot pins and you're set. Add your BCG and charging handle to complete the rifle or pistol build.
What can I mount on the 9.5-inch M-LOK handguard?
The Workhorse rail has M-LOK slots at the 3, 6, and 9 o'clock positions for lights, lasers, hand stops, bipods, and sling mounts. The full-length top Picatinny rail handles optics, red dots, and backup iron sights. Because it's free-float, your accessories won't put pressure on the barrel.
