Description
Anyone who has built a lower knows the front pivot pin can turn a five-minute job into a knuckle-scraping battle with detents and springs flying across the room. Battle Arms Development set out to fix that headache with the BAD Enhanced Pin Set, and this red anodized aluminum version brings that upgrade with a splash of color for your AR-15. It is a complete pivot and takedown pin set built to drop into any standard lower.
These pins are precision CNC machined from 7075-T6 aluminum and finished in a rich red anodize. They fit all AR15/M16/M4 lower receivers using the Mil-Spec .250 inch front pivot and rear takedown pin holes, so no special machining or oversized holes are needed. The pin heads sit lower than standard Mil-Spec pinheads, which keeps them out of the way and low drag, and the head design leaves clearance for a right-side ambidextrous safety selector lever. The sides are knurled and tapered inward to give you a genuinely solid grip when you are working the pins by hand.
What the BAD Enhanced Pin Set Solves
The standout feature is the EZ Guide Channel on the pivot pin, which makes that dreaded installation assisted and drama-free. No more lost detents and springs. The extended tips run about .030 inch longer than Mil-Spec, which gives you enough to start pushing the pins out from the left side without them sticking out awkwardly. Each tip also has a cone-shaped bullet guide recess, so a punch or the tip of a round stays put instead of slipping and gouging your receiver.
Why Builders Reach for These Pins
Beyond the color, the appeal is in the fit and feel. Owners report that the machining is tight and clean, often snugging up side-to-side wiggle between the upper and lower, and that the pins push out with fingertips once installed. Proudly designed and manufactured in the U.S.A., this is a small part that punches above its weight for anyone building or refreshing a rifle.
Key Specifications
- Manufacturer: Battle Arms Development
- Manufacturer Part Number: BAD-EPS-AL-RED
- UPC: 810033785559
- Material: 7075-T6 Aluminum
- Finish: Red Anodized
- Color: Red
- Pin Diameter: .250 in (Mil-Spec)
- Fitment: AR-15 / M16 / M4 Lower Receivers
- Extended Tip Length: +0.030 in over Mil-Spec
- Machining: Precision CNC Machined
- Country of Origin: USA

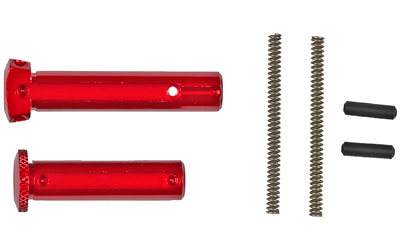

What’s Included
- 1 Enhanced Takedown Pin (BAD-ETP)
- 1 Enhanced Pivot Pin (BAD-EPP)
- 2 KNS hardened stainless steel detents
- 2 17-7 nickel plated stainless steel pin springs
Frequently Asked Questions
Will the BAD aluminum pins fit my AR-15 lower?
Yes. This set fits all AR15/M16/M4 lower receivers that use the standard Mil-Spec .250 inch front pivot and rear takedown pin holes. That covers the vast majority of AR-15 lowers on the market, so no special drilling or modification is needed.
What comes in the BAD Enhanced Pin Set?
You get both pins in the set, meaning one Enhanced Takedown Pin and one Enhanced Pivot Pin, along with two KNS hardened stainless steel detents and two nickel plated stainless steel springs. It has everything needed to replace your existing pins in one go.
Does the takedown pin work with an ambidextrous safety selector?
It does. The Enhanced Takedown Pin head was designed with a lower, trimmed profile so it does not obstruct a right-side ambidextrous safety selector lever. That is a common sticking point with some aftermarket pins, and BAD engineered around it.
Is the EZ Guide Channel really easier for installing the pivot pin?
That is the whole point of it. The patent pending EZ Guide Channel on the pivot pin gives you an assisted path during installation, so you are far less likely to launch a detent and spring across the room. It is one of the main reasons builders reach for this set over plain Mil-Spec pins.
