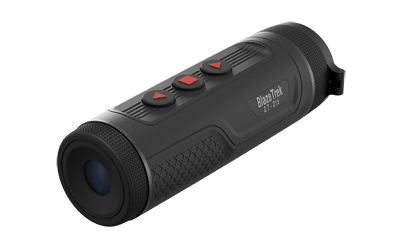

ATN Blaze Trek 325 Thermal Monocular 384×288 2.7-21x

Description

The ATN Blaze Trek 325 is a compact thermal monocular built for field observation and general-purpose thermal imaging. It uses a 12-micron sensor with a 384×288 detector array and a wide 2.7–21x magnification range to support varied viewing distances. The unit offers a 50 Hz frame rate and an AMOLED display for smooth, high-contrast imagery. Integrated recording and Wi‑Fi connectivity make it simple to capture and review thermal photos and video in the field.

Key Specifications

• The sensor resolution is 384×288 with a 12 µm pixel pitch.
• The frame rate is 50 Hz for fluid image updates.
• Magnification ranges from 2.7x to 21x for flexible observation.
• The field of view measures 10.90 x 8.20 degrees.
• The display is an 800×600 AMOLED screen.
• The objective lens diameter is 25 mm.
• Thermal sensitivity (NETD) is listed as <25 mK.
• The body weight is approximately 0.70 lbs.
• The housing carries an IP67 ingress protection rating.
• Built-in features include video recording and Wi‑Fi connectivity for image transfer and remote viewing.

Compact and purpose-built, the Blaze Trek 325 combines a high-resolution thermal sensor, variable magnification and rugged, weather-resistant construction for reliable field use. Its onboard recording and wireless connectivity simplify documentation and review, while the AMOLED display and 50 Hz refresh rate keep imagery clear and responsive during extended observation sessions.
