Description

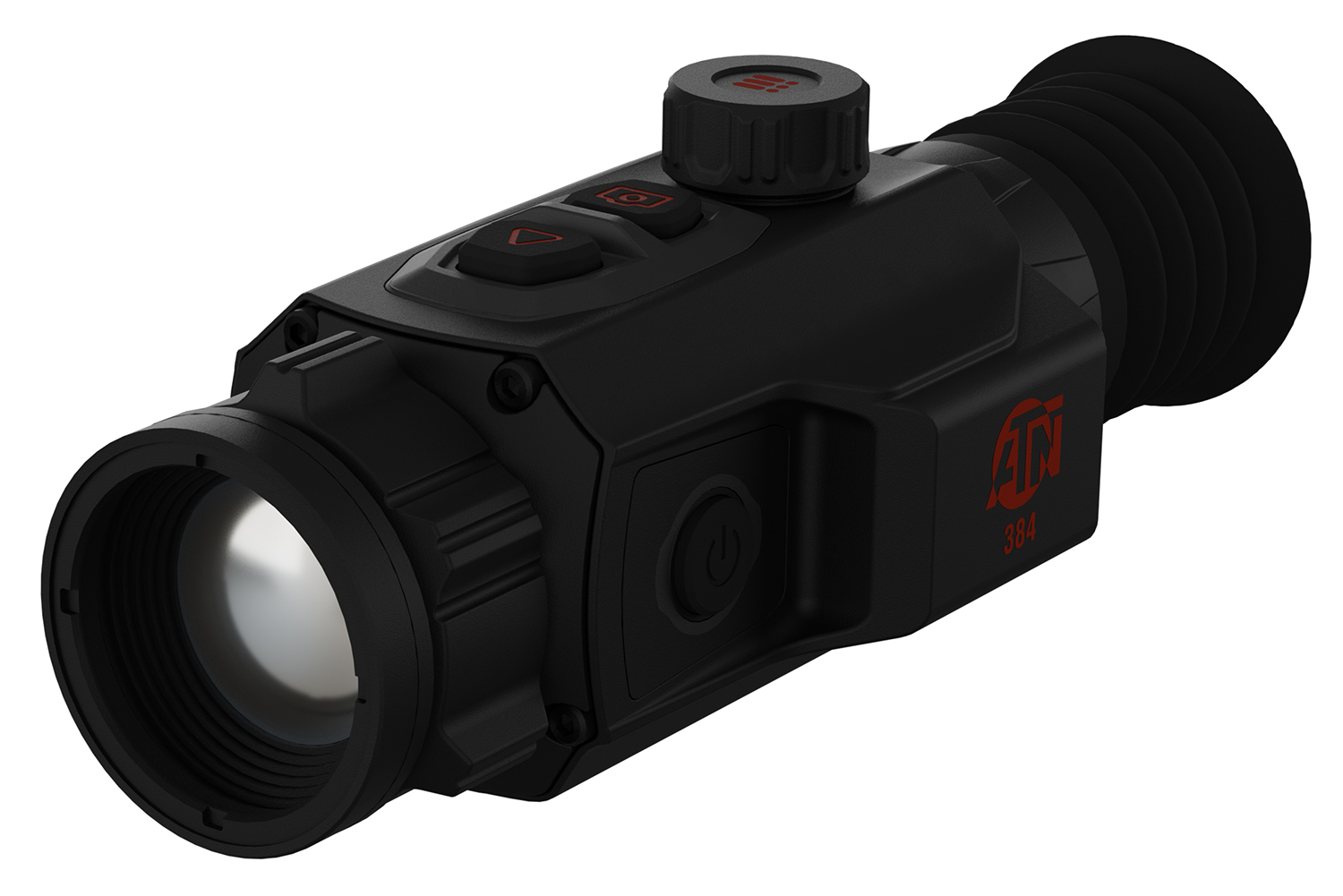

The ATN ThOR 6 Mini is a compact thermal riflescope built around a 12 µm uncooled VOx core in the 384×288 configuration. It provides a 2.5–20x magnification range through a 25 mm objective and presents imagery on a 0.49″ OLED with 1920×1080 resolution. The unit pairs a magnesium-alloy body with onboard features such as Wi‑Fi hotspot, video/audio recording, and 64 GB of internal storage for extended field use. Its IP67 rating and rapid startup support dependable operation in adverse conditions.
Key Specifications
- Sensor resolution is 384×288.
- Magnification range is 2.5–20x.
- Objective lens diameter is 25 mm.
- Detector type is a 12 µm VOx uncooled focal plane array.
- Frame rate / refresh rate is 50 Hz.
- Thermal sensitivity (NETD) is 18 mK.
- Reported detection range is 2300 (unit varies in source data).
- Display is a 0.49″ OLED at 1920×1080.
- Power is provided by 1 × 18650 rechargeable battery and supports external USB-C power.
- Ingress protection rating is IP67.
With its combination of compact size, high-resolution thermal imaging, and practical field features—like onboard recording, Wi‑Fi, and substantial internal storage—the ThOR 6 Mini is suited to users who need a portable thermal optic for property management, low-light observation, and precision fieldwork. Its rugged construction and feature set make it a versatile addition to a serious optics kit.
