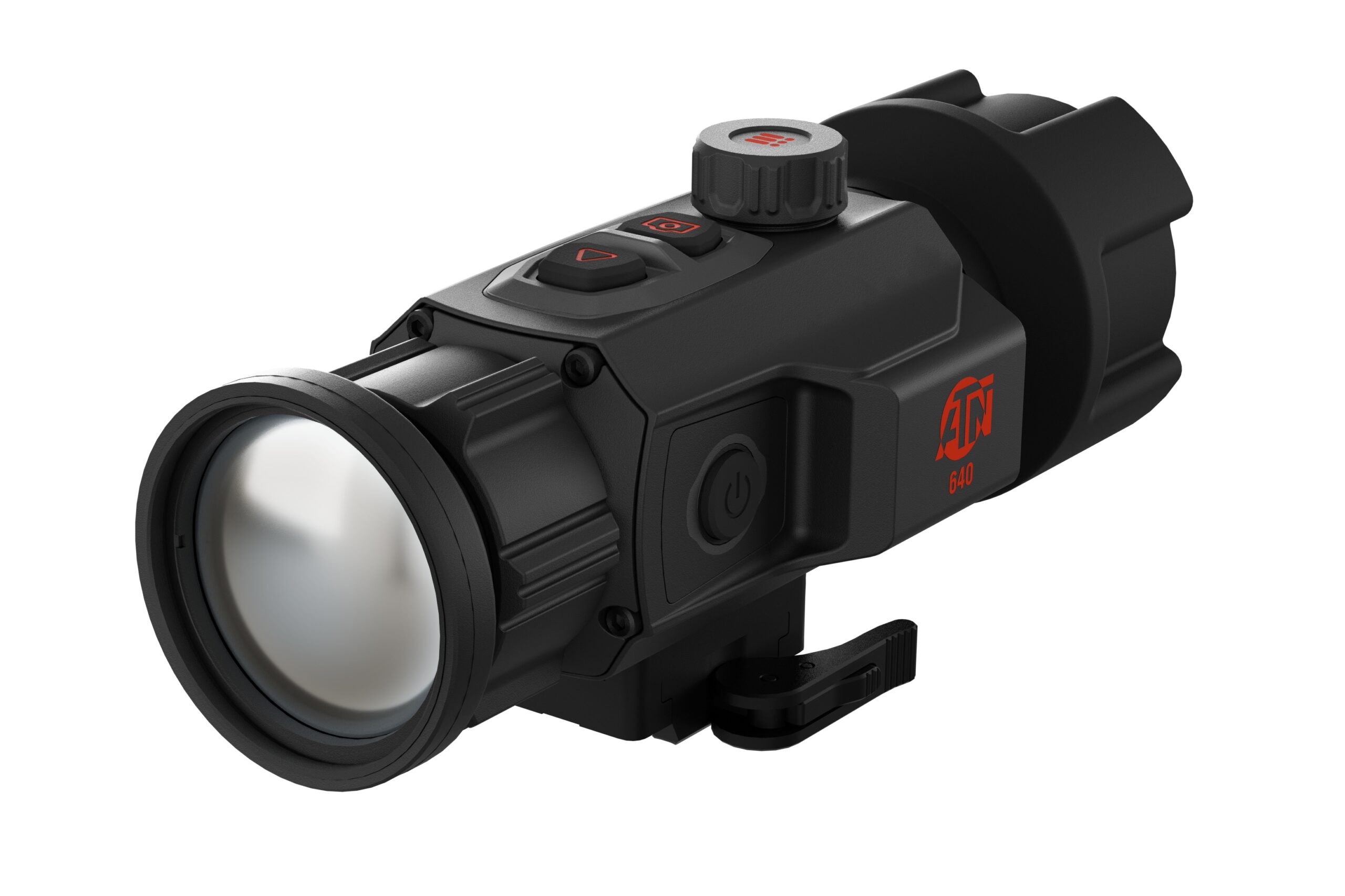

ATN TICO 6 640×512 Thermal Clip-On

Description

The ATN TICO 6 is a thermal clip-on designed to convert compatible day optics into thermal imaging systems while preserving the host scope’s configuration. It uses a high-resolution 640×512 sensor paired with a 50 mm, f/1.0 lens and provides a 1× optical view suitable for use with low- to mid-power day scopes. Built with a magnesium-alloy housing and a quick-detach mount, the unit also functions as a handheld monocular and includes integrated recording, wireless connectivity, and onboard sensors for operational awareness.

Key Specifications

• The detector type is a 12 µm VOx uncooled focal plane array.
• The sensor resolution is 640×512.
• The refresh rate is 50 Hz.
• The thermal sensitivity (NETD) is 18 mK.
• The lens system is a 50 mm, f/1.0 optical assembly.
• The field of view is 8.8° × 7.0° (HxV).
• The optical magnification is 1×.
• The listed detection range is 3500 m.
• The display is a 0.49″ OLED (1920×1080) and the unit includes 64 GB internal storage with video/audio recording.
• Power is provided by one replaceable 18650 rechargeable battery with approximately 7 hours of runtime.

Rugged, versatile and feature-rich, the TICO 6 delivers high-resolution thermal imagery and practical recording/connectivity options in a compact package. Its removable eyepiece and quick-detach mounting make it adaptable for field scanning, observation, or use with a compatible day scope; integrated sensors and wireless features extend situational awareness and simplify data capture for documentation or review.
