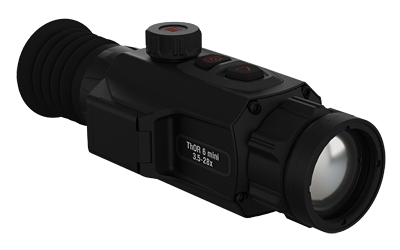

ATN ThOR 6 Mini 3.5-28x 384×288 Thermal

Description

The ATN ThOR 6 Mini is a compact thermal riflescope built around a 12 µm VOx uncooled focal plane array and a 384×288 sensor. It provides a variable 3.5–28× optical magnification range with a 35 mm F/1.0 lens and a high-resolution 0.49″ 1920×1080 OLED display. Designed for extended field use, the unit supports onboard video/audio recording, Wi‑Fi hotspot connectivity with a mobile app, and a replaceable 18650 rechargeable battery. The housing is magnesium alloy and the scope carries IP67 ingress protection for use in varied outdoor conditions.

Key Specifications

• Magnification range is 3.5–28× to cover close and extended observation distances.
• Sensor resolution is 384×288, driven by a 12 µm VOx thermal core.
• Thermal sensitivity (NETD) is ~18 mK for improved contrast in low-difference scenes.
• Objective lens is 35 mm, F/1.0 to gather thermal energy efficiently.
• Frame rate operates at 50 Hz for smooth image refresh.
• Detection range is specified as 2710 m (manufacturer provided detection value).
• Display is a 0.49″ 1920×1080 OLED delivering a high-resolution viewfinder image.
• Digital zoom options include 1×, 2×, 4×, 8× for additional magnification steps.
• Internal storage is 64 GB for recorded video and images.
• Power is provided by a replaceable 1× 18650 rechargeable battery and it supports external USB‑C power; operating electronics are rated IP67.

ATN’s ThOR 6 Mini combines advanced imaging features — including SharpIR AI edge enhancement, Picture-in-Picture, Recoil Activated Video, built-in Wi‑Fi and mobile app support — with a compact magnesium-alloy chassis and generous onboard storage. The result is a versatile thermal optic suitable for observation, distance detection, and field applications where reliable thermal imaging and on-board recording are required.
