ATN ThOR 6 Mini 3-24x 640×512 Thermal Scope

Description

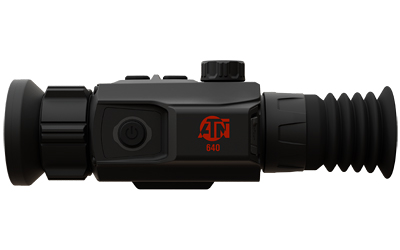

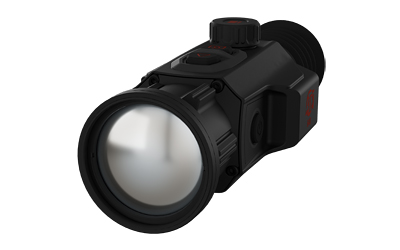

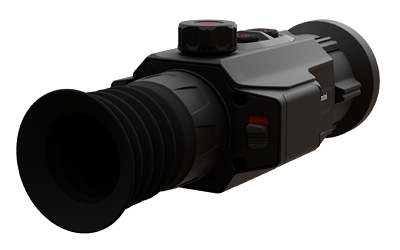

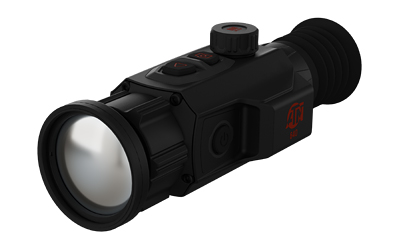

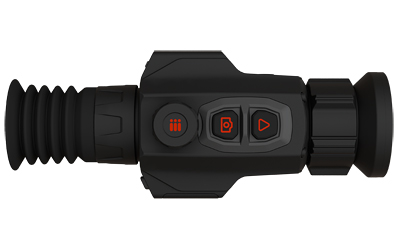

The ATN ThOR 6 Mini is a compact thermal riflescope engineered for observation and field use where reliable thermal imaging and integrated data capture are required. It pairs a high-resolution 640×512 thermal sensor with a 50 mm objective and a wide 3–24× magnification range to provide detailed imagery at extended distances. The optic includes onboard recording, wireless connectivity, and multiple color palettes for flexible situational awareness. Built with a magnesium-alloy body and IP67 protection, it is intended for demanding outdoor environments.

Key Specifications

• The model is ATN ThOR 6 Mini.
• The magnification range is 3–24x.
• The sensor resolution is 640×512.
• The detector type is 12 µm VOx uncooled focal plane array.
• The objective lens is 50 mm, f/1.0.
• The refresh/frame rate is 50 Hz.
• The display is a 0.49″ OLED at 1920×1080.
• The digital zoom options are 1×, 2×, 4×, 8×.
• The internal storage capacity is 64 GB.
• The power uses 1 × 18650 replaceable battery (approx. 7 hrs reported).

Compact, feature-rich and purpose-built, the ThOR 6 Mini delivers high-resolution thermal imaging, integrated recording, and wireless connectivity in a lightweight package suitable for extended field use. Its combination of a 50 mm lens, step-and-smooth zoom, and multiple palettes supports clear observation and documentation in varied conditions while the rugged magnesium-alloy construction and IP67 rating provide durability for outdoor operations.
