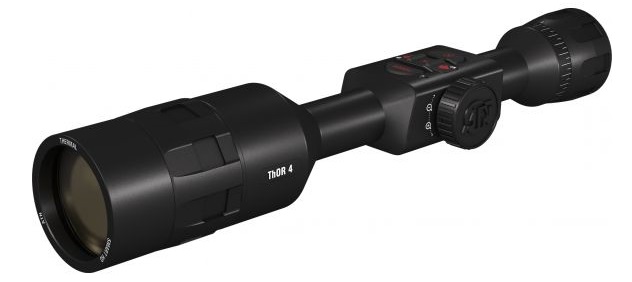

ATN THOR 4 Thermal Scope 7-28x 384×288

Description

The ATN THOR 4 is a digital thermal riflescope built around ATN’s Obsidian IV Dual Core platform and a Gen 4 384×288 sensor at 60 Hz. It provides a variable 7x–28x magnification range and a 1280×720 HD microdisplay for clear digital imaging and reticle options. The scope includes integrated features such as a ballistic calculator, 3D gyroscope and accelerometer, e-barometer, electronic compass and RAV (Recoil Activated Video) recording to a microSD card. Designed for extended field use, the THOR 4 is engineered for extended battery life and weather resistance.

Key Specifications

• Magnification range is 7x–28x for variable zoom across observation distances.
• Sensor resolution is 384×288 with a 60 Hz frame rate for smooth thermal imaging.
• Micro display provides a 1280×720 HD image to the shooter.
• Video record capability supports 1280×960 @ 30/60 fps for onboard recording.
• Internal battery delivers 18+ hours of continuous operation per ATN specifications.
• Ballistic calculator and RAV (Recoil Activated Video) are included for assisted aiming and event capture.
• Reticle options include multiple patterns and color choices to suit user preference.
• Mounting uses 30 mm standard rings (included) for common ring-based installations.
• Detection, recognition, and identification ranges are listed as 3000 yd / 1320 yd / 720 yd respectively.
• Objective lens diameter is 19 mm and eye relief is 90 mm.

With advanced sensor electronics, a long-running internal battery, and integrated ballistic and navigation aids, the THOR 4 is designed for sustained field use in low-light and no-light conditions. Its combination of thermal imaging, variable magnification and digital features makes it suitable for observation, surveillance, and precision observation tasks where sustained performance and data capture are important.
