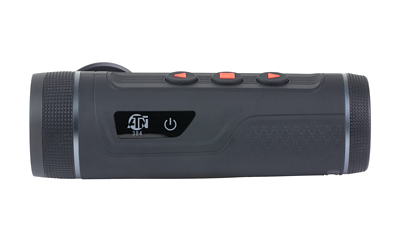

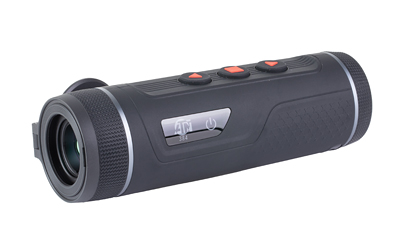

ATN BlazeTrek 319 Gen 6 Thermal Monocular 2.25-18x

Description

The ATN BlazeTrek 319 Gen 6 is a compact thermal monocular built on ATN’s sixth-generation thermal engine for fast processing and efficient power use. This configuration uses a 384 x 288 thermal sensor paired with a 19 mm objective and offers 2.25–18x magnification for flexible observation at multiple ranges. It presents imagery on an 800 x 600 OLED display and includes onboard recording, wireless connectivity, and USB-C external power support for extended field use. The housing is rated IP67 for protection against dust and immersion.

Key Specifications

• The sensor resolution is 384 x 288, as specified for this configuration.
• The magnification range is 2.25–18x for variable observation distances.
• The objective diameter measures 19 mm to match the listed optical format.
• The display is an 800 x 600 OLED screen for real-time viewing.
• The unit uses ATN’s 6th Generation Thermal Engine for image processing.
• The thermal detector uses a 12 micron pixel pitch as noted in supplier material.
• The listed sensitivity is ≤18 mK NETD for the described sensor variant.
• The refresh rate is 50 Hz for smooth scanning and movement rendering.
• The enclosure is rated IP67 for dust protection and temporary immersion.
• The package includes a Carry Case and the product color is Black.

Designed for field observation, night-time scanning, and documentation tasks, the BlazeTrek 319 Gen 6 balances performance and portability. Its combination of a sensitive thermal sensor, wide magnification range, onboard recording, and durable IP67 chassis makes it a practical choice for users who need consistent thermal imaging capability in varied environments.
