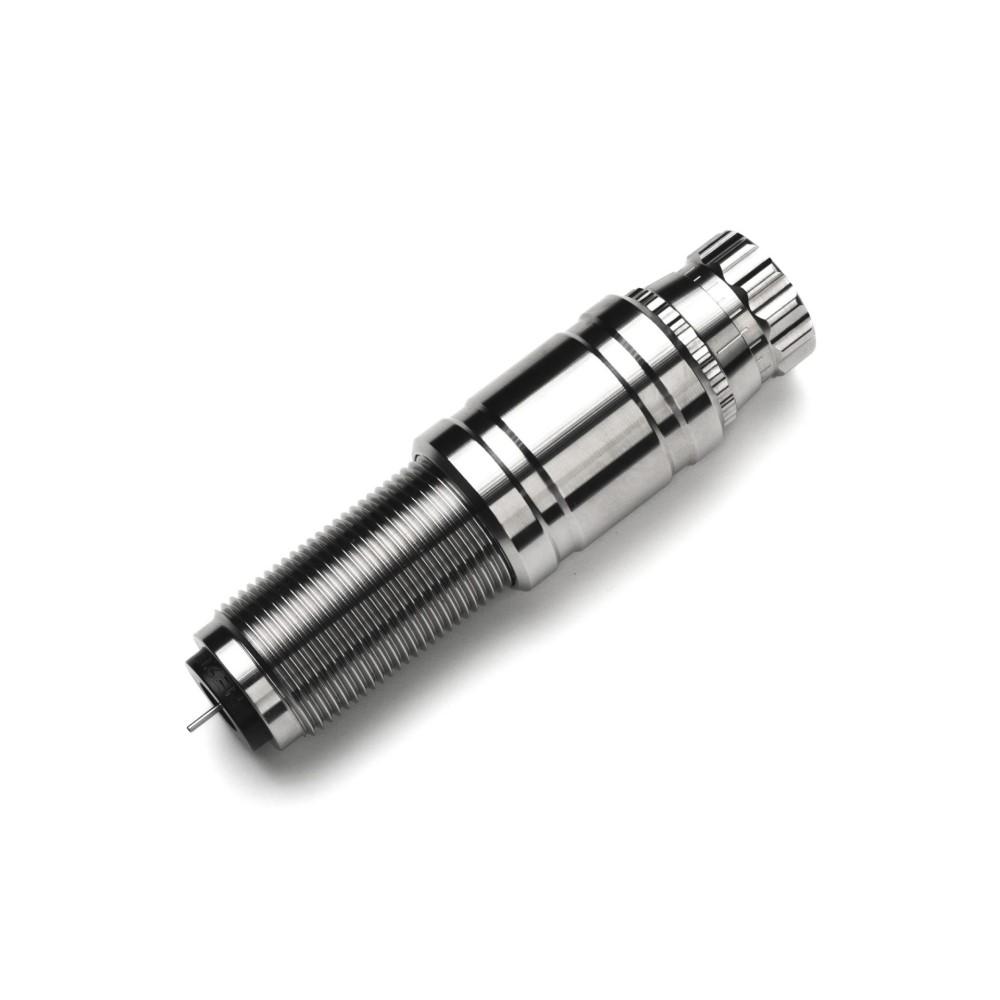

Area 419 built the Zero M-Series sizing die after years of living inside the reloading world and learning what other dies got right and where they fell short. The result is a .223 Rem die that treats sizing as a complete system rather than a pile of separate steps. Shoulder bump, body sizing, neck tension, and decapping all work together around one cartridge-specific sizing chamber, and the whole thing is reamer-cut to exact dimensions for a true size that keeps your bolt from getting sticky after a few firings.
The standout feature here is micrometer-adjustable headspace. Instead of fussing with shims, shellholder shims, or constantly repositioning the die body, you dial in your shoulder bump with a clearly indexed micrometer, much like you would on a quality seating die. The chamber moves against a fixed point for repeatable, consistent results every time you touch it. It also runs full-length neck-to-extractor sizing and a precision-ground expander mandrel that gives roughly .002 inches of neck tension right out of the box. Want different tension? Area 419's separate mandrel kit lets you fine-tune in small increments.
What Sets the Zero M-Series .223 Die Apart
This die uses a larger 1-1/4 inch body because Area 419 needed the extra room to pack in the sizing chamber, hydraulic shoulder pressure relief, and the spring ejection system for spent primers. That bigger footprint is also why it won't thread into a standard 7/8 inch press. You'll need a Hybrid or 1-1/4 inch turret on your ZERO press, or another press set up to accept the larger body.
Shell Holder You Actually Need Is Included
Standard shellholders do not work with this die. It requires a larger-diameter rim, and the good news is the matching Zero M-Series shell holder comes in the box, so you're not hunting for a part before you can load. Replaceable steel decap pins and a spring-loaded decapping setup round out a tool that's proudly made in America and built to earn a permanent spot on your bench.
Key Specifications
- Manufacturer: Area 419
- Caliber: .223 Rem / 5.56 NATO
- Die Type: Full-Length Sizing Die
- Series: Zero M-Series
- Die Body Thread: 1-1/4 inch
- Headspace Adjustment: Micrometer Adjustable Shoulder Bump
- Expander Mandrel: Precision Ground, approx .002 in neck tension
- Decapping: Spring Ejection, Replaceable Steel Decap Pins
- Shell Holder: Zero M-Series Large-Diameter (included)
- Press Compatibility: ZERO Hybrid or 1-1/4 inch Turret (not 7/8 inch presses)
- Country of Origin: Made in USA
- Manufacturer Part Number: 419-ZeroDie-M223SH
- UPC: 810080182172
What’s Included
- Zero M-Series .223 Rem sizing die
- Zero M-Series large-diameter shell holder
- Area 419 ZERO Die Ring
- .002 neck tension expander mandrel
- Spare decapping pin
- Install and removal tools
Frequently Asked Questions
What press do I need to run the Zero M-Series .223 die?
This is a 1-1/4 inch die, so it requires a Hybrid head or a 1-1/4 inch turret on your ZERO press, or another press set up to accept the larger body. It will not thread into a standard 7/8 inch turret or press. Check your setup before ordering so the die drops right in.
Does this die come with the shell holder I need?
Yes. The Zero M-Series die requires a larger-diameter shell holder rim and will not work with standard shellholders. The matching Zero M-Series shell holder is included, so you have everything needed to start sizing right away.
How does the micrometer headspace adjustment work?
The die lets you move the sizing chamber against a fixed point and dial in your shoulder bump with a clearly indexed micrometer. That means repeatable, consistent headspace settings without swapping shims or constantly repositioning the die body. It behaves much like the micrometer adjustment you'd find on a good seating die.
What neck tension does the included mandrel provide?
The die ships with a precision-ground expander mandrel that produces roughly .002 inches of neck tension, which works well for most .223 Rem loads. If you want to tune tension up or down, Area 419 offers a separate mandrel kit with additional increments. The mandrel sizes the entire neck in one pass for consistent results.
