Area 419 Zero M-Series Die Sleeve & Mandrel Kit .308 Win

UPC: 810080182899

$160.00

2 in stock

Online inventory may differ from in-store availability.

Fast Shipping

Quick turnaround so you get your gear sooner.

Secure FFL-Friendly Checkout

Trusted checkout with industry-standard protection.

Family-Owned Business

Keeping Traditions Alive Since 1953

Secure Transactions provided with

Description

If you already own an Area 419 Zero M-Series die body, this is the piece that unlocks the whole modular idea behind the system. The .308 Win Sleeve & Mandrel Kit gives you the internal sizing sleeve and mandrel that match what ships inside the complete dies, so you can either change your setup over to .308 or replace internals that have seen a lot of brass. Pop the insert into your existing die body, drop in the matching shellholder, and you're sizing a different caliber without tearing down your whole bench.

The sizing sleeve is reamer-cut to fully size the case body, which is a big part of why the Zero dies run clean brass with no sticky bolt after several firings. The mandrel is precision ground and set up to deliver roughly .002 inches of neck tension, the same standard spec Area 419 builds into the full dies. That means your neck sizing stays consistent and square because the neck is worked from the inside as the final step, not pulled through a floating expander.

Why the Zero M-Series Sleeve Kit Exists

Area 419 built the M-Series around swappable internals on purpose. Once you have the outer body, you can keep the same housing and just change the inner sleeve and mandrel to run different cartridges, which is exactly what reloaders have been raving about. Caliber changes take seconds, and you only pay for the insert instead of a full die every time you add a chambering to the rotation.

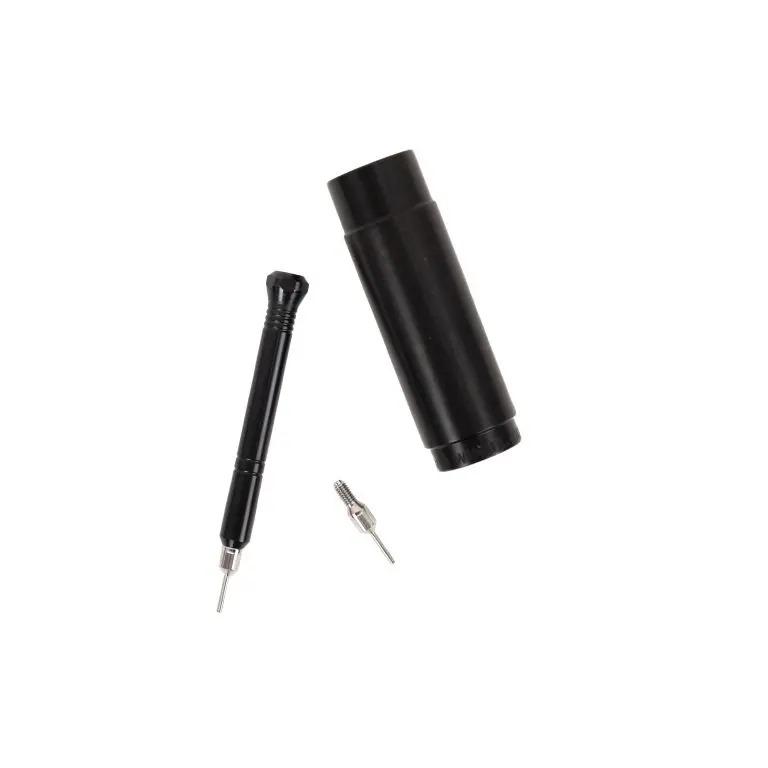

What Comes in the .308 Win Kit

The kit keeps it simple: one .308 Win sizing sleeve, one mandrel tuned for about .002 inches of neck tension, and a spare decapping pin so you've got a backup on hand. One thing to be clear on before you order, this is a replacement and conversion kit only. You need an existing Zero M-Series die body to use it, since the external die housing is not included.

Key Specifications

  • Manufacturer: Area 419
  • Manufacturer Part Number: 419ZeroDieSM30
  • UPC: 810080182899
  • Caliber: .308 Win / 7.62 NATO
  • Product Type: Replacement Sizing Sleeve & Mandrel Kit
  • Neck Tension: Approx. .002 inches
  • Mandrel: Full-length precision ground
  • Sizing Sleeve: Reamer-cut, full case body sizing
  • Compatibility: Area 419 Zero M-Series dies only
  • Shipping Weight: 0.67 lbs

What’s Included

  • One .308 Win sizing sleeve
  • One mandrel (approx. .002 inch neck tension)
  • One extra decapping pin

Frequently Asked Questions

Can I use this Zero M-Series Sleeve & Mandrel Kit without already owning an M-Series die?

No, this kit is a set of replacement and conversion internals only. It does not include the outer die body, so you need an existing Area 419 Zero M-Series die to use it. If you don't have one yet, start with a complete M-Series sizing die instead.

What does the mandrel in the .308 Win kit do for neck tension?

The precision-ground mandrel is set up to deliver approximately .002 inches of neck tension, which matches the standard spec that comes in the complete dies. It sizes the inside of the case neck as the final step, so you get a square, consistent neck without relying on a pull-through expander. That's a big reason reloaders trust the M-Series for repeatable results.

Will this kit let me change calibers with my existing die body?

Yes, that's the whole point of the modular design. Keep your same outer die housing and swap in this .308 sleeve and mandrel to run .308 Win. Many reloaders report caliber changes taking well under a minute once they've got the matching shellholder ready.

Is the sizing sleeve the same as what comes in the full M-Series die?

It is. The internal sleeve in this kit is identical to the one found inside the complete dies, so you get the same reamer-cut, full body sizing performance. That consistency is why it works as both a caliber conversion and a replacement for worn internals.

Additional information

UPC

810080182899

Manufacturer

Manufacturer Part Number

419ZeroDieSM30

Caliber/Gauge

.308 / 7.62 NATO

Shipping Weight

0.67
