Description
If you've ever tapped a plastic funnel to shake the last few kernels loose or watched one tip over and spill a charge, the Area 419 Master Funnel Kit is the fix. The whole system is machined from 6061-T6 aluminum, which means there's no static charge pulling kernels to the walls. Powder drops clean and keeps moving, and the solid metal build makes it a steadier, more trustworthy tool on a precision bench.
What sets this kit apart is the interchangeable head design. Each head threads onto the funnel body and is sized to the neck diameter of a specific caliber, so it seats solid on the case without relying on the case body to hold it in place. The bore through each head is cut a few thousandths under bullet diameter, which opens up the flow rate and lets you dump a big magnum charge without standing there waiting on it. There's also a 3/8 inch straight section at the top of each head that helps keep kernels from bouncing back out while you pour.
What Comes in the Master Funnel Kit

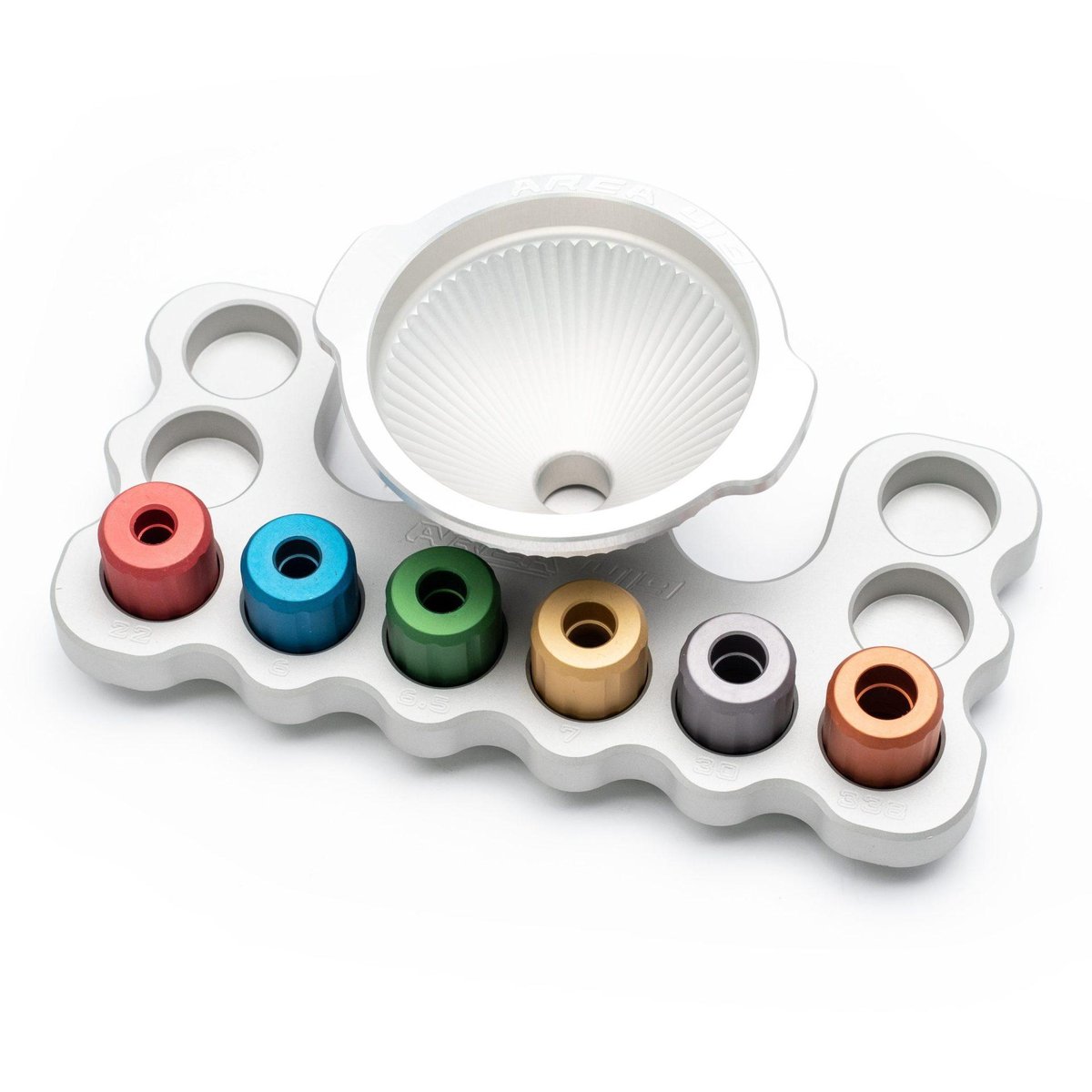

The kit covers the most common precision calibers right out of the gate with six color-coded heads: 22 cal, 6mm/243, 6.5mm/264, 7mm/284, 30 cal, and 338 cal. You get the billet funnel body, a machined handle for folks who like gripping from the side instead of the top, and a billet storage block to keep everything in one place. Worth noting, drop tubes and pistol caliber heads are sold separately if you want to expand the setup.
Bench Organization with the Area 419 Funnel Kit
The storage block is more than a holder. It cradles the funnel with or without a head attached and has ten spots for heads or drop tubes. The front six locations are engraved and color-matched to the head anodizing, so you grab the right one at a glance. Rubber feet underneath keep the block planted so it won't slide around while you work. It's a tidy, repeatable setup that fits right into a serious reloading workflow.
Key Specifications
- Manufacturer: Area 419
- Manufacturer Part Number: 419-FN-MASTER
- UPC: 853675008112
- Material: 6061-T6 Billet Aluminum
- Caliber Coverage: 22 through 338
- Included Heads: 22 cal, 6mm/243, 6.5mm/264, 7mm/284, 30 cal, 338 cal
- Color: Grey
- Storage Block Capacity: 10 slots for heads or drop tubes
- Country of Origin: United States of America
- Shipping Weight: 1.06 lbs
What’s Included
- (1) Billet aluminum funnel body
- (6) Caliber-specific color-coded heads (22 cal, 6mm/243, 6.5mm/264, 7mm/284, 30 cal, 338 cal)
- (1) Machined handle
- (1) Billet storage block
Frequently Asked Questions
What calibers does the Area 419 Master Funnel Kit cover?
The kit ships with six color-coded heads covering 22 cal, 6mm/243, 6.5mm/264, 7mm/284, 30 cal, and 338 cal. Each head is sized to the neck diameter of its caliber for a solid, stable fit. Calibers outside this range, including pistol heads, are available separately and can be added to the system.
Are drop tubes included with the Master Funnel Kit?
No, drop tubes are not part of this kit and are sold separately. The storage block does have slots to hold them if you decide to pick some up later. The kit itself includes the funnel body, six heads, a handle, and the storage block.
Why choose an aluminum funnel over a universal plastic one?
The billet 6061-T6 aluminum construction eliminates the static charge that makes plastic funnels cling to powder kernels, so you spend less time tapping and shaking. The caliber-specific heads also seat firmly on the case neck instead of relying on the case body, which prevents the tipping and spilling you get with universal designs. The wider bore on each head speeds up flow, which really helps when you're dumping heavy magnum charges.
Does the Master Funnel Kit help keep my bench organized?
Yes, the included billet storage block holds the funnel with or without a head attached and has ten spots for heads or drop tubes. The front six locations are engraved and color-matched to the head anodizing so you can grab the right one fast. Rubber feet on the bottom keep the block from sliding around while you work.
