Description

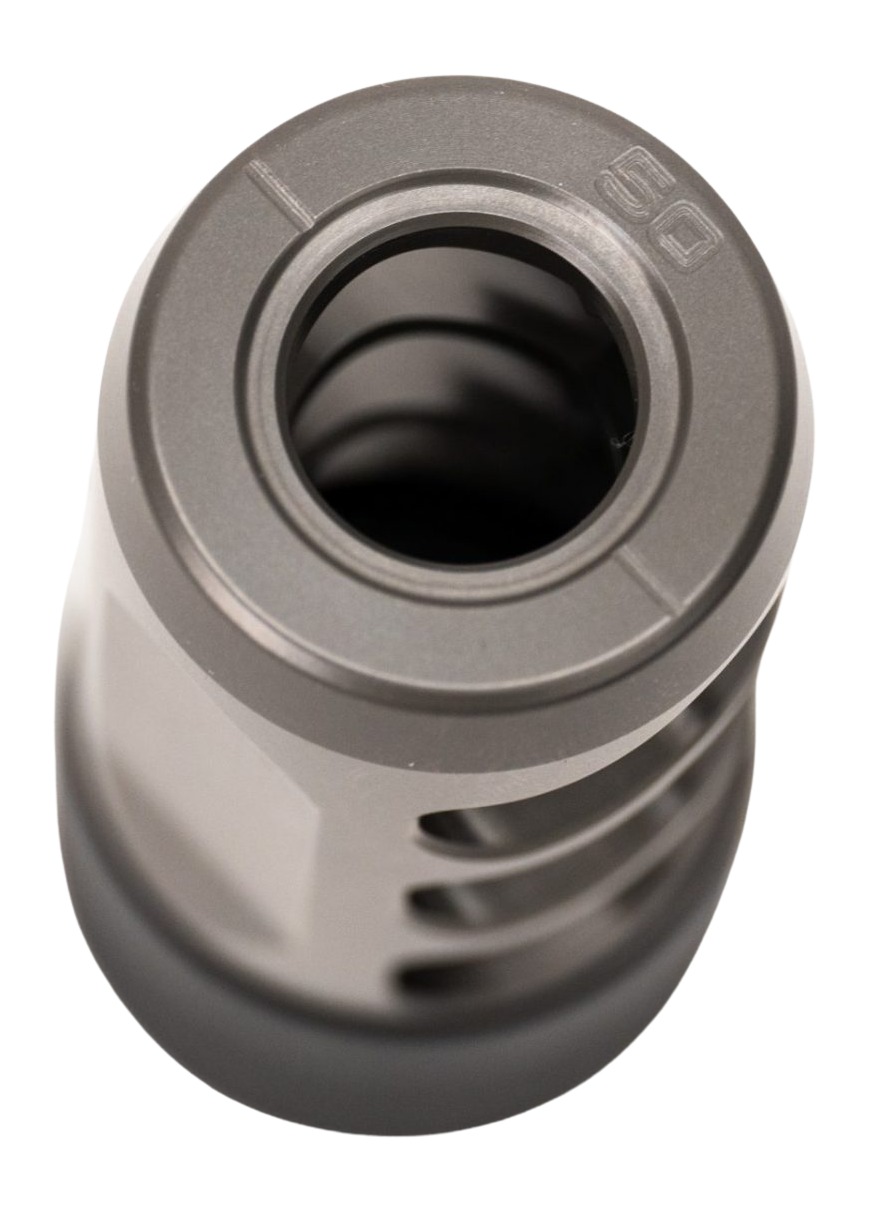

The Hellfire-Ti is Area 419's titanium take on the muzzle brake that changed how a lot of folks think about recoil control. It's CNC milled in Ohio from Grade 5 6Al-4V titanium with a stainless steel collar handling the mounting duties, so you get serious blast redirection without hanging a bunch of extra weight off the end of your barrel. This .50 caliber version covers everything up to and including cartridges like 450 Bushmaster and 50 Beowulf, but keep in mind it is not rated for 50 BMG. It comes set up for 5/8-24 threads.
What Makes the Hellfire-Ti Worth Bolting On
Titanium is the headline here. The .30 cal version runs about 2.8 ounces for the brake body and collar, roughly 30 percent lighter than the original Hellfire, and the 1.1 inch port diameter gives you around 27 percent more braking surface than the OG. A flatter first port cuts down on the concussion coming back at you, and the progressive upper port geometry works to keep the muzzle from climbing so you can watch your impacts through the scope. The gray titanium anodize also knocks down glare, which is a nice touch on a hunting rig.
Getting the Hellfire-Ti Timed and Mounted
This is where the Hellfire system earns its reputation. It's self-timing, so you torque the universal adapter onto your muzzle once and the brake locks into place perfectly clocked every time using a knurled collar. No crush washers, no shims, no sending the rifle off to a gunsmith to have the threads indexed. Return to zero is dependable too, so pulling the brake and reinstalling it shouldn't shift your point of impact. The whole thing screws onto a 5/8-24 threaded muzzle and the assembly adds about 2.5 inches from the thread shoulder, roughly 1.9 inches to your overall barrel length.
Shooters running heavy magnums consistently report that felt recoil drops down to something closer to a mild 6.5 Creedmoor thump, which makes long range sessions and load development a whole lot easier on the shoulder.
Key Specifications
- Manufacturer: Area 419
- Manufacturer Part Number: 419HFTI-500-5824
- UPC: 810080183407
- Caliber: .50 Caliber and Under
- Thread Pitch: 5/8-24
- Main Body Material: Grade 5 6Al-4V Titanium
- Collar Material: Stainless Steel
- Finish: Gray Titanium Anodize
- Port Diameter: 1.1 inches
- Mounting System: Patented Hellfire Self-Timing Mount
- Added Length: Approx. 1.9 inches to barrel OAL (2.5 inches from thread shoulder)
- Country of Origin: Made in Ohio, USA
- Shipping Weight: 0.296 lbs
What’s Included
- Hellfire-Ti titanium muzzle brake body
- Stainless steel collar
- 5/8-24 universal thread adapter
Frequently Asked Questions
Will the Hellfire-Ti work on my 50 BMG?
No, the Hellfire-Ti is not rated for 50 BMG. The .50 caliber option covers cartridges up to and including rounds like 458 SOCOM, 45-70, 450 Bushmaster, and 50 Beowulf. If you're running anything smaller, this brake has you covered, but 50 BMG needs a purpose-built device.
Do I need a gunsmith to install the Hellfire-Ti?
Not at all. The self-timing design is the whole point here. You torque the universal adapter onto your 5/8-24 threaded muzzle once, then the brake clocks itself perfectly straight when you tighten the collar down. No crush washers, no shims, and no lathe time indexing threads.
How much lighter is the titanium Hellfire-Ti compared to the original Hellfire?
The Grade 5 titanium construction makes a real difference on the muzzle. In the .30 cal size, the brake body and collar come in around 2.8 ounces, which is roughly 30 percent lighter than the original stainless Hellfire. That keeps your barrel balance closer to how the rifle handled before adding a brake.
Can I swap between the Hellfire-Ti brake and a suppressor?
Yes, that modularity is one of the strengths of the Hellfire system. The universal adapter that mounts to your barrel is compatible with Area 419's suppressor mounts and other Hellfire devices, so you can go back and forth between a brake and a can. Return to zero is reliable, so swapping shouldn't cost you your point of impact.
