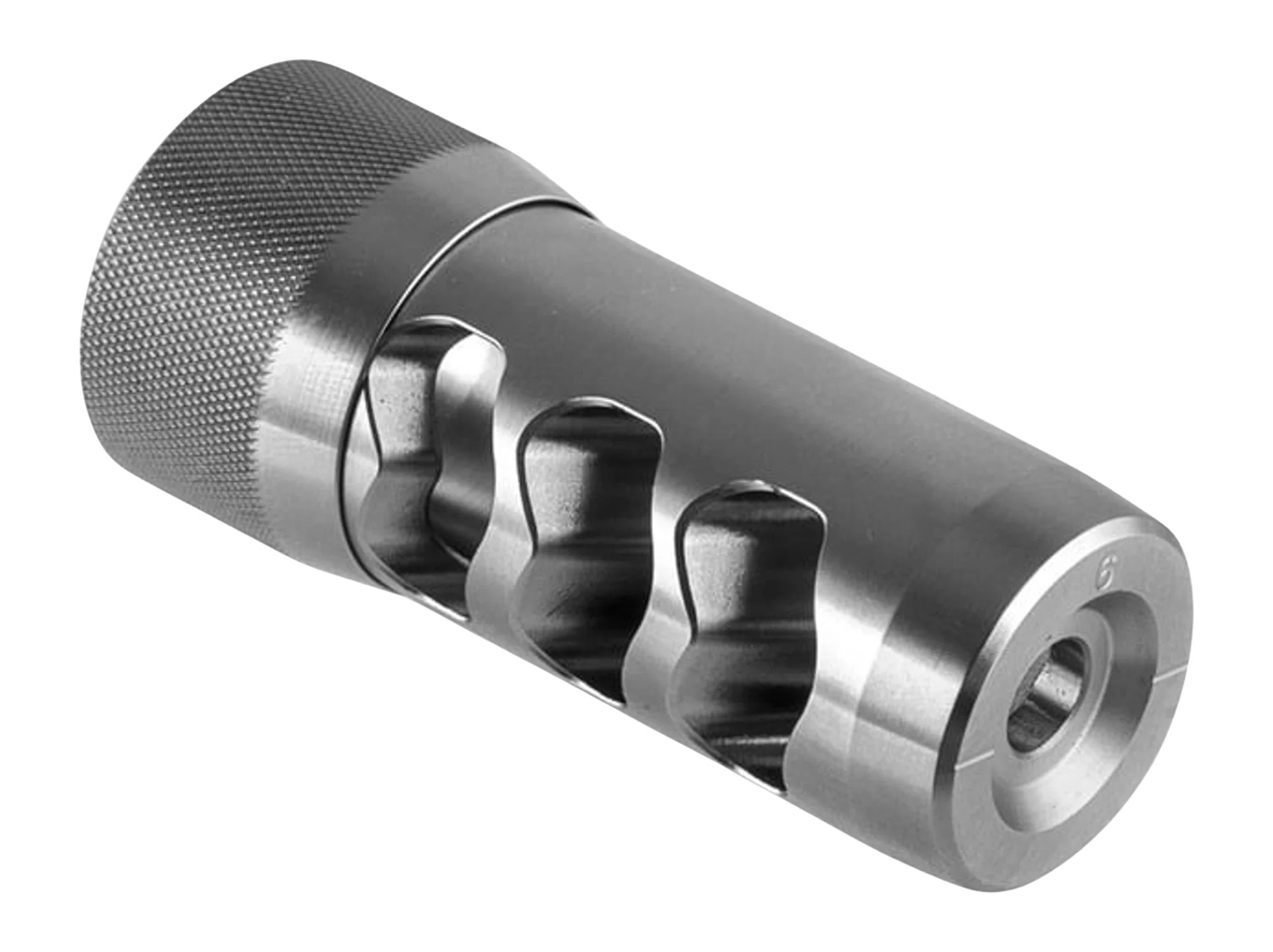

Area 419 Hellfire Self-Timing Muzzle Brake – 223/6mm, 1/2-28 SS

UPC: 810080180192

$172.99

4 in stock

Online inventory may differ from in-store availability.

Fast Shipping

Quick turnaround so you get your gear sooner.

Secure FFL-Friendly Checkout

Trusted checkout with industry-standard protection.

Family-Owned Business

Keeping Traditions Alive Since 1953

Secure Transactions provided with

Description

The Area 419 Hellfire Self-Timing Muzzle Brake is one of the most respected brakes in the precision game, and this version is bored for 223/6mm calibers with a 1/2-28 thread. It covers anything up to and including .243 (6mm), so you're set for .223, 5.56 NATO, .204, .17 and similar rounds. The whole point of the Hellfire is recoil you can manage and follow-through you can watch. Area 419 tested it side by side against the top brakes on the market and measured a 52% recoil reduction on a 6.5 Creedmoor test rifle, and its proprietary port design reins in muzzle rise without relying on top porting that blasts gas back at your face.

How the Hellfire Self-Timing System Works

This is a two-piece setup built around a universal adapter. You torque the tapered adapter onto your muzzle with a 5/8-inch wrench and leave it there for good. Then you left-hand thread the brake and collar assembly on, rotate the brake until it's level, push it into the adapter so it locks onto the taper, and hand-tighten the collar. The brake will not spin as you snug down the collar, so there's no guessing where the ports end up. No shims, no crush washers, no timing headaches.

Return to Zero and Swapping the 419HF-SS on the Fly

That taper interface is the same trick a machine tool spindle uses, which is why the return to zero is so good. Pull the brake off to clean it or run a suppressor, put it back on, and your point of impact holds. Because the adapter stays put, you can also grab extra Hellfire adapters for other rifles or add a suppressor mount and jump between muzzle devices in seconds.

Build Quality on the Raw Stainless 419HF-SS

The brake is machined from heat-treated 17-4PH stainless steel and left in a raw stainless finish, with the caliber engraved on the face to mark the top plus a horizontal line to help you level it. The brake body runs about 1 inch OD and the collar about 1.1 inches. It's made in NW Ohio, and the fit and finish is exactly what folks have come to expect from Area 419. One tip on the raw stainless: it can hold carbon a little more than a nitride finish, so a soak in a good carbon cleaner every time you scrub the barrel keeps it looking and working right.

Key Specifications

  • Manufacturer: Area 419
  • Manufacturer Part Number: 419HF-SS-6MM-1228
  • UPC: 810080180192
  • Model: Hellfire Self-Timing Muzzle Brake
  • Caliber Range: 223/6mm (up to .243 / 6mm)
  • Thread Pitch: 1/2-28
  • Material: Heat-treated 17-4PH stainless steel
  • Finish: Raw stainless
  • Timing System: Self-timing collar, no tools required
  • Brake Body OD: Approx. 1 inch
  • Collar OD: Approx. 1.1 inches
  • Recoil Reduction: ~52% (6.5 Creedmoor test rifle)
  • Country of Origin: USA (NW Ohio)

What’s Included

  • Area 419 Hellfire self-timing muzzle brake (223/6mm, raw stainless)
  • One Hellfire universal adapter (1/2-28 thread pitch)
  • Self-timing collar

Frequently Asked Questions

What calibers will the 223/6mm Hellfire brake work with?

This brake is bored for anything up to and including .243 (6mm). That covers .223, 5.56 NATO, .204, .17 cal and similar cartridges. If you're running a bigger bore, Area 419 offers the Hellfire in 6.5mm, 7mm/308 and 338 versions.

Does the Area 419 Hellfire come with the adapter I need?

Yes. Each brake ships with one universal adapter, and this SKU is the 1/2-28 thread pitch. You only need to buy extra adapters if you want to run the same brake or a suppressor mount across multiple rifles.

Do I need special tools to time and install this brake?

No timing tools, shims, or crush washers required. You torque the adapter onto your barrel with a 5/8-inch wrench, then thread on the brake and collar, level the ports, lock it onto the taper, and hand-tighten the collar. The brake won't rotate as you snug it down, so the ports land exactly where you set them.

Will the point of impact shift if I remove the brake?

The Hellfire is built on a tapered adapter interface, so its return to zero is excellent. You can pull the brake to clean it or swap to a suppressor and reinstall without chasing your zero again. Just keep the adapter torqued in place and you're good.
