Description

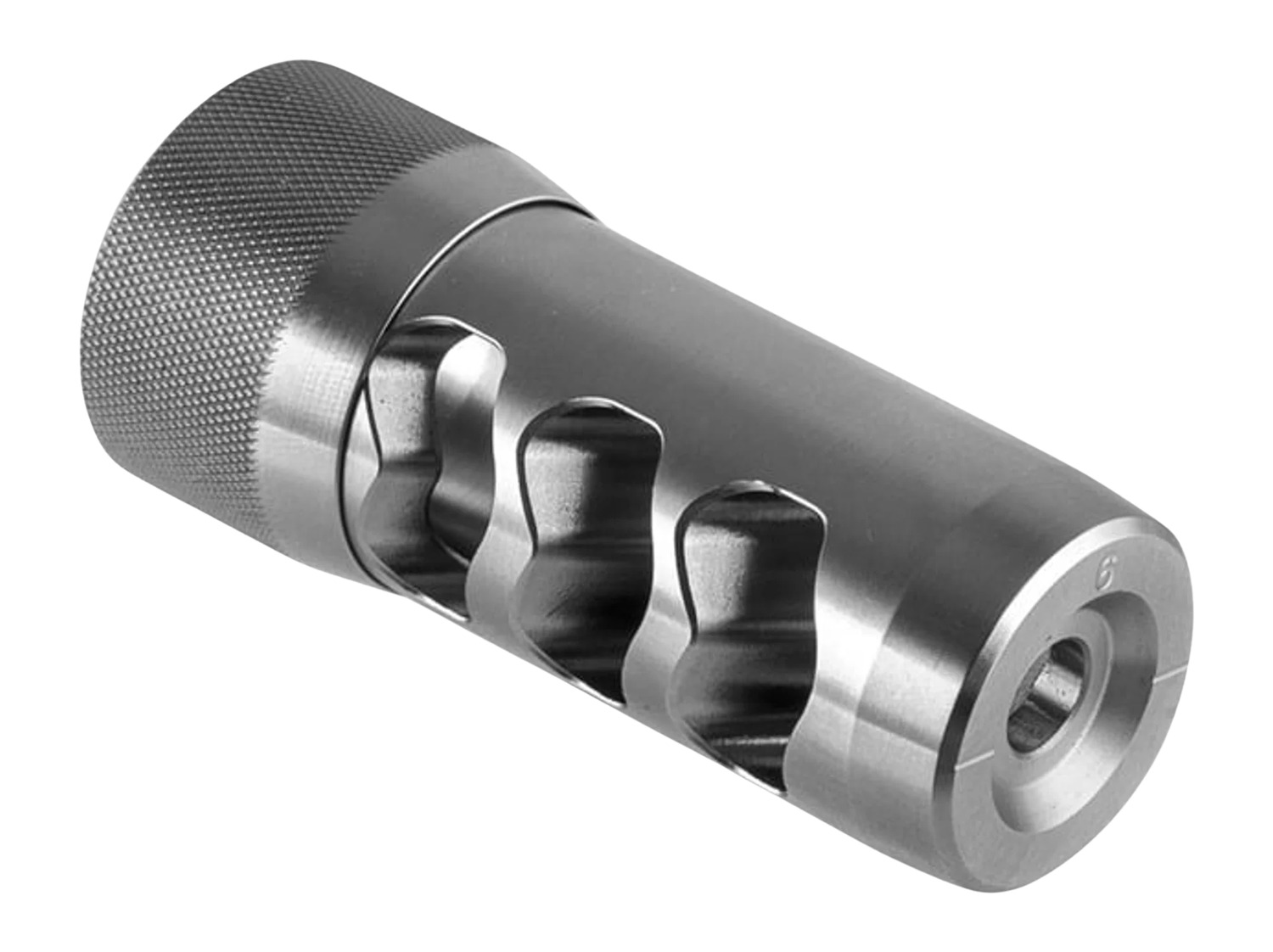

Area 419 built the Hellfire to solve the two things every precision shooter fights: felt recoil and losing the target under the shot. This is the original 7mm/30cal bore version in raw stainless with a 5/8-24 thread, and it stays on target so well you can watch your own hits land. The rearward-facing port design pulls the muzzle back into your shoulder rather than fighting it, and Area 419 has published independent testing showing the Hellfire delivering around 52 percent recoil reduction on a 6.5 Creedmoor test rifle. That kind of drop turns a stout magnum into something you can shoot all day and still spot impacts.
Why the Hellfire Self-Timing Collar Changes Install Day
Most brakes make you fuss with shims or crush washers to get the ports level. The Hellfire skips all that with a separate knurled collar that times the brake by hand. You torque the universal adapter onto your barrel with a 5/8 wrench and leave it there, thread the brake body on, rotate it until it is level, then snug the collar down with your fingers. No tools to time it, and the brake will not spin out of position as you lock it. Pull it off and reinstall it later and your zero comes right back, which makes it easy to move between a suppressor mount and the bare brake.
Where This 30 Caliber Hellfire Fits Your Rifle
The 7mm/30cal bore covers any bullet up to and including .308 diameter, so it works for .308 Win, 7mm magnums, .284, .270 and similar chamberings. The face is engraved with the caliber and a leveling line so you always know which way is up. This one ships in raw stainless, which is a great match for a stainless barrel or a bench gun.
Fit and finish is where Area 419 earns its reputation. These run on their patented Hellfire modular system and share the same universal adapters across their Hellfire, Hellfire 2P and suppressor mount lineup, so it plays nicely with the rest of the family down the road.
Key Specifications
- Manufacturer: Area 419
- Manufacturer Part Number: 419HF-SS-30-5824
- UPC: 810080180086
- Model: Hellfire Self-Timing Muzzle Brake
- Bore / Caliber: 7mm / 30 Cal (up to .308 diameter)
- Thread Pitch: 5/8-24
- Finish: Raw Stainless
- Port Design: 3-Port, rearward facing
- Timing: Self-timing collar, no shims required
- Tested Recoil Reduction: ~52% (6.5 Creedmoor test rifle)
- Return to Zero: Yes, after removal and reinstall
- Country of Origin: Made in USA (NW Ohio)
What’s Included
- Hellfire Self-Timing Muzzle Brake body (30 cal, raw stainless)
- Self-timing collar
- One Hellfire Universal Adapter (5/8-24, black nitride)
Frequently Asked Questions
Does the Area 419 Hellfire brake come with the adapter I need?
Yes. Each Hellfire purchased in this configuration includes one universal adapter, and this SKU is the 5/8-24 thread pitch. The adapter torques onto your barrel and stays there while the brake times to it, so you have everything needed to mount it to a compatible 5/8-24 muzzle.
What calibers will this 30 cal Hellfire work with?
The 7mm/30cal bore handles any bullet up to and including .308 diameter. That covers .308 Win, .30 caliber magnums, 7mm magnums, .284, .270 and similar chamberings. Running the slightly larger bore over your exact caliber has a negligible effect on efficiency, which is why Area 419 groups them this way.
Do I need shims or tools to time the Hellfire brake?
No shims and no timing tools required. The independent knurled collar lets you level the brake and lock it in place by hand, and the brake will not rotate out of position as you tighten. That is the main advantage of the self-timing design over traditional brakes.
Will my zero change if I remove and reinstall the brake?
Return to zero is one of the strengths of this system. Because the adapter stays torqued to the barrel and the brake locks onto a precision taper, you can pull the brake and put it back on without a meaningful shift in point of impact. That makes it convenient if you swap between the brake and a suppressor setup.
