Description
The Area 419 Arcalock QD Clamp takes the proven Arcalock system and adds a quick-detach lever that changes how fast you can get your bipod or tripod on and off the gun. Instead of spinning a knob every time, you flip a stainless steel lever and you are locked in. Area 419 has been building the Arcalock standard since 2018, and this QD version carries that same reputation for solid, repeatable lockup between the rifle and your support gear.
What the Area 419 Arcalock QD Clamp Lever Actually Does

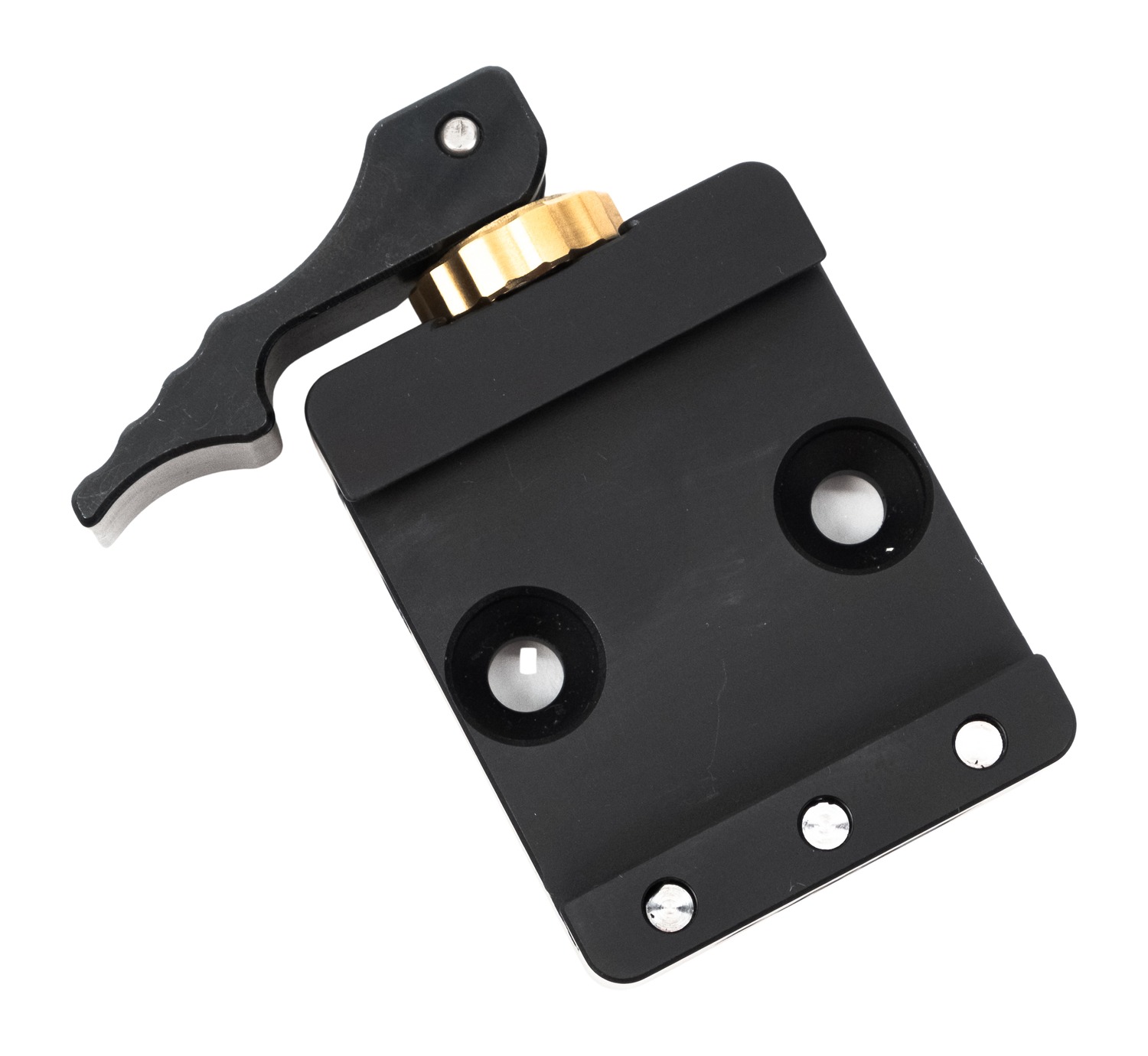

The heart of this clamp is a 3-position reversible lever arm milled from stainless steel. You can set it to clamped for a dead-solid lockup, sliding for quick position adjustments along the rail, or fall-off when you want to pull your accessory free in a hurry. Because the lever is reversible, you can orient it to whichever side works best for your setup and the way you run your gun. A steel adjustment knob backs up the lever and is built to hold tension through years of hard range and field use.
Rail Compatibility and Mounting Footprint
On Area 419 Arcalock rails, the clamp locks mechanically into the milled detents, so there is no reliance on friction alone and no creep under recoil. Pull the two Arcalock pins and the clamp drops right onto any standard ARCA or 1.5 inch dovetail rail, where it still gives you infinite sliding adjustment. The clamp uses the 17S mounting footprint, so it works with a wide range of popular gear including Atlas and Thunderbeast products, Two Vets tripods, and Harris bipod adapter kits.
Built in the USA for Precision Setups
This Arcalock QD Clamp is 100 percent made in America with a precision-machined aluminum body, stainless lever, and steel knob. Owners consistently point to the quality of the machining and the confidence of a clamp that will not slip once it is locked on an Arcalock rail. One thing worth knowing up front: it is not compatible with the RCX Gen 2 because the lever cannot fully actuate on that unit.
Key Specifications
- Manufacturer: Area 419
- Manufacturer Part Number: 419-ALK-QD
- UPC: 810080182080
- Lever: 3-position reversible, stainless steel (clamped, sliding, fall-off)
- Adjustment Knob: Steel
- Body Material: Precision-machined aluminum
- Mounting Footprint: 17S
- Rail Compatibility: Arcalock rails, standard ARCA, 1.5" dovetail
- Arcalock Pins: Removable for standard ARCA use
- Color: Black anodized
- Country of Origin: Made in USA
- Shipping Weight: 0.36 lbs
What’s Included
- Area 419 Arcalock QD Clamp
- Torx key
Frequently Asked Questions
What are the three positions on the Arcalock QD Clamp lever?
The reversible stainless steel lever gives you clamped, sliding, and fall-off modes. Clamped locks your accessory down solid, sliding lets you move it along the rail for quick positioning, and fall-off releases it completely for fast removal. Being reversible, you can set the lever on whichever side suits your setup.
Will the Area 419 Arcalock QD Clamp work on standard ARCA rails?
Yes. Out of the box it locks mechanically into Area 419 Arcalock rails using the pins, but you can remove the two Arcalock pins to run it on any standard ARCA or 1.5 inch dovetail rail. In that configuration it still gives you infinite sliding adjustment.
What accessories is the clamp compatible with?
The clamp uses the 17S mounting footprint, so it works with a lot of popular precision gear including Atlas and Thunderbeast products, Two Vets tripods, and Harris bipod adapter kits. One exception worth noting is that it is not compatible with the RCX Gen 2, since the lever cannot fully actuate on that unit.
Does the Arcalock QD Clamp come with mounting hardware?
The clamp ships with a torx key for installation. Mounting hardware for specific bipods or tripods is not included, so depending on your setup you may need the factory hardware for your Atlas bipod or a separate adapter for Harris or Picatinny-mounted gear.
