Description

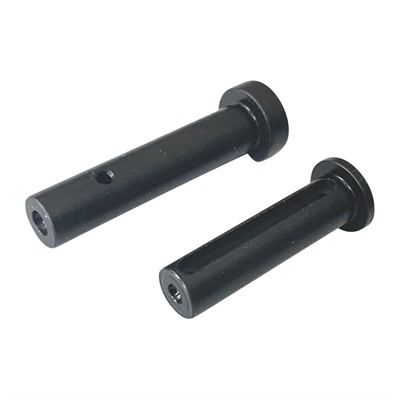

The HF-601 is what happens when two of the most respected names in the AR world put their heads together. It's a collaboration between Hodge Defense Systems and Forward Controls Design, built off FCD's proven PF-040 pins with Jim Hodge's input on exactly what he wanted running on HDSI rifles. The result is a take down and pivot pin set that pulls styling cues from the original Colt 601 while keeping everything dialed in for a modern receiver set.
These pins are machined from 17-4 stainless steel on Swiss machines, held to very tight tolerances, and finished in black nitride for durability and corrosion resistance. The pin diameter sticks to TDP dimensions and tolerances at 0.2485 +0.000/-0.005, so you get the fit you expect in a quality mil-spec lower without any surprises.
What Sets the HF-601 Apart
The standout feature is the extra length. Each pin runs 0.040" longer than standard TDP take down and pivot pins, which gives you noticeably more surface area to grab and push. If you've ever fought a tight receiver set, worked on your rifle with gloves on, or tried to break down a lower in cold weather, that little bit of extra reach makes a real difference. The design faithfully reproduces the Colt 601 cues too, including dimples on both sides of the take down pin and the left side of the pivot pin, right down to the slight ring on the take down pin tip.
Fitting the HF-601 to Your Build
These drop into standard AR-15 and M16 lowers and use your existing detents and springs. Forward Controls does offer an optional detents and springs kit separately, which is a smart grab if you tend to launch a detent across the shop during assembly. Between the finish, the fit, and the thoughtful nod to AR history, the HF-601 is one of those small upgrades that punches well above its size on a serious build.
Key Specifications
- Manufacturer: Forward Controls Design
- Collaboration: Hodge Defense Systems / Forward Controls Design
- Manufacturer Part Number: HF-601
- UPC: 697566711077
- Platform: AR-15 / M16
- Material: 17-4 Stainless Steel
- Finish: Black Nitride
- Pin Diameter: 0.2485" +0.000/-0.005 (TDP spec)
- Extra Length: 0.040" longer than TDP spec
- Styling: Colt 601 inspired dimples and take down pin tip ring
- Pieces: Take down pin and pivot pin
What’s Included
- 1x HF-601 take down pin
- 1x HF-601 pivot pin
Frequently Asked Questions
Do the HF-601 pins come with detents and springs?
No, the standard HF-601 set includes just the take down pin and the pivot pin. Forward Controls offers an optional detents and springs kit separately that includes four detents and three springs. It's worth adding if you want spares on hand, since detents are easy to lose and springs can get bent during assembly.
Will the HF-601 pins fit a standard AR-15 lower?
Yes. The pin diameter holds to TDP dimensions and tolerances at 0.2485 +0.000/-0.005, so they drop into a quality mil-spec AR-15 or M16 lower. The 0.040" of extra length is on the exposed pin head, so it doesn't interfere with fitment inside the receiver.
What's the point of the extended length on the HF-601?
The extra 0.040" gives you more surface area to grip and push the pins out. That translates to easier takedown on tight receiver sets, with gloves on, or in cold weather. It's a small change that makes breaking down and reassembling your rifle noticeably smoother.
What makes the HF-601 different from the FCD PF-040?
The HF-601 is based on the PF-040 and shares the same 17-4 stainless construction, black nitride finish, and 0.040" extra length. The difference is the HF-601 was developed with Jim Hodge for HDSI rifles and carries Colt 601 styling cues, including the dimple pattern and the slight ring on the take down pin tip.
