Forward Controls Design GPT AR-15/M16 Gas Tube Pin Tool

UPC: 686162347865

$36.99

52 in stock

Online inventory may differ from in-store availability.

Fast Shipping

Quick turnaround so you get your gear sooner.

Secure FFL-Friendly Checkout

Trusted checkout with industry-standard protection.

Family-Owned Business

Keeping Traditions Alive Since 1953

Secure Transactions provided with

Description

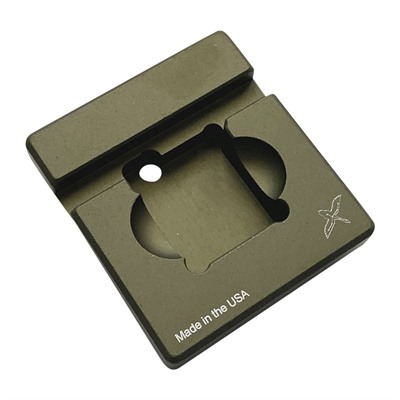

Anyone who has tried to drive a gas tube roll pin into a low profile gas block knows the drill: the block has no flats to grip, the pin is tiny, and you suddenly wish you had a third hand. The Forward Controls Design GPT (Gas Tube Pin Tool) was built specifically to solve that headache. It's a purpose-made jig that cradles the gas block and keeps everything aligned so you can start and seat the roll pin without the whole thing sliding around your bench.

The GPT is machined from 6061 aluminum and finished in Type III hard coat anodizing, so it holds up to repeated use and the occasional errant hammer tap. The base is thick and wide for stability, and it's rebated so you can clamp it down in a vise for a rock-solid setup. Little details make a difference here too, from the scalloped finger access recess to the rounded corners and edges. Drop a small neodymium magnet on the gas block and it'll stand the roll pin upright right over the hole, freeing up a hand so you can hold the block and start tapping.

What the GPT Gas Tube Pin Tool Fits

This jig is dimensioned around Crane Mk12 pattern low profile gas blocks, which run about 1 inch in length. It plays nice with most blocks built to that original Crane spec, including Modern Armory, Forward Controls' own GBF, BCM, Rainier, VLTOR, Knight's Armament, Badger Ordnance, Daniel Defense, and SLR. It's worth measuring your block before ordering, since maximum supported length is around 1.10 inches and max height around 1.35 inches. Aero, Luth-AR, DPMS, and adjustable gas blocks are known to not fit.

Why This Tool Belongs on Your Bench

If you build or work on ARs, the gas tube pin is one of those small jobs that punches above its weight in frustration. The GPT turns it into a quick, repeatable task, and it works just as well for removing a stubborn pin as it does for installing a fresh one. It's a collaboration between Modern Armory and Forward Controls Design, and the fit and finish reflect that pedigree.

Key Specifications

  • Manufacturer: Forward Controls Design
  • Manufacturer Part Number: GPT
  • UPC: 686162347865
  • Material: 6061 Aluminum
  • Finish: Type III Hard Coat Anodized
  • Platform: AR-15 / M16
  • Designed For: Crane Mk12 pattern low profile gas blocks (~1 in)
  • Max Gas Block Length: 1.10 in
  • Max Gas Block Height: 1.35 in
  • Function: Gas tube roll pin install and removal
  • Vise Compatible: Yes, rebated base

What’s Included

  • Forward Controls Design GPT Gas Tube Pin Tool

Frequently Asked Questions

What does the GPT gas tube pin tool actually do?

It's a jig that holds your low profile gas block steady and aligns the gas tube roll pin so you can install or remove it. Because low profile gas blocks have no flat surfaces, they're tough to hold while tapping in the tiny pin. The GPT cradles the block and lets you do the whole job with one hand on the block and one on the punch.

Will the GPT work with my gas block?

It's designed for Crane Mk12 pattern low profile gas blocks, roughly 1 inch long, and works with most blocks built to that spec including BCM, Rainier, VLTOR, Knight's Armament, Badger Ordnance, Daniel Defense, SLR, Modern Armory, and Forward Controls' own GBF. Measure yours first, since the tool supports up to about 1.10 inches in length and 1.35 inches in height. Aero, Luth-AR, DPMS, and adjustable gas blocks are known to not fit.

Do I need a magnet to use the gas tube pin tool?

A small neodymium magnet isn't required, but it makes the job noticeably easier. Set it on the gas block and it'll stand the roll pin upright right over the pin hole, freeing up a hand. From there you can hold the block in the GPT and start tapping the pin in.

Is the GPT built well enough to last?

It's machined from 6061 aluminum with a Type III hard coat anodized finish, so it stands up to repeated use and the occasional hammer slip. The base is thick and wide for stability and rebated so you can clamp it in a vise. It's built for repeat armorer work, not just a one-time build.

Additional information

UPC

686162347865

Manufacturer

Manufacturer Part Number

GPT
